540
5
AUXILIARY EQUIPMENT ON BOARD
Studio ti 03312 540-04usa
85

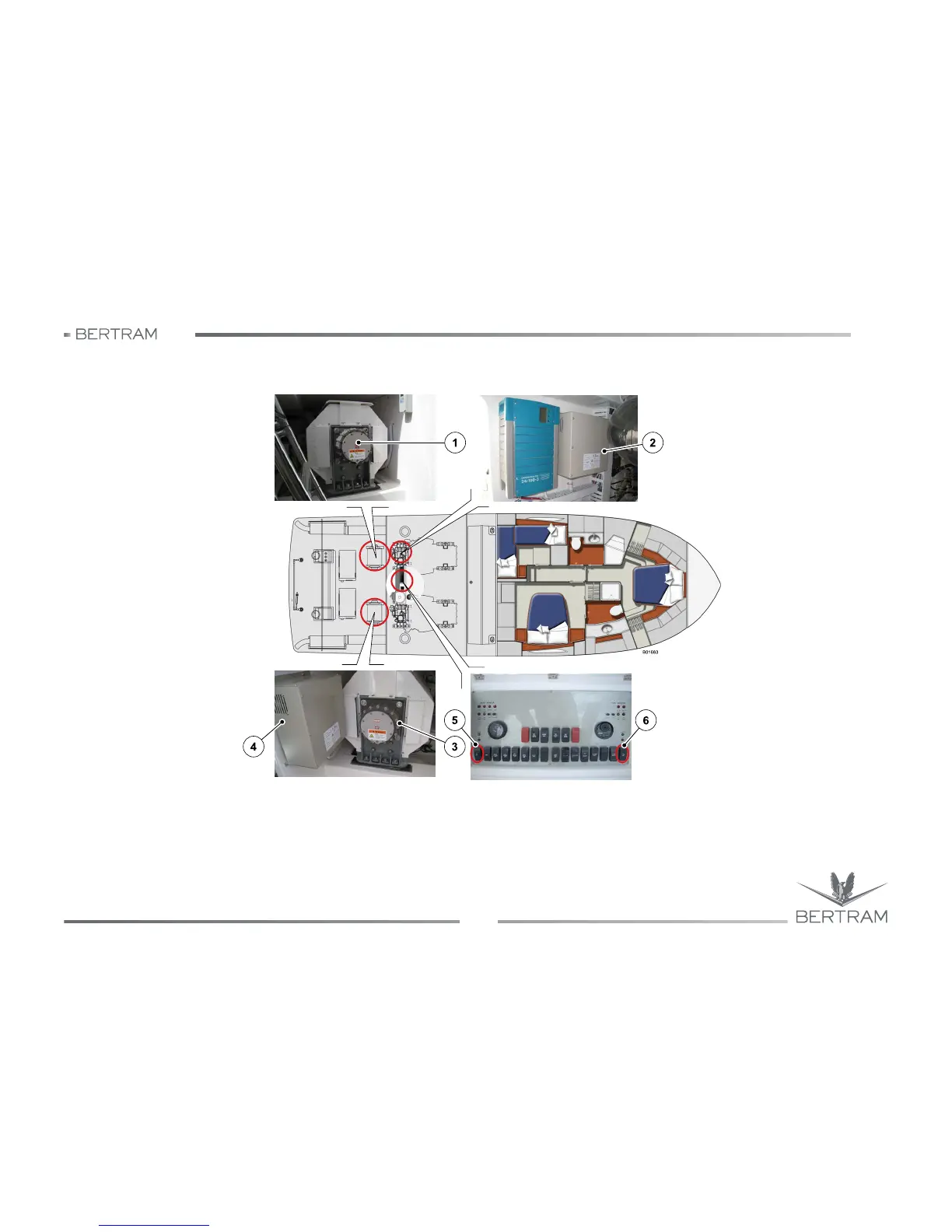

1. Port anti rolling gyro
2. Power unit for port anti rolling gyro
3. Starboard anti rolling gyro
4. Power unit of starboard anti rolling gyro
5. Port stabilizer controls in the helm station
6. Starboard stabilizer controls in the helm station
Anti rolling gyro controlsStarboard anti rolling gyro
Port anti rolling gyro Port ARG power unit
