Binder CB 160 - Page 19

CB (E6.1) 07/2017 Page 19/145

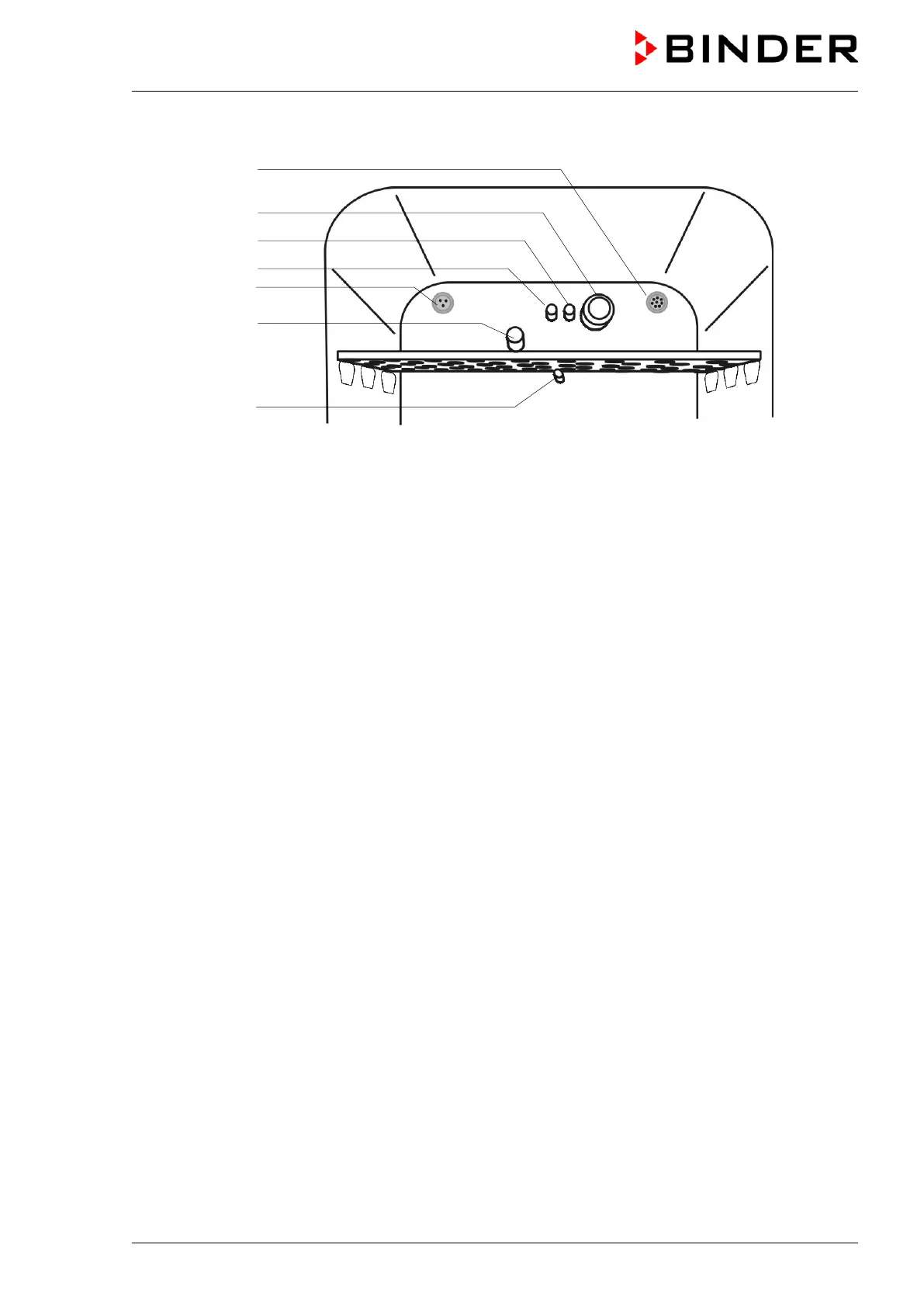

Figure 6: CB 160 / CB 220 with O
2
control and options
(A) Instrument panel with microprocessor controller T4.12, indicating temperature and CO
2
as well as
O
2
(chamber with O
2
control)”
(B) Connection socket for extra-low voltage supply (option, chap. 15.6)
(C) CO
2
sensor
(D) Gas mixing head CO
2
(D2) Additional gas mixing head O
2
/ N
2
(chamber with O
2
control)
(E) Pt 100 temperature probe
(F) O
2
sensor (chamber with O
2
control)
(G) Internal socket 230V (max. 3 A) (option, chap. 15.4)
(H) Perforated shelves, made of stainless steel
(I) Measuring access port
(J) Inner glass doors
(K) Permadry™ water pans
(L) Lower housing cover
(B)
(C)
(D)
(D2)
(G)
(F)
(E)
