To completely separate the chamber from the power supply, you must disconnect the power
plug. Install the chamber in a way that the power plug is easily accessible and can be easily
pulled in case of danger.
4.6 Handling and aligning the divided inner door, gas proof (optional
equipment)
Rubber profile gasket of
individual glass door of
the divided inner door
Hinge of the set-in
divided inner door, with
elongated holes to align
the inner door
Measuring access port

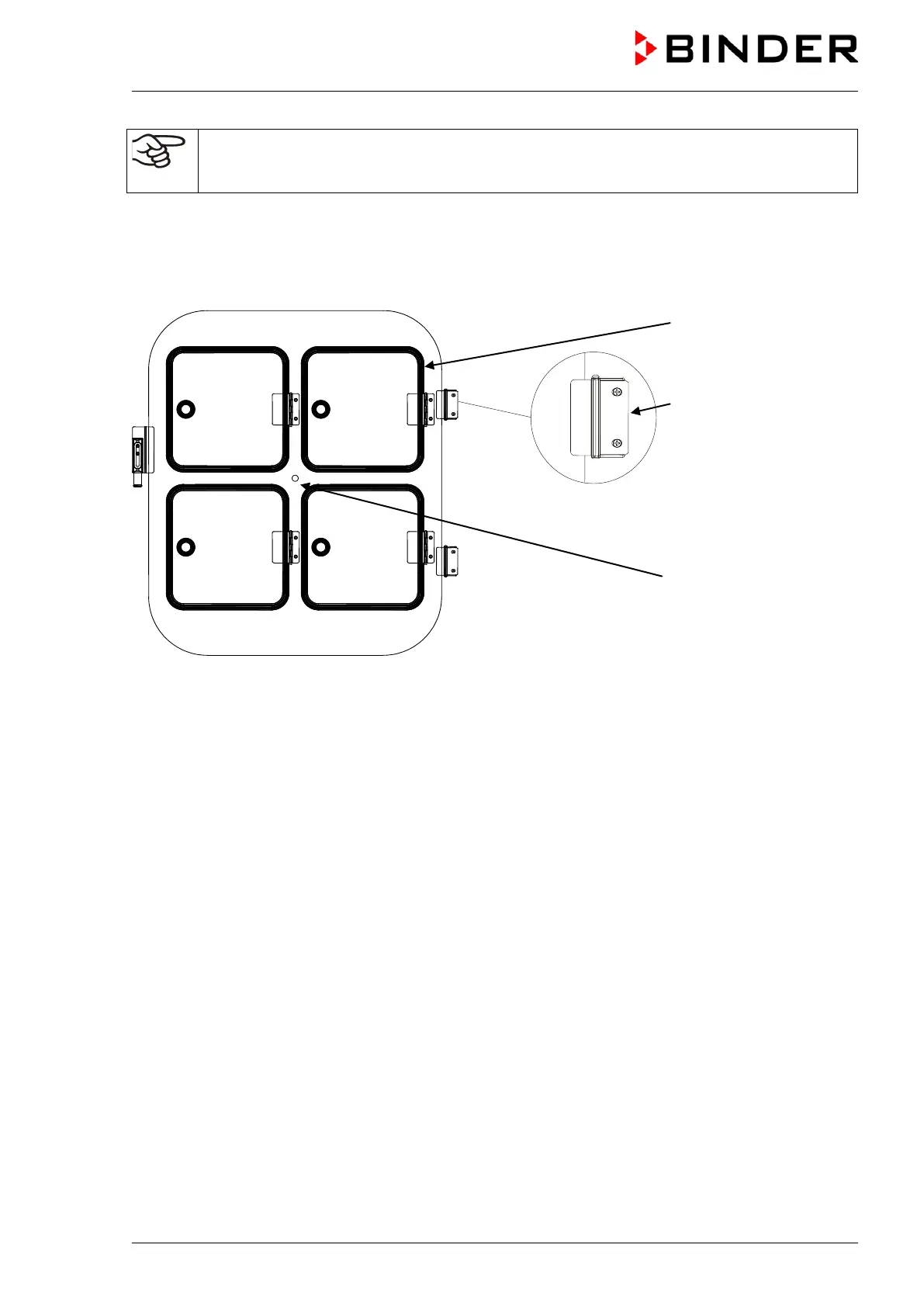

Figure 15: Divided inner door, gas proof, for CB 160
• Pull the handles to open each of the individual glass doors. Do not press too hard while closing them
to avoid pushing the doors through the gasket into the inner chamber.
• The rubber profile gaskets of the individual glass doors are easy to replace.
• If the divided inner door is not in an aligned position, fasten the hinge screws in the elongated holes of
the hinge to align it. Align the door and operate the locking smoothly.
