4. Installation and connections
4.1 Shelves
You can put the shelves in different positions at the line of channel beads in the inner chamber. Hold the
shelf straight and then insert it so it will go smoothly inside the chamber.
Permitted shelf loads:
Maximum load of one single shelf: 10 kg / 22 lb
Maximum total load of all shelves: 30 kg / 66 lb
4.2 Permadry™ water pan
The Permadry™ system developed by BINDER is an effective and easy to handle system that ensures
high humidity inside the chamber without any condensation forming on the inner surfaces. The
Permadry™ water pan consists of two pans in which the outer one is heated and the inner one cooled.
With the slight difference of temperature caused by that cooling, the central pan is the specific point for
condensation of the surplus humidity. Therefore, all other inner surfaces remain dry.
CB 60
CB 160 / CB 220

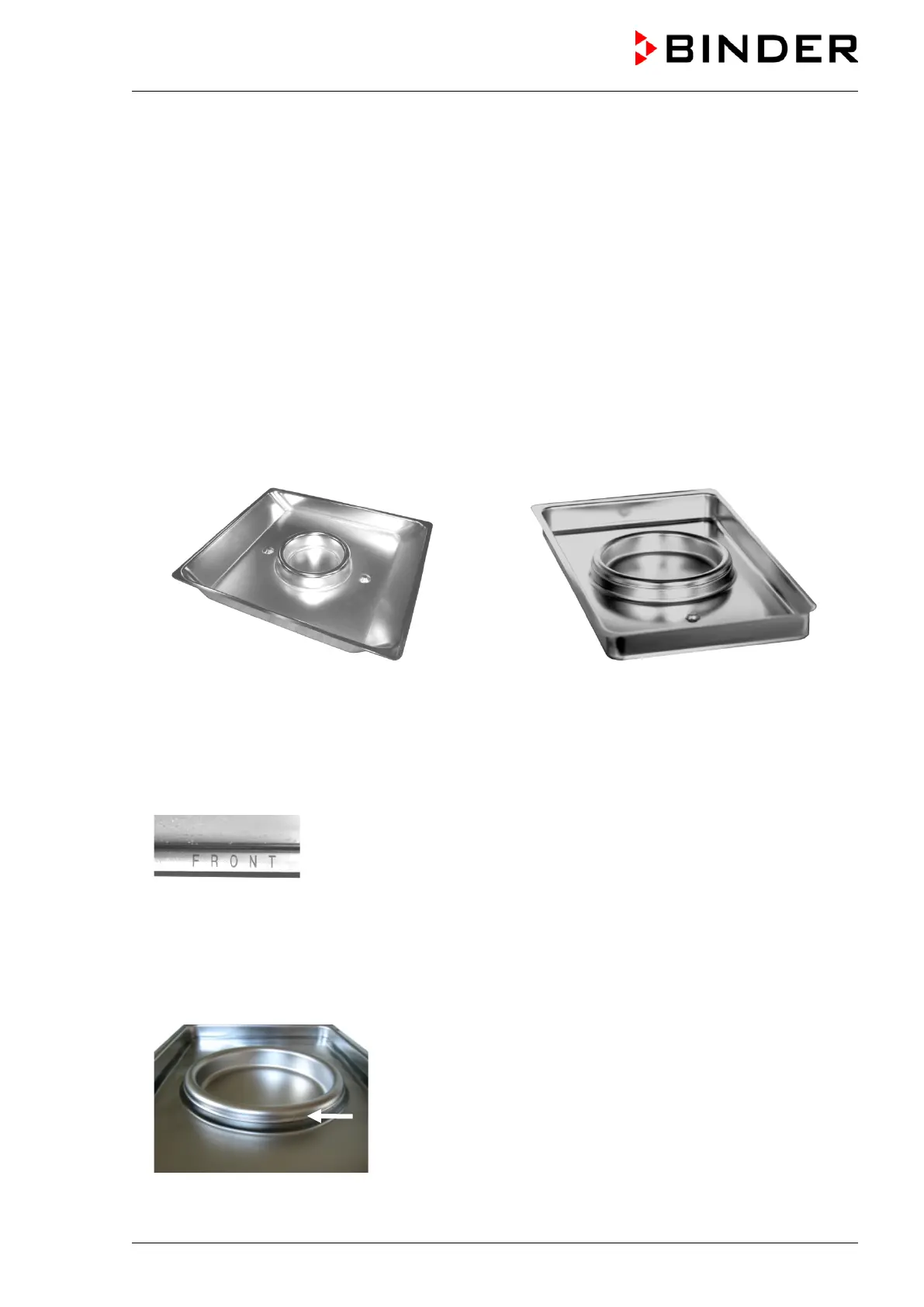

Figure 8: Permadry™ water pan
• Put the Permadry™ water pan on the bottom of the inner chamber in a way that both notches lock into
place.
• The front side of the Permadry™ water pan is marked “FRONT”.
Figure 9: Letters “FRONT” indicating the front of the Permadry™ water pan
• Please make sure that the Permadry™ water pan has firm contact to the inner chamber bottom and
rests tightly on it.
• Fill only the outer pan with distilled, sterilized water up to the filling level marking on the edge of the
inner pan.
Maximum filling quantity of the outer pan: CB 60: approx. 0.7 liters, CB 160 and CB220): approx.
2 liters.
Figure 10: Filling height line of the outer basin CB 160 / CB 220
