Press icon on the navigation bar.
Instructions on the further operating pro-
cedure appear on the touch screen.
Confirm removal of chain frame and
blade cleaning by pressing <Confirm/Ac-
cept>.
Confirm removal of blade from oil by
pressing <Confirm/Accept>.

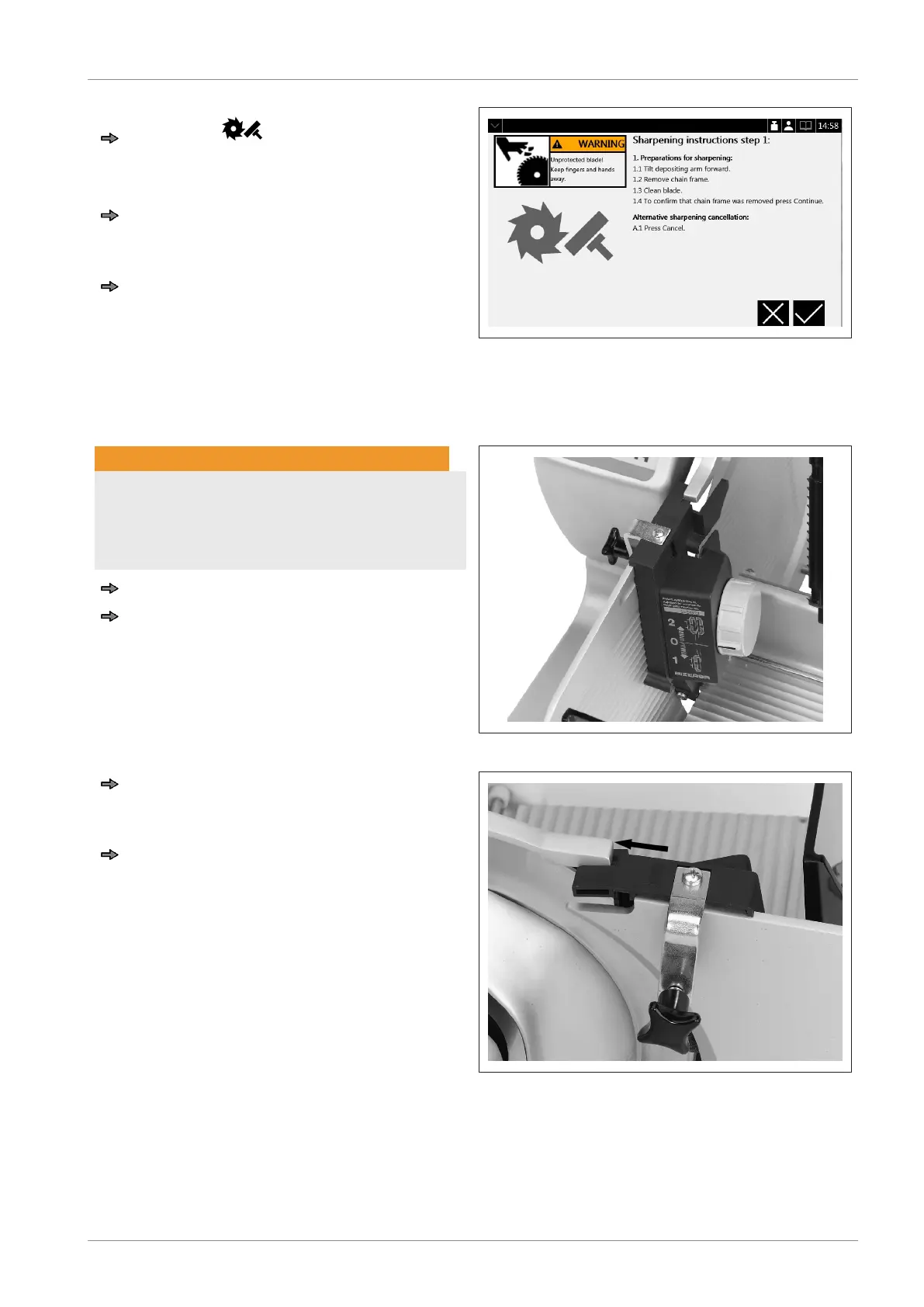

Fig.111: Instructions on the further operating
procedure
Attaching the sharpener
WARNING!Risk of injury on open blade.
- Blade is not running and gauge plate is
open.
- Set handwheel marking on sharpener to
"0".
Move carriage to relevant position.
Mount sharpener to gauge plate from the
top.
Fig.112: Attaching the sharpener
Push the sharpener and carriage to-
wards the blade until the adapter con-
tacts the front of the blade guard ring.
Keep the sharpener in this position and
use the star knob to screw it to the
gauge plate.
Fig.113: Clamping the sharpener
