Technical data
Instruction manual NSF VSI / VSI W / VSI T / VSI
TW
94 / 101 38065447002 en-US
9.3 Dimensions VSI T

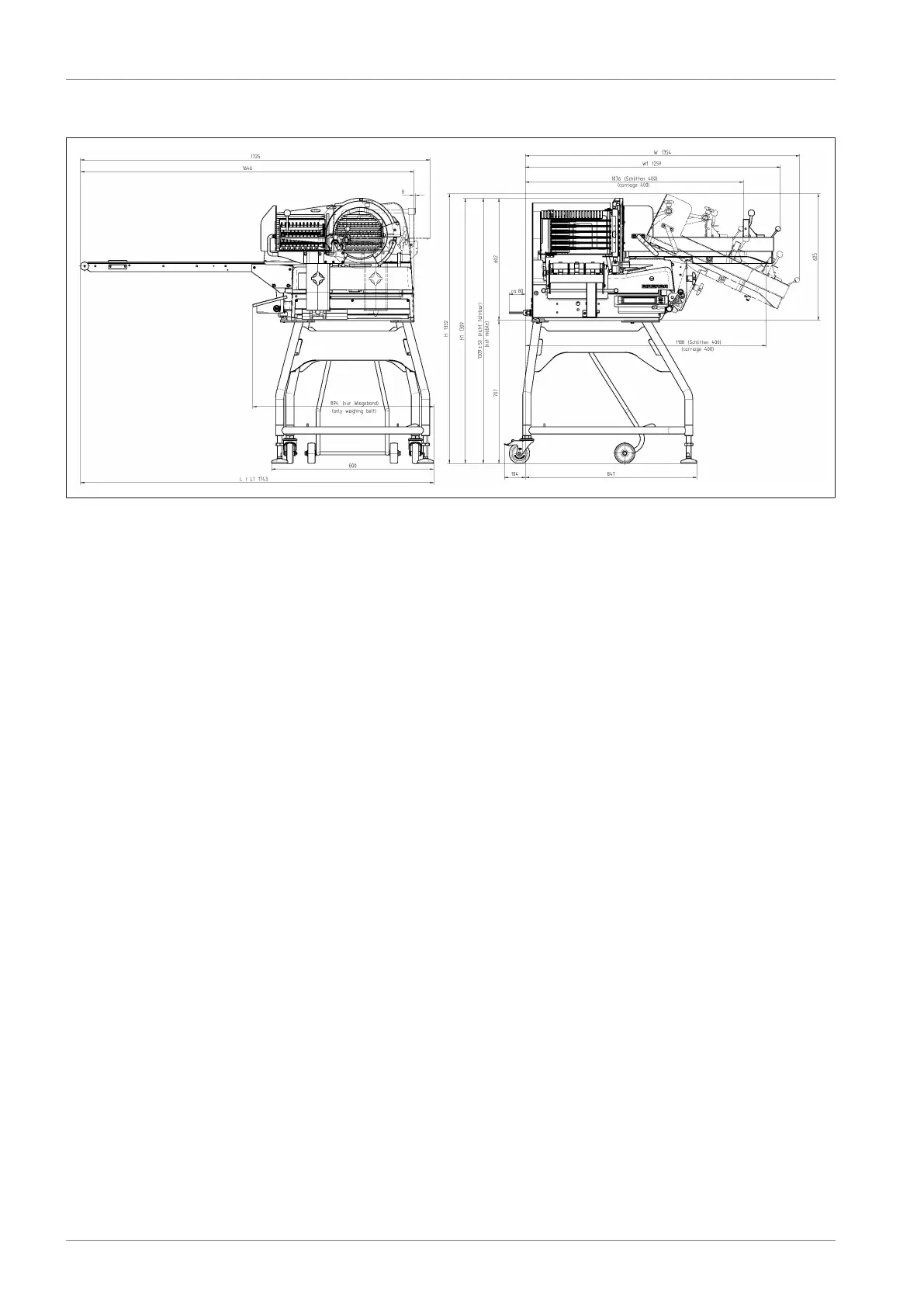

Fig.119: Dimensions VSI T
Outer dimensions:
Length L1 = 1727 mm = 68"
Width W1 = 1259 mm = 49.6"
Height H1 = 1302 mm = 51.3"
Installation surface:
Length L2 = 769 mm = 30.3"
Width W2 = 835 mm = 32.9"
Work area:
Length L = 1727 mm = 68"
Width W = 1354 mm = 53.3"
Blade diameter 330 mm = 13"
Conveyor belt, applicable
length
850 mm
Conveyor belt, applicable
width
250 mm
