47
2. Press button three times until EXTCTRL is blinking and
press .
3. Press button one time to select VOLTAGE and press .
4. Use the rotary knob to select EXT-V (external voltage) or EXT-R
(external resistance) option and press . To have front panel
control, select FRONT.
5. Use the keys to select PROG RNG (program range)
and press .
6. Now use the rotary knob to select between 10V/10K or 5V/5K
and press .
7. Press several times to exit the menu setting.
Voltage Mode
Under voltage mode, the user may control the full scale output voltage
value through Pin 9, by inputting a voltage level of 0-5 V (0-5 V / 0-5 kΩ
mode) or 0-10 V (0-10 V / 0-10 kΩ mode) as shown below.

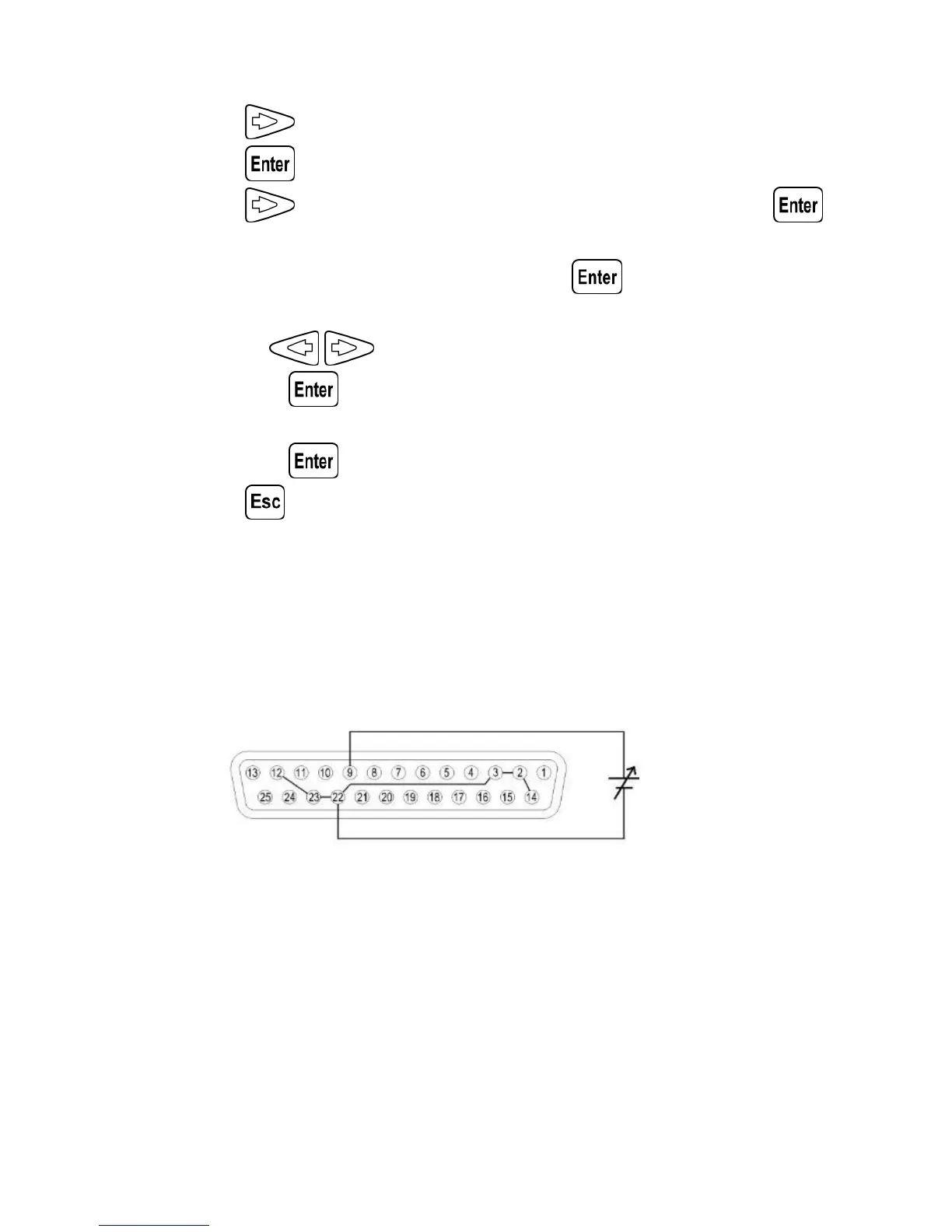

Figure 3.4 – Analog Voltage Programming Diagram (Voltage Mode)
Resistor Mode
Under resistor mode, the user may control the full scale voltage output
