Operation in working mode
102

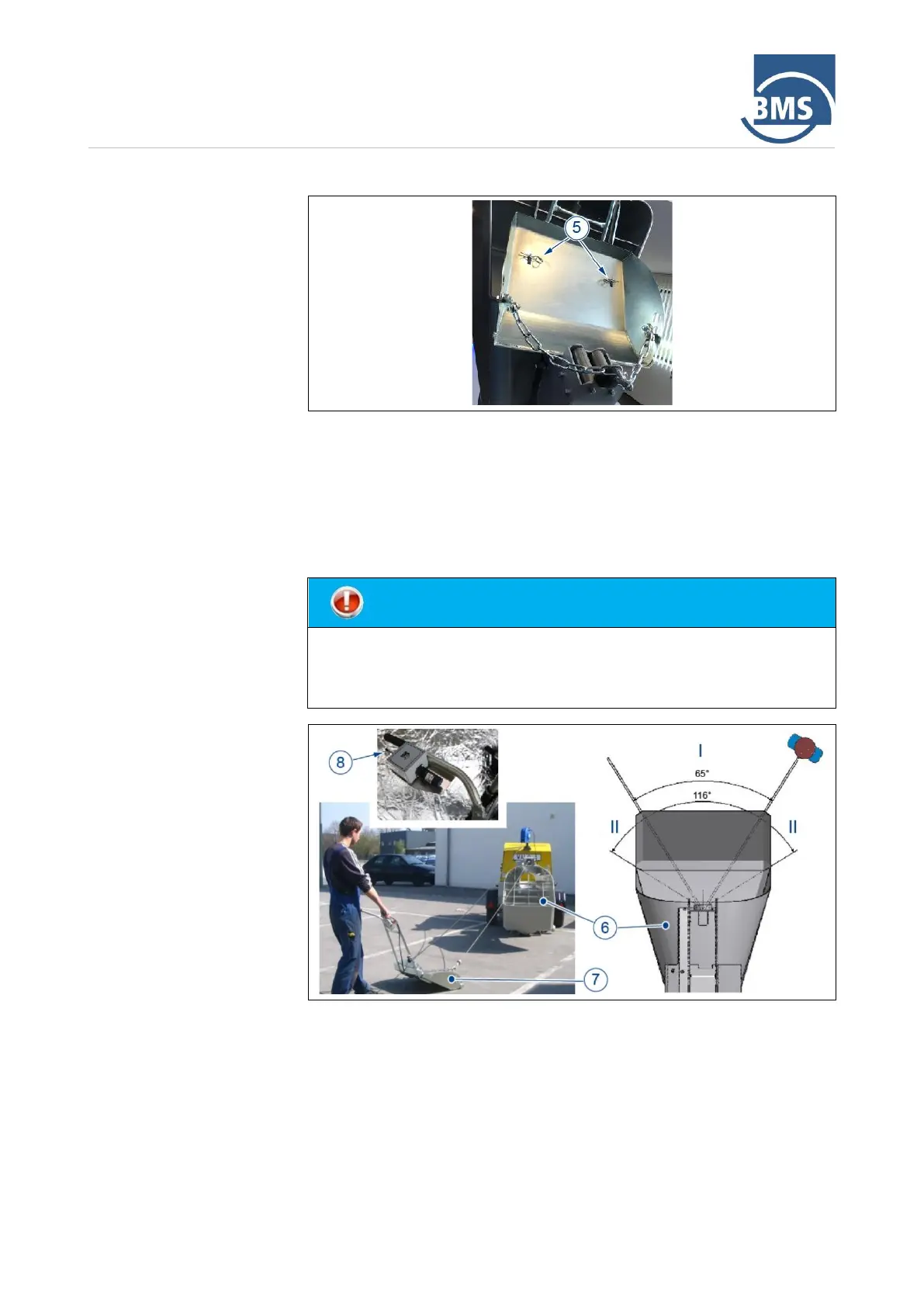

5. Release the spring cotter pin (5) on the scraper.
Figure 52: Removing the scraper shovel
6. Remove the scraper shovel from the holder of the feeder.
➢ Store the spring cotter pin in a safe place, as transport is not
permitted without securing.
7. Take the scraper shovel out of the shovel holder and place the shovel in
working position.
If the scraper is used to pull material that is outside the working area (I) in
area (II) of the scraper, there is increased rope wear.
The machine must be aligned with the sand or gravel pile.
Figure 53: Scraper working area
