3. Turn the support wheel (3) with the crank (2) down until the carriage
shaft (4) is parallel to the ground. The distance X is equal to the
distance Y.
➢ There are support wheel variants where you must first fold the support
wheel downwards over the support wheel latch.

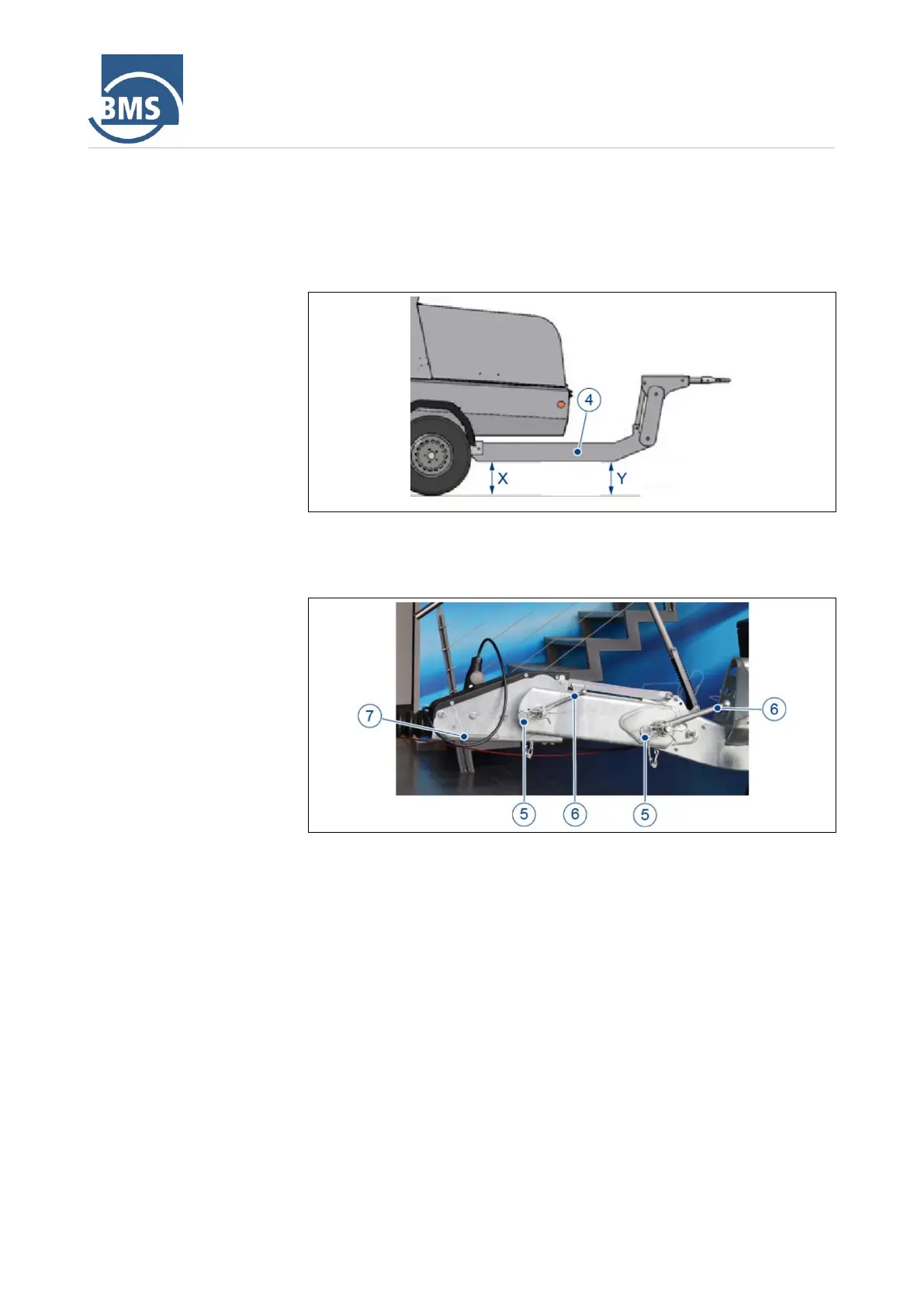

Figure 25: Aligning the carriage shaft
4. Pull out the spring cotter pins (5) by the locking levers (6).
Figure 26: Adjustable overrun device
5. Release the locking levers (6) and turn them all the way up.
