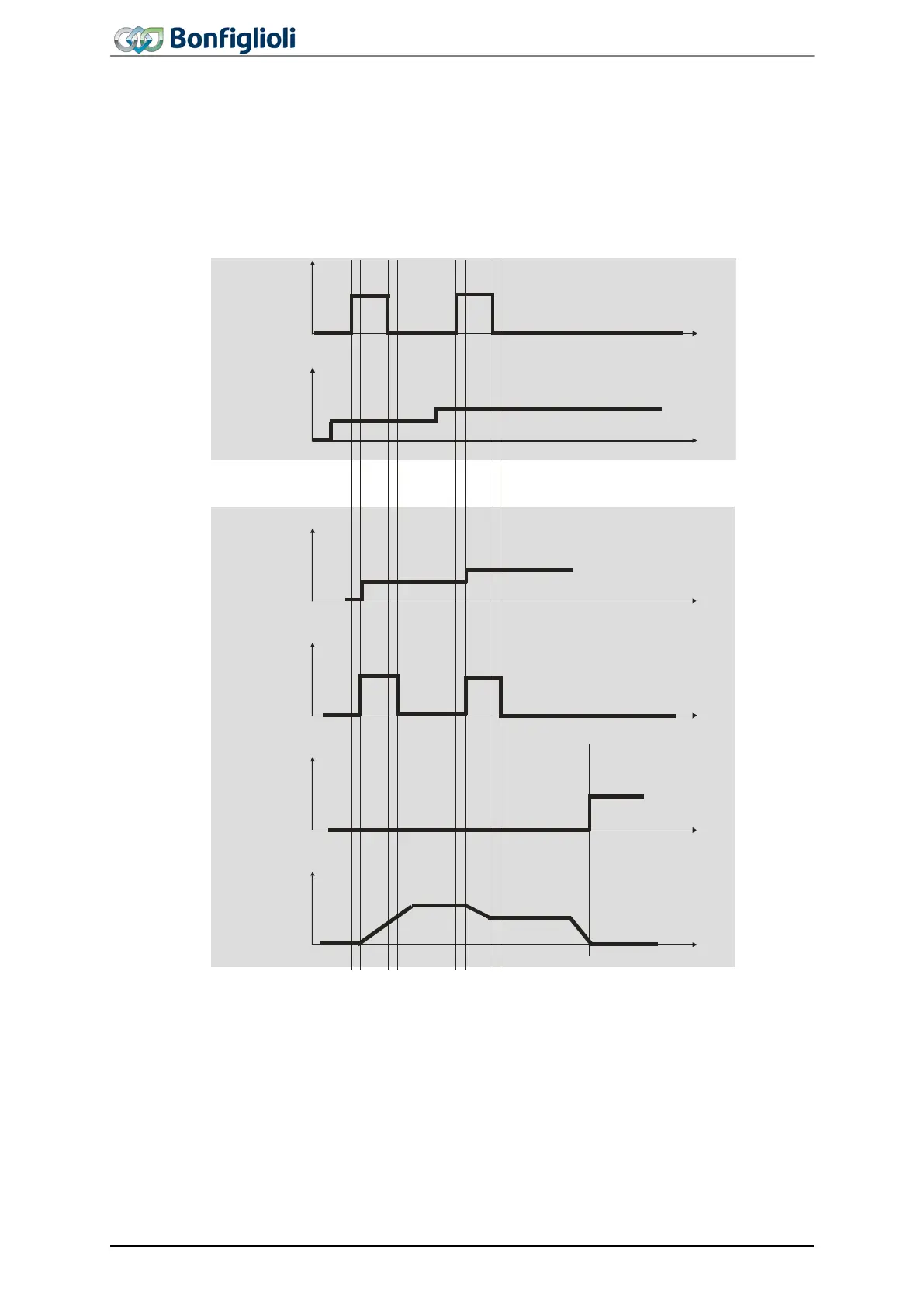

Example:
single set-point
control bit change on set-point = 0
control bit change set immediately = 1
A new reference value is confirmed by the control bit “New reference value” (rising
edge) while a reference value is being processed. The new reference value is pr
o-
cessed immediately.
t
t
t
t
t
t
actual
speed
new set point
(control bit 4)
target position
(set point)
current target
position
processed
set point
acknowledge
(status bit 12)
target reached
status bit 10
PLC
Drive
90
ACU Modbus/TCP 10/13
