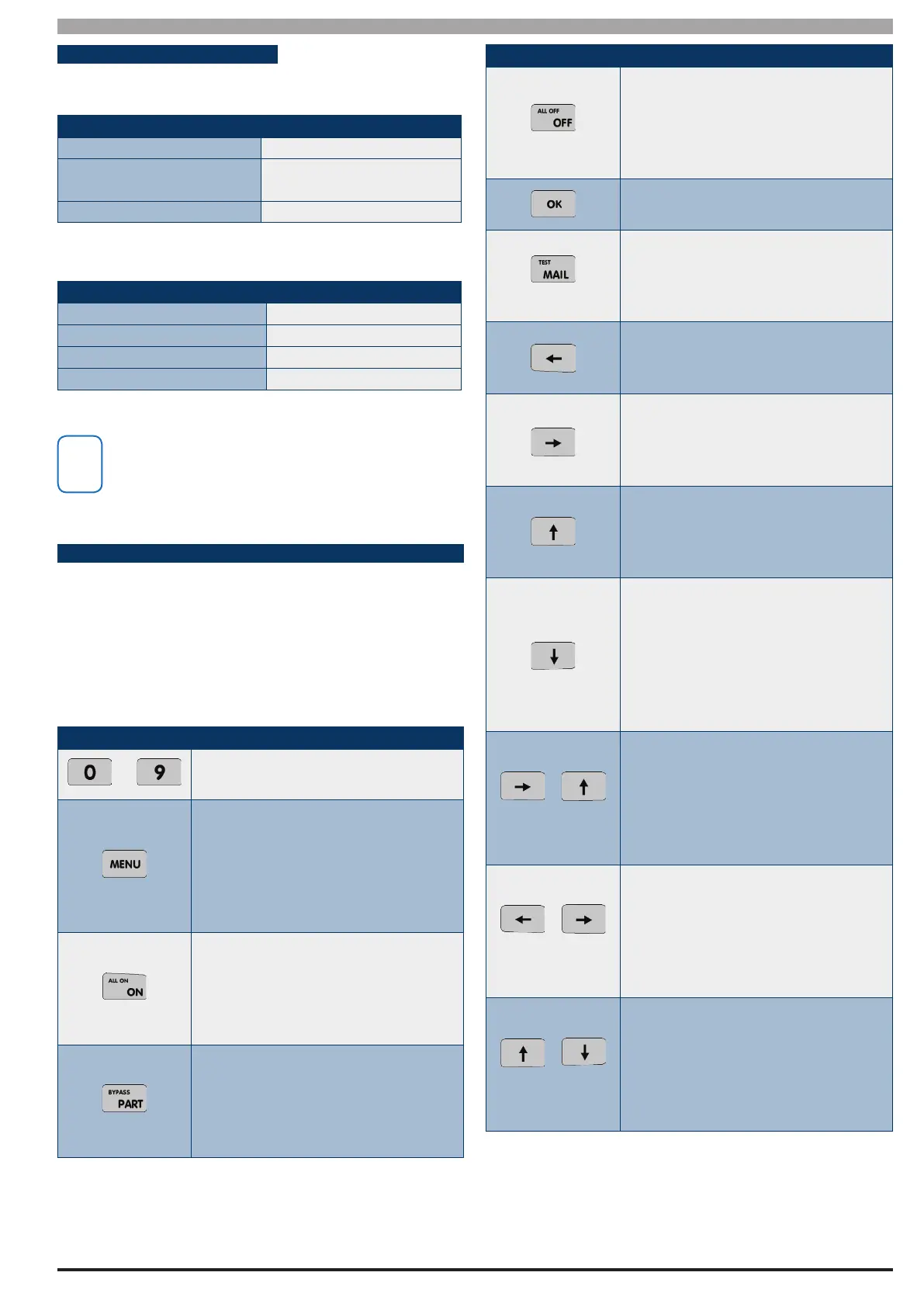

Solution 16i  Installation Manual  Installing the Hardware
PA NE L LE D IN DI C ATO R S
The control panel PCB has two LED indicators (Dialler and
Status LED’s) which display the following information.
Condition
Meaning
O Oine
On On Line (Dialling/
Answered)
Flashing Incoming Call
Table 2: Dialler Indicator LED
Condition
Meaning
O Error
On Error
Flash Once Every 2 Seconds OK
Flash Fast AC or Battery Trouble
Table 3: Status Indicator LED
i
Note
During factory defaulting the Status and Dialler LED
indicators will ash alternatively for approximately
15 seconds.
K EYPA D BU T TO N F U NC T IO NS
The keypad has 20, silicone rubber push button keys. The
keyss allow you to input instructions and navigate the
menu screens as required. Some buttons have a secondary
function which is activated by holding them down for two
seconds.
Each key’s function is described below
Key Description
to
The numeric keys allow you to enter
numbers when required
Use the [MENU] and the numeric
keys to enter commands. The
[MENU] key is also used to go back
one level when navigating through
menus or to exit a programming
location without saving changes.
The [ON] key allows you to turn an
area or output on. To turn all areas
on at the same time when the system
has been partitioned, press and hold
the [ON] key for two seconds.
The [PART] key allows you to turn an
area Part On. This key can also be
used to bypass a zone or multiple
zones when you press and hold for
two seconds.
Key Description
The [OFF] key allows you to turn an
area or output o. To turn all areas
o at the same time when the system
has been partitioned, press and hold
the [OFF] key for two seconds.
The [OK] key allows you to save any
changes and exit the command.
The [MAIL] key allows you to read
stored mail. This key can also be
used to initiate a dialler test when
you press and hold for two seconds.
The [] key allows you to move the
cursor to the left when programming
text or telephone numbers.
The [] key allows you to move
the cursor to the right when
programming text or telephone
numbers.
The [↑] key allows you to navigate
through menus or to toggle
characters when programming text
or telephone numbers.
The [] key allows you to navigate
through menus or to toggle
characters when programming text
or telephone numbers. Pressing the
[] key when the area is disarmed
will display any current trouble
conditions.
+
for 2 sec
Pressing the [] and [↑] keys
together and holding them down for
2 seconds will trigger a Panic alarm.
If programmed the sirens will sound
and the monitoring station will be
notied.
+
for 2 sec
Pressing the [] and [] keys
together and holding them down
for 2 seconds will cause trigger a Fire
alarm. If programmed the sirens will
sound and the monitoring station
will be notied.
+
for 2 sec
Pressing the [↑] and [] keys together
and holding them down for 2
seconds will trigger a Medical alarm.
If programmed the sirens will sound
and the monitoring station will be
notied.
Table 4: Keypad Button Functions
