Bosch Solution 16i Installation Manual

2-7
Bosch Security Systems 09/11 BLCC500I
Solution 16i  Installation Manual  Installing the Hardware
OFF
On
The area is turned O
O
The area is turned All On or Part
On
ON
On The area is turned All On
O The area is turned O
(
(
)
)
CHIME
On Chime Mode is On
O Chime Mode is O
PHONE
On Phone Line in Use
O Phone Line not in use
Red LED
On System Armed
Flashing Alarm
Green
LED
On System Disarmed
Flashing
Area not ready to turn on
Red &
Green
LED
Flashing
Installer programming mode is
active.
9 10
11 12
13 14
15 16
1 2
3 4
5 6
7
8
On Zone Open or Unsealed
O Zone Closed or Sealed
Flashing Zone in Alarm or Alarm Memory

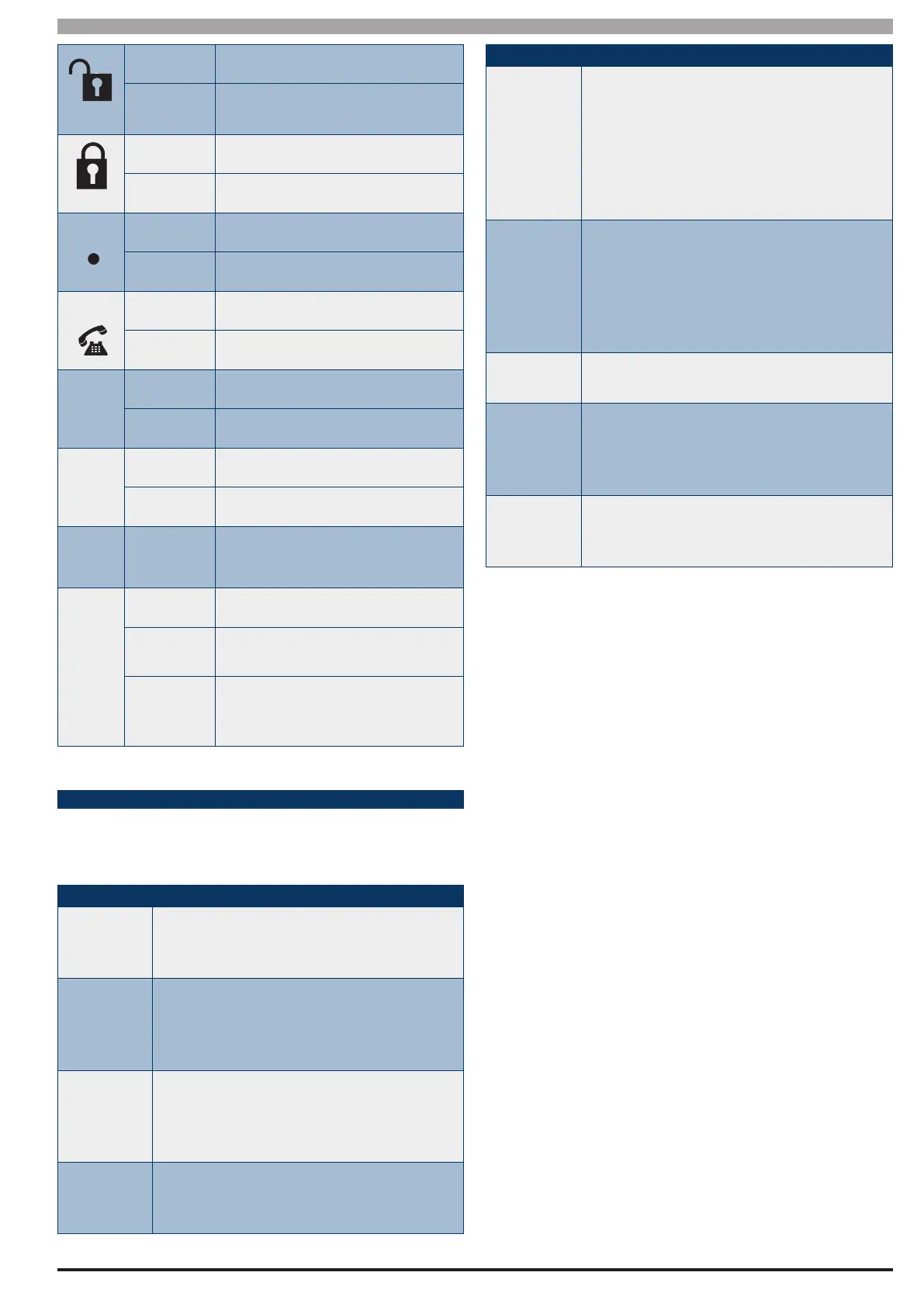

Table 7: ICON & LED Indicator Meanings
K EYPA D TO N ES
Your keypad emits several distinct tones and displays text
to alert you to system events. The volume of the keypad
tones can be adjusted in MENU 6-1-0.
Type
Meaning
Fire
Alarm
Tone
When a re zone sounds an alarm, the
keypad will sound 3 seconds on and 2
seconds o (repeat).
Burglary
Alarm
Tone
When a burglary zone activates while your
system is turned on, your keypad emits a
continuous siren tone. It sounds for the
time set by your security company.
Trouble
Tone
When a system component is not
functioning properly, your keypad sounds
4 fast short beeps followed by a 5 second
pause (repeat).
Key Press
Tone
Pressing any key on the keypad sounds
one short beep, indicating that the key
press is accepted.
Type
Meaning
Entry
Delay
Tone
When you enter the premises through
a zone programmed for entry delay, the
keypad sound a Hi/Low tone to remind
you to turn o the area. If the area is not
turned o before the entry delay expires,
an alarm condition will sound and a report
may be sent to your alarm company.
Exit
Delay
Tone
After you turn an area All On, the keypad
will sound 1 short beep every second.
During the last 10 seconds fast short beeps
will be heard. If you don’t exit before the
delay time expires and an exit delay door
is faulted, an alarm occurs.
Error
Tone
If you press an incorrect key, your keypad
will sound a 2 second tone.
Menu
Mode
The keypad will sound a Hi / Lo tone to
indicate you have entered MENU Mode
and a Lo/Hi tone to indicate you have
exited MENU mode.
Chime
Tone
The keypad sounds fast short beeps to
alert you when a zone programmed for
chime is faulted or unsealled.
Table 8: Keypad Tone Meanings
