Solution 16i  Installation Manual  Installing the Hardware
In addition to voice reporting, the CM101B also provides
voice prompting during remote control of the system with
full user PIN authentication. Areas and or Outputs can be
armed or turned on and o using a mobile phone or any
other telephone keypad capable of sending DTMF tones.
E XPA N SI ON M OD UL E CO NF IG U RAT I ON
LAN module support for the Solution 16i panel requires
that each module type is set to address 1. For example if a
system has 1 x CM704B and 1 x CM720B installed, they
should both be addressed as “module 1”.
The panel will only look for new devices following a power
cycle and only if the LAN is not secured. To add new
devices, make sure the LAN is unsecured before powering
the system down.
Set the module Address DIP switches accordingly and
complete wiring as per instuctions. Once complete re-
power the system. To interrogate devices connected to
the LAN you can use LAN Status command, MENU-6-0-0
LAN MOD ULE ADD RESSING
Module SW 1 SW 2 SW 3 Address
CM704B OFF OFF OFF 1
CM720B OFF OFF OFF 1
CM710B OFF OFF OFF 1
Each dierent module type should be
congured to address 1.
Table 10: LAN Module Addressing

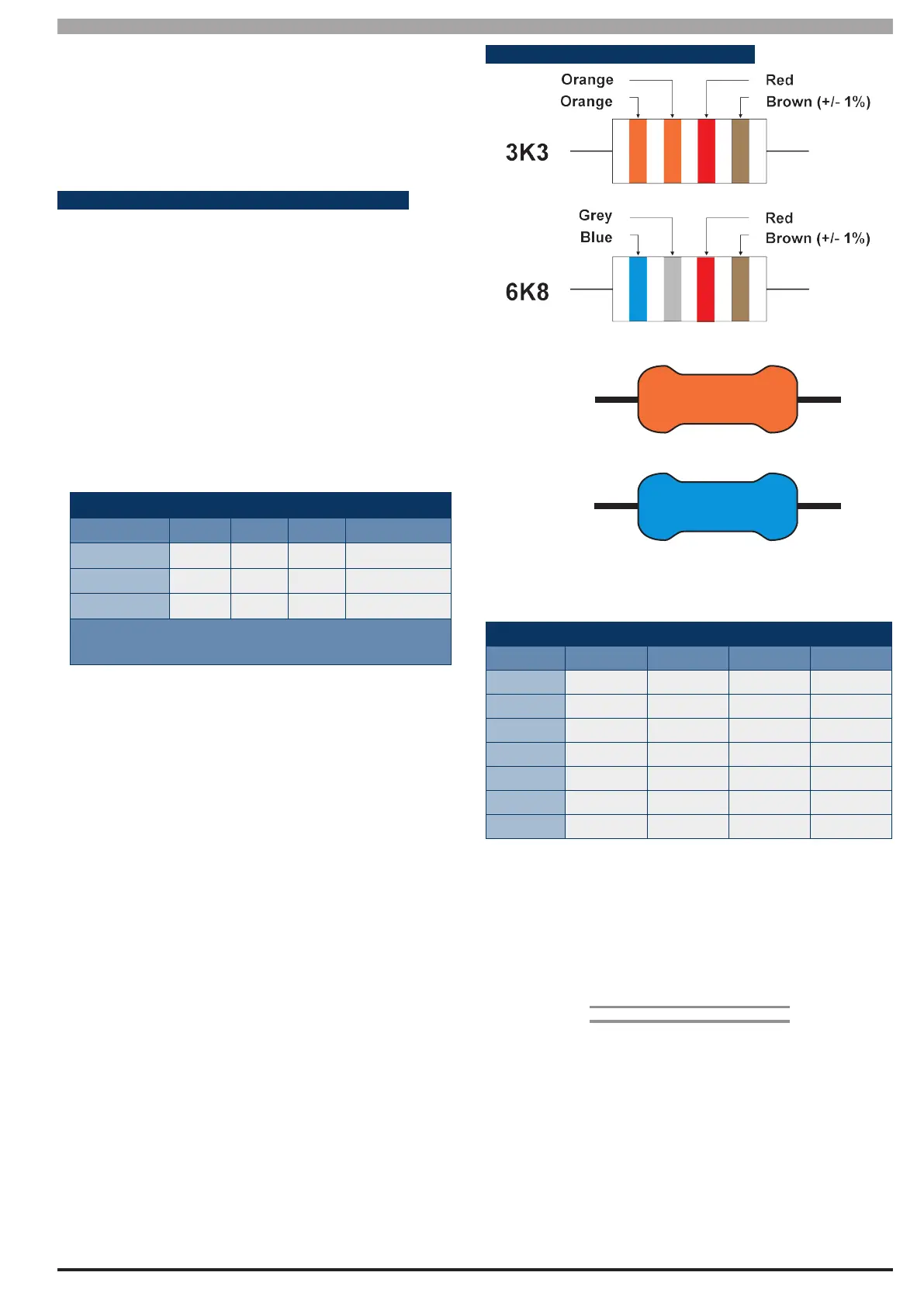

E OL RE S IS TO R CO LO UR CO DE
3K3 =
6K8 =
Orange
Blue
Figure 19: EOL Resistor Colour Chart
Selected Resistor Colour Codes
Value Band 1 Band 2 Band 3 Band 4
2K2 RED RED RED BROWN
4K7 YELLOW VIOLET RED BROWN
5K6 GREEN BLUE RED BROWN
8K1 GREY BROWN RED BROWN
10K BROWN BLACK ORANGE BROWN
12K BROWN RED ORANGE BROWN
22K RED RED ORANGE BROWN
Table 11: EOL Resistor Colour Codes
Because of variations in the colours used to mark resistors
it is recommended that you use a multimeter to verify the
value of resistors rather than rely on the colour code.
