Solution 16i  Installation Manual  Wiring Diagrams

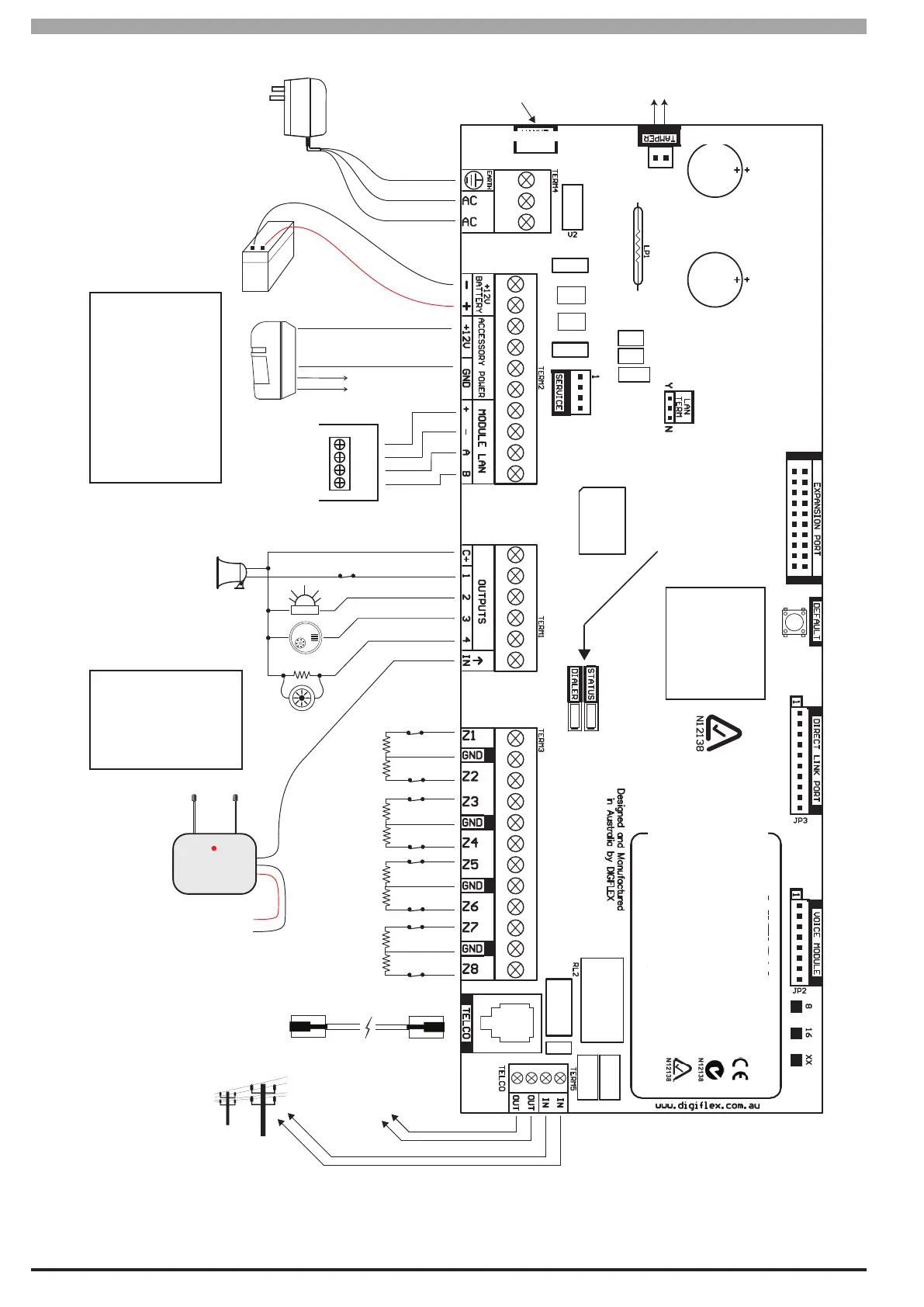

Figure 29: Wiring Diagram
Premises
Telephone
Incoming Street
Telephone Line
+
-
GREEN
YELLOW
YELLOW
16-18V AC
24 VA
ZONE 2
ZONE 4
ZONE 1
ZONE 3
N/C
N/C
N/C
N/C
N/C
ZONE 6
ZONE 8
ZONE 5
ZONE 7
N/C
N/C
N/C
N/C
LAN B
LAN -
LAN A
LAN +
Keypad /
LAN Expansion
Device
Horn
Speaker
Strobe Light
+
-
12V DC
7.2AH Sealed
Lead Acid
Battery
Accessories
(e.g. PIR Detectors)
Siren Tamper Switch
Connect To
Cabinet Tamper
To Zone Terminals
+
NC
COM
-
-
+
RJ12 6P4C - RJ12 6P4C
Phone Lead
Connect To
Telephone Line
Mode 3
Smoke
Detector
Piezo Siren
RF
Receiver
Connect To
Accessory
Power
GND
+12V
RF DATA
Earth Connection
Spade For Surge Protection
Panasonic
LC-P127R2P
or Equivalent
+
-
3K3

Refer to
Documentation
For Dialer &
Status LED’s
ICON
The maximum
continuous
combined
current draw
from the +12V,
LAN + and
C+ terminals
must not
exceed 1 Amp
16-18V AC
Fit the supplied 3K3
resistor across the
piezo siren so the
panel can monitor
the connection.
