Bosch Solution 16i Installation Manual

3-3
Bosch Security Systems 09/11 BLCC500I
Solution 16i  Installation Manual  Wiring Diagrams

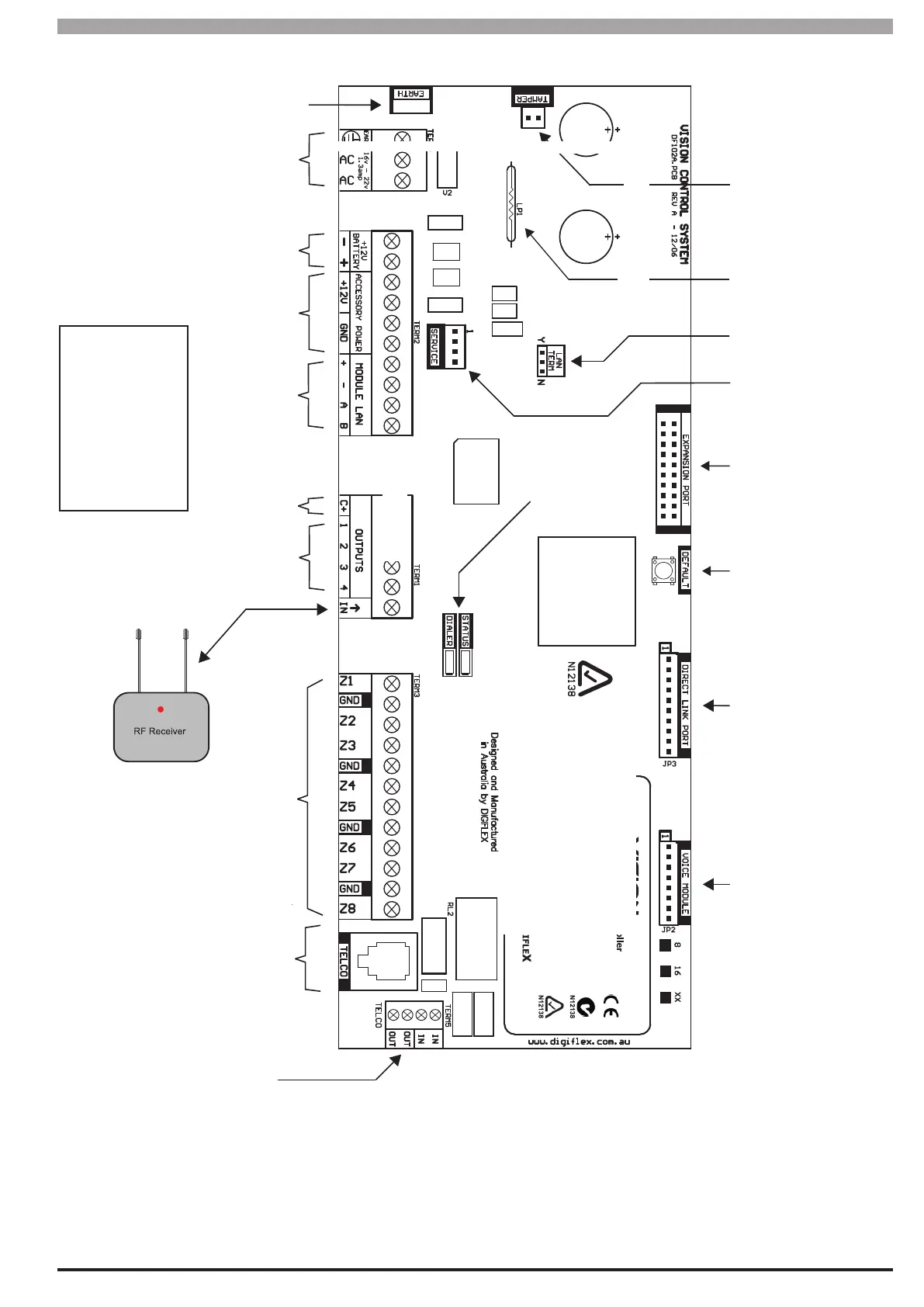

Figure 28: Terminal Descriptions
16-18 VAC
24VA
12VDC 7.2Ah Sealed
Lead Acid Battery
Panasonic LC-P127R2P
or Equivalent
Accessory
12 VDC Supply
(750mA Fused)
LAN Devices
Connection
Terminals
(750mA Fused)
Output 1, 2, 3 and 4
Connection Terminals
500mA
RF Receiver
/ Keyswitch
Input
Zone Input
Terminals
Telephone Line
Connection
Terminals
Telephone Line
Connection Socket
(RJ12 6P4C)
Panel Cabinet
Tamper Circuit
Connection
Terminals
Battery
Charging
Globe
Voice Module
Connection Socket
(Optional)
4-Pin Socket
to LAN For
Service Keypad
Default and
Direct Connect
Switch
10-Pin Serial
Connection Socket
For Direct Link /
Flash Programming
etc.
Refer to
Documentation
For Dialer &
Status LED’s
ICON
Expansion Port
TCP/IP Module
Connection
RS485 LAN
Termination
Shunt
Earth Connection
Spade For Surge
Protection
Output Devices
12VDC Supply
(2.5A Fused)
The maximum
continuous
combined
current draw
from the +12V,
LAN + and
C+ terminals
must not
exceed 1 Amp
