9E-926 8 SmartControl™ Meter & TouchPoint™
Operation Instructions
2.1.2 Rear View of TouchPoint

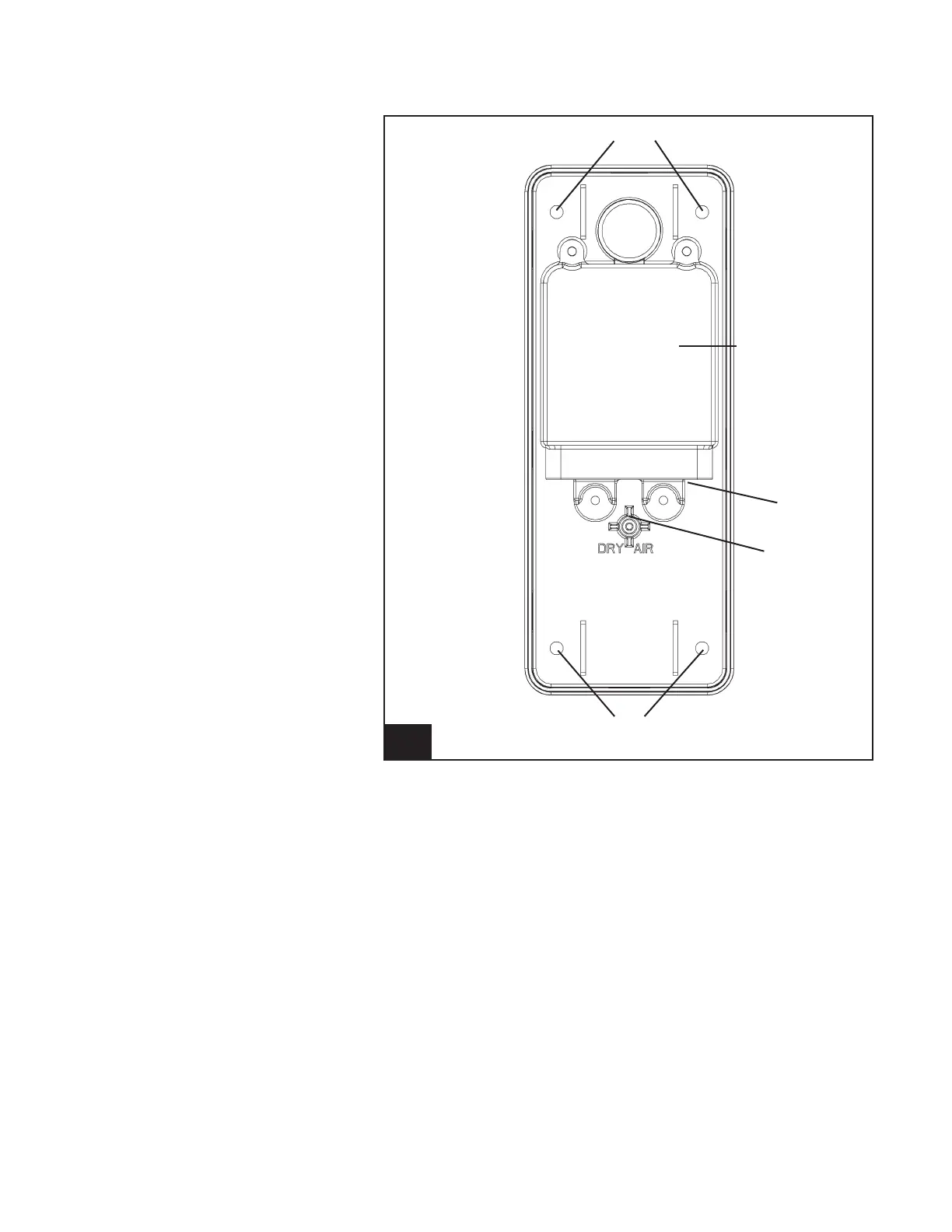

1a. TouchPoint Rear View l926_1a
Mounting Screws
Wiring Access Cover
Cable Insert
Locations
Dry Air
Mounting Screws
Wiring Access Cover
The four screws are used to hold the wiring access cover in
place. With the cover in place and the screws secured, the
cover will be sealed to prevent water from entering.
Mounting Screws
The four screws are used with clips to secure the TouchPoint to
the front cover of the enclosure.
Dry Air
A 5/32 yellow tube is connected to this tting to supply dry air
for the control.
Cable Locations
There are twelve cable locations for wiring the TouchPoint.
When used with the proper size cable (0.210 to 0.250 inches in
diameter) they will be sealed and thus not allow water to enter
the enclosure.
