9E-926 10 SmartControl™ Meter & TouchPoint™
Operation Instructions
2.1.4 Bottom View of SmartControl Meter
Dry Air
Enclosure Screws
Cable Insert Locations
"M" Meter Port
Vacuum Inlet
Fresh Air
"S" Shutoff

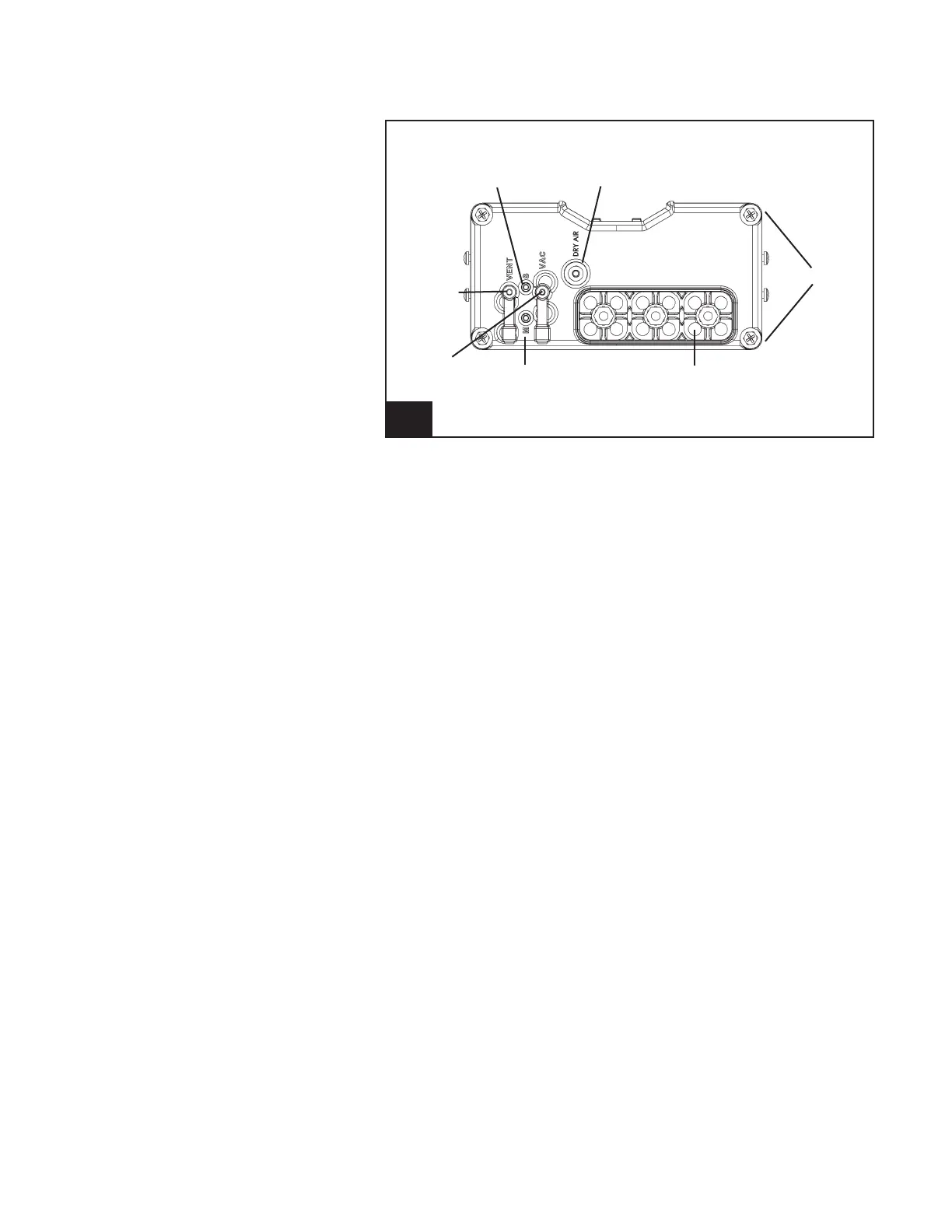

2a. SmartControl Meter Bottom View l909_39
Vacuum Inlet
Vacuum is connected to this port to provide it with a connec-
tion to the milk shutoff and dump valves.
Fresh Air
Fresh air is connected to this port for the milk shutoff and
dump valves.
“M” Meter Port
This port is connected to the top of the meter for controlling
the dumping of the meter.
“S” Shutoff
The output of this port will control the milk shutoff.
Enclosure Access
The four screws are used to secure the enclosure base to the
top. The base and top cover must be secured to prevent water
from entering.
Dry Air
A 5/32 yellow tube is connected to this tting to supply dry air
for the control.
Cable Locations
There are 12 cable locations that are used for wiring of the
SmartControl Meter. When used with the proper size cable
(0.210 to 0.250 inches in diameter) they will be sealed and not
allow water to enter the enclosure.
