Fitting twin wheels

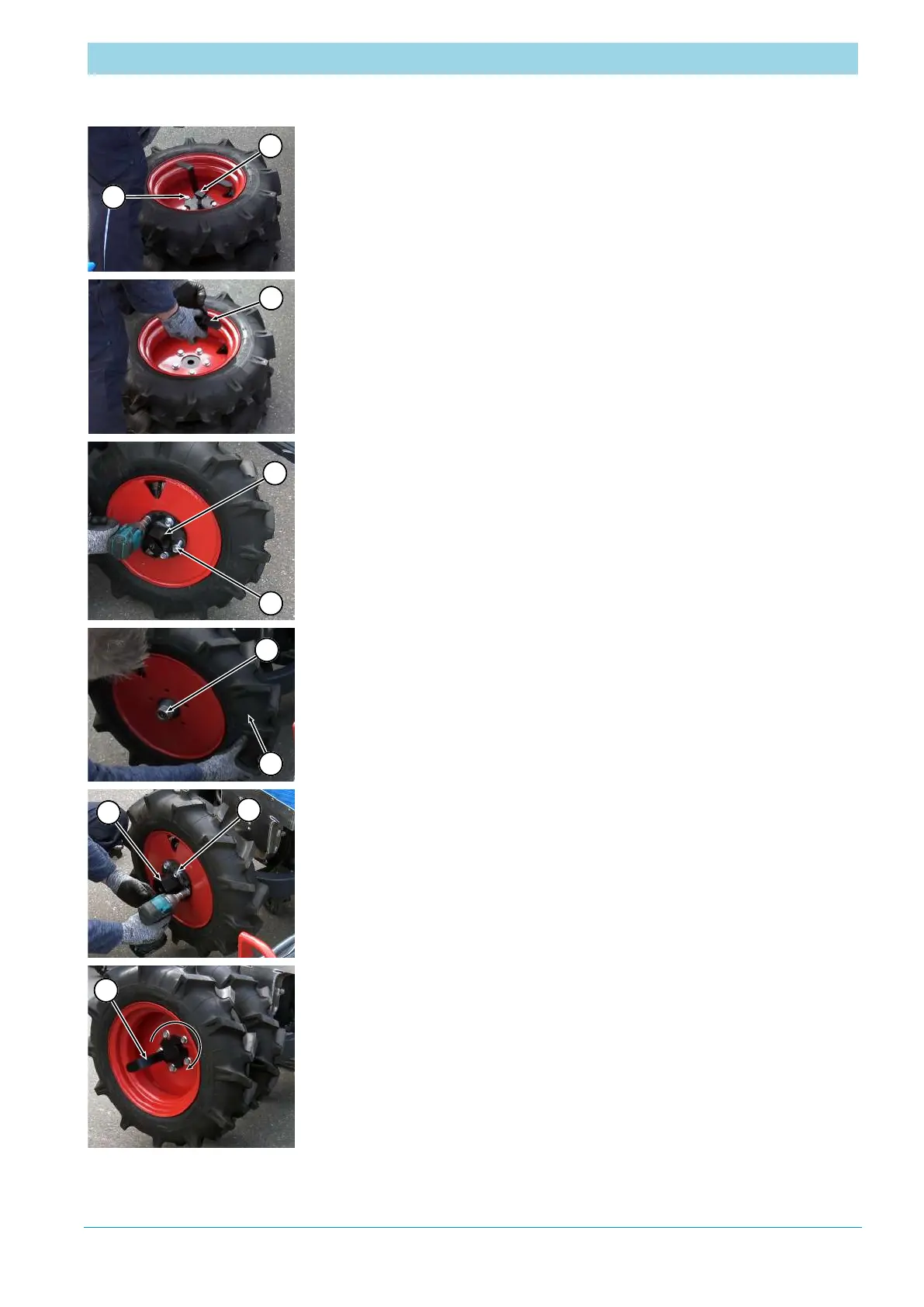

The twin wheels are fit as follows:
1
2
a) Loosen and remove all five screws (1) of the wheel lock (2) on the twin
wheel.
b) Turn the wheel lock handle on the twin wheel anti-clockwise and
release the wheel lock.
3
c) Remove the wheel lock (3).
4
5
d) Loosen and remove the five screws (4) on the adapter flange of the
inner wheel (5).
e) Remove the adapter flange.
6
7
f) Fit the inner wheel (6) onto the wheel axle (7).
8
9
g) Fit the adapter flange (8) and fasten it with all five screws (9). Observe
the tightening torque.
10
h) Fit the outer wheel onto the adapter flange.
i) Fit the wheel lock (10) and tighten it clockwise.
j) Carry out the steps on both sides.
ð The wheel has been changed.
