4. Attach the side rails to the front and back of the rack, using M6 screws. Refer to the following gure.
NOTE
The narrow telescoping ends of the side rails should attached at the back of the rack.

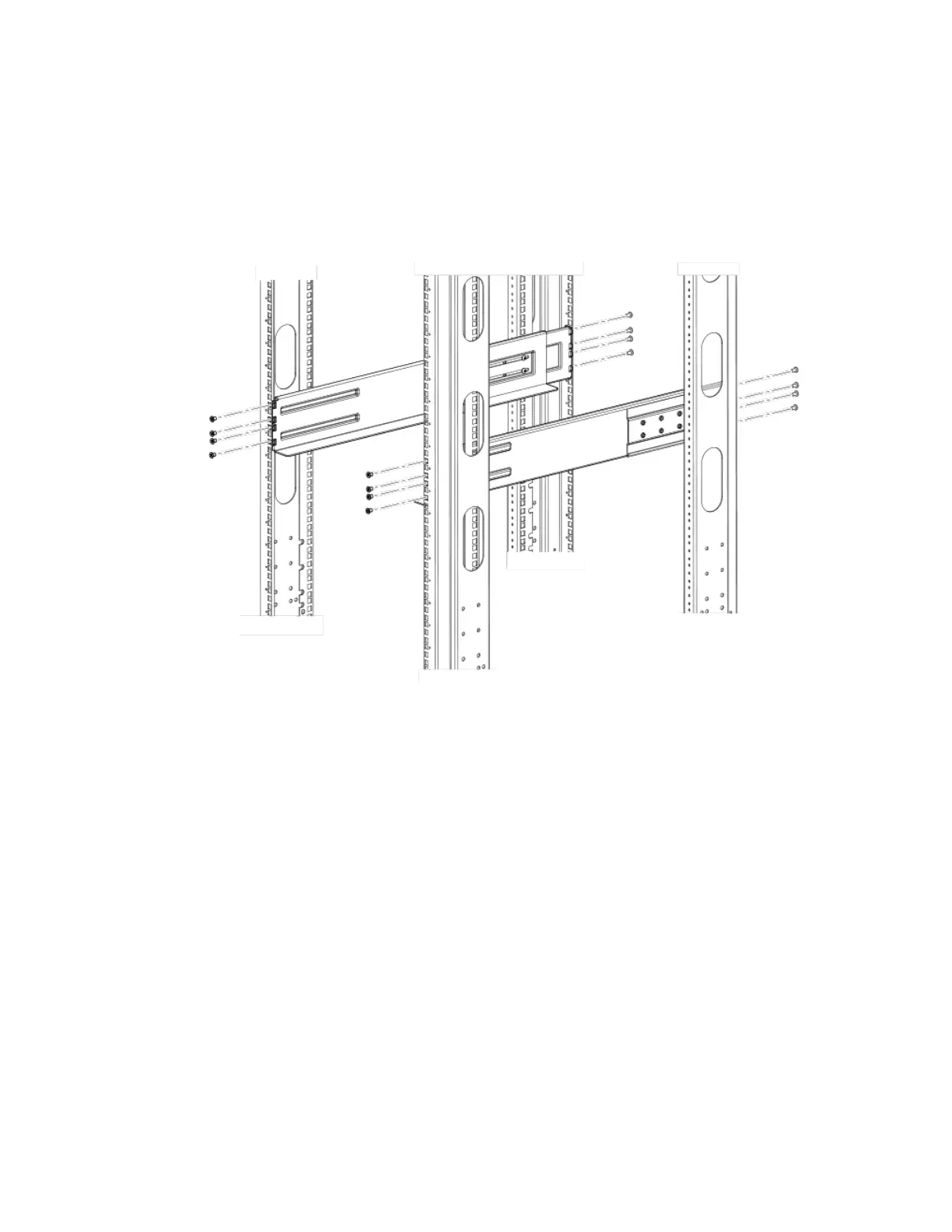

FIGURE 67 Attach the telescoping side rails to the rack.
