5. Use the mechanical lift to position the chassis as close to the rack as possible. Slide the chassis o the lift and onto the side rails
and gently guide the chassis into the rack. Refer to the following gure.

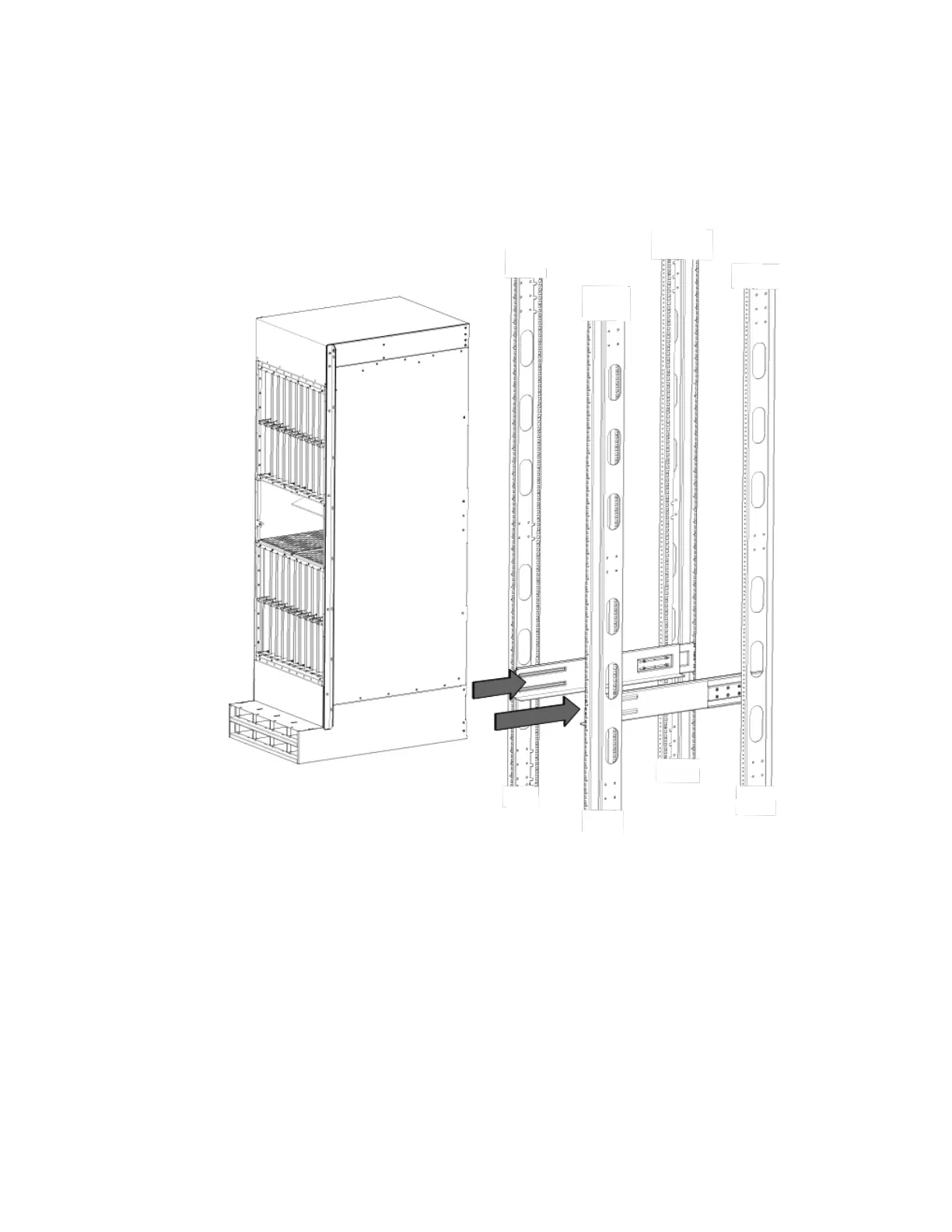

FIGURE 68 Slide the chassis in the rack
Installing a Brocade MLXe Series-32 router
