10. Attach the rails to the front and back of the rack, using screws provided in the kit (refer to the following gure).
NOTE
The narrow telescoping ends of the rails should attached at the back of the rack.

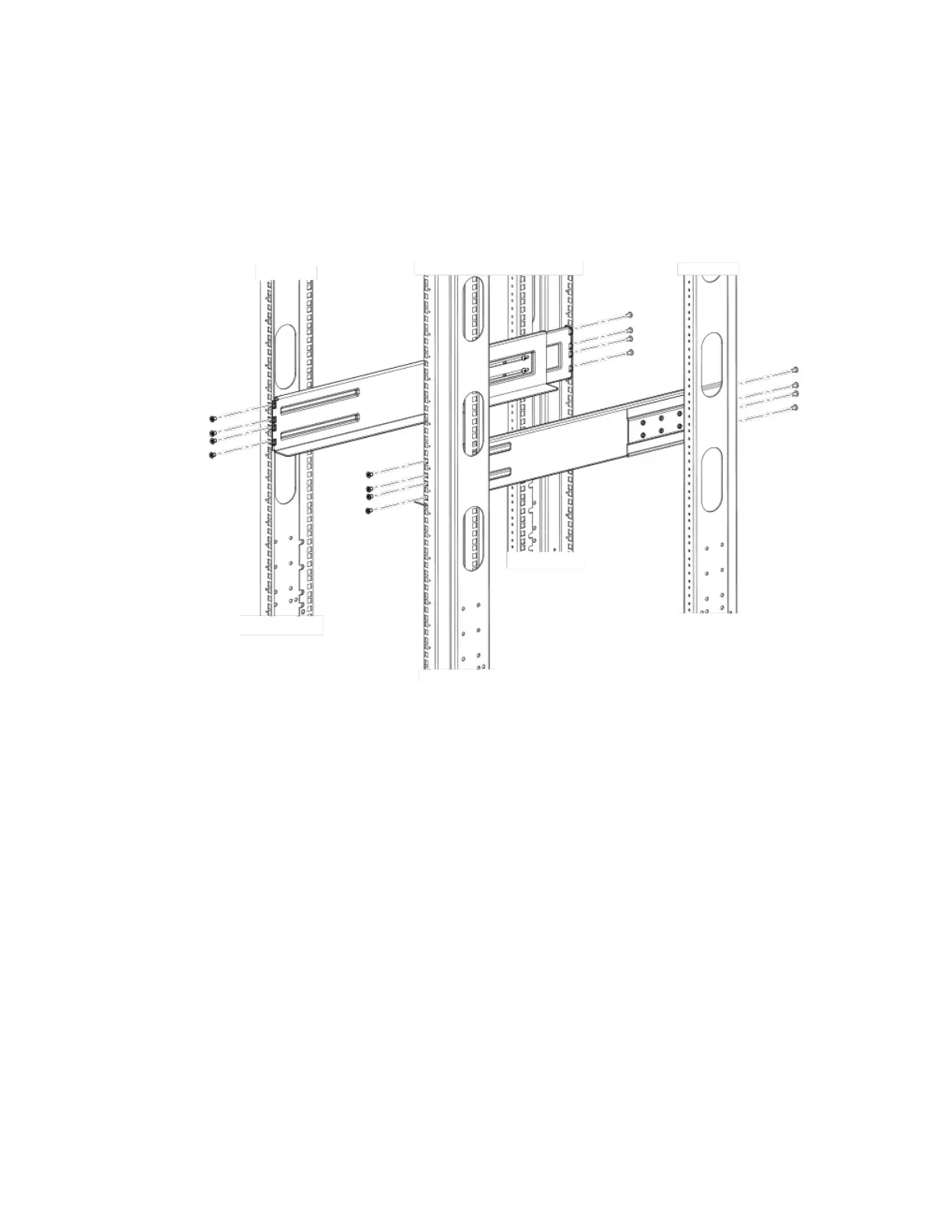

FIGURE 71 Attaching the telescoping side rails to the rack.
Installing a Brocade MLXe Series-32 router
Brocade NetIron MLXe Series Hardware Installation Guide
150 53-1004203-04
