Brother DCP-8065DN

6-14 Confidential

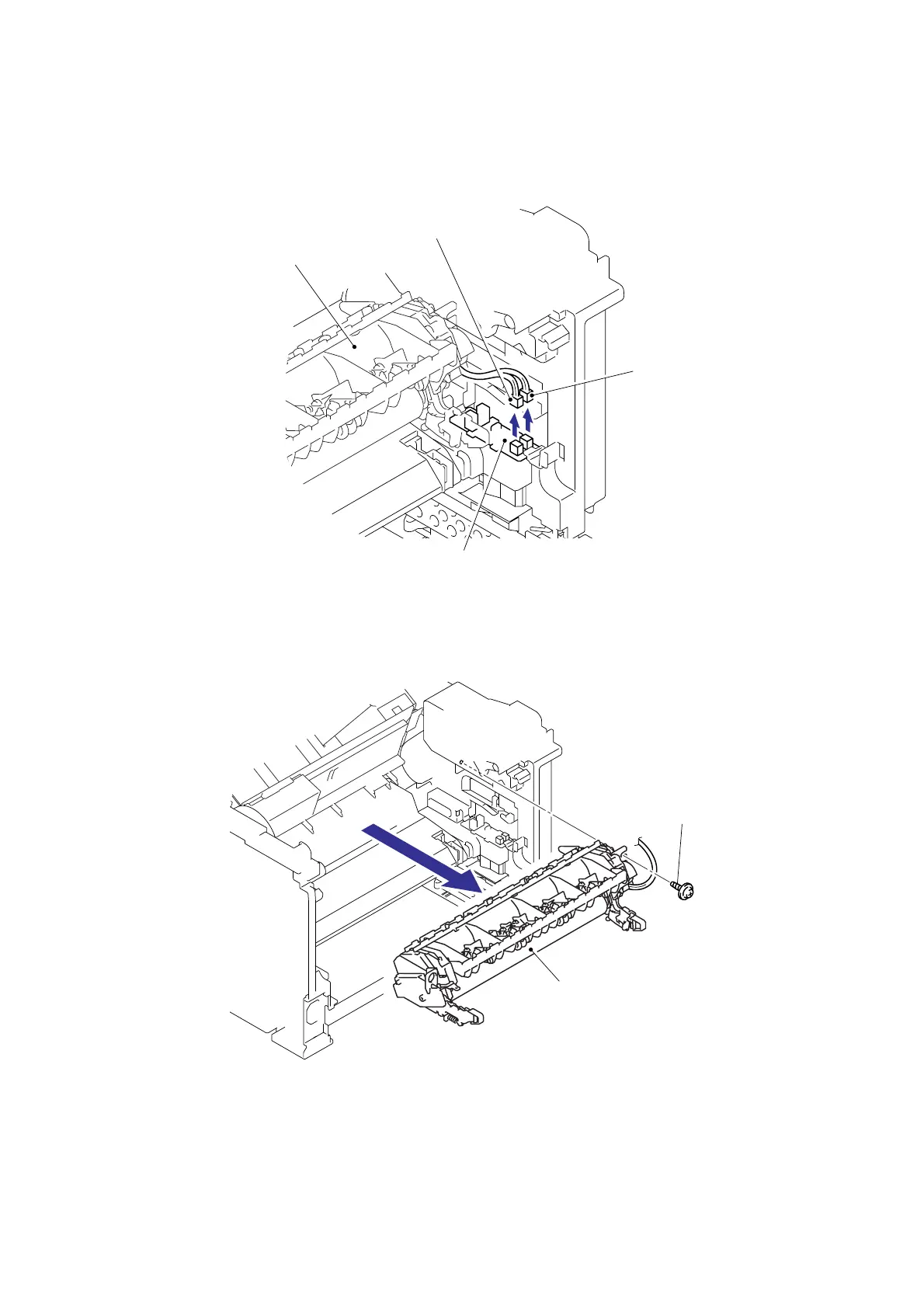

(34) Disconnect the connectors of the Thermistor ASSY M and Thermistor ASSY S from the
Relay rear PCB ASSY, and remove the harnesses of these thermistors.
Fig. 6-23
(35) Remove the cup B M4x16 Taptite screw, and then remove the Fuser unit.
Fig. 6-24
Thermistor ASSY S
Relay rear PCB ASSY
Thermistor ASSY M
Fuser unit
Taptite, cup B M4x16
Fuser unit
