(32) Remove the Heater terminal L and Heater terminal S from the Fuser unit while holding the
Fuser unit.

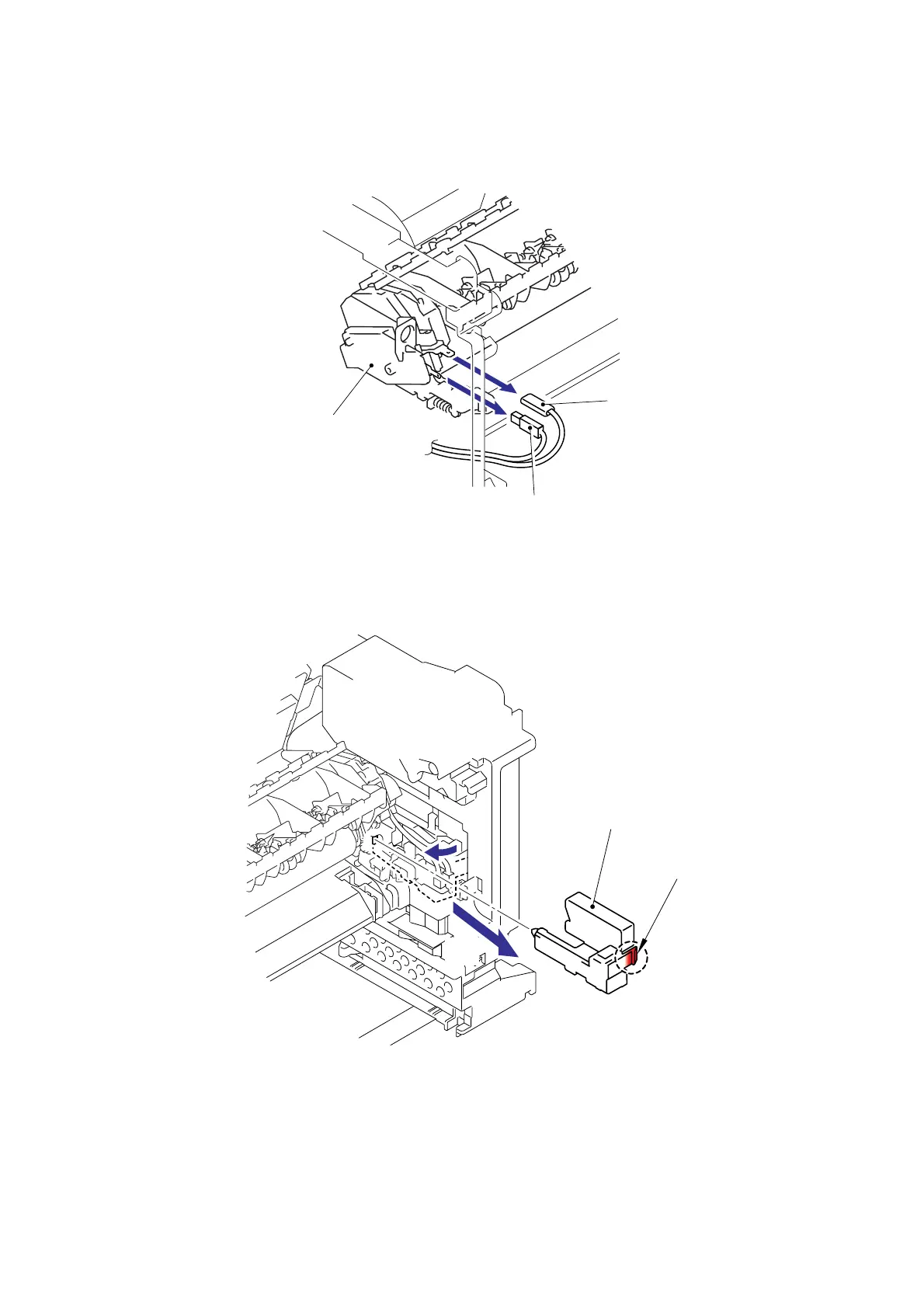

Fig. 6-21
(33) Pull the FU harness cover 2 to the direction of the arrow 33a while pressing the Hook and
pull out the FU harness cover 2 from the back of the machine.
Fig. 6-22
Heater terminal L
Heater terminal S
Fuser unit
FU harness cover 2
Hook
33a
33b
