Brother DCP-8065DN

6-17 Confidential
(39) Remove the six cup S M3x6 Taptite screws.
(40) Remove the two Flat cable from the Main PCB.
(41) Remove the Protective film.
(42) Pull out the flat cable from the Core.
(43) Remove the Laser unit.
NOTE:
- Be careful not to lose the Protective film attached on the flat cable.
- Do not touch the Laser scanner window directly.

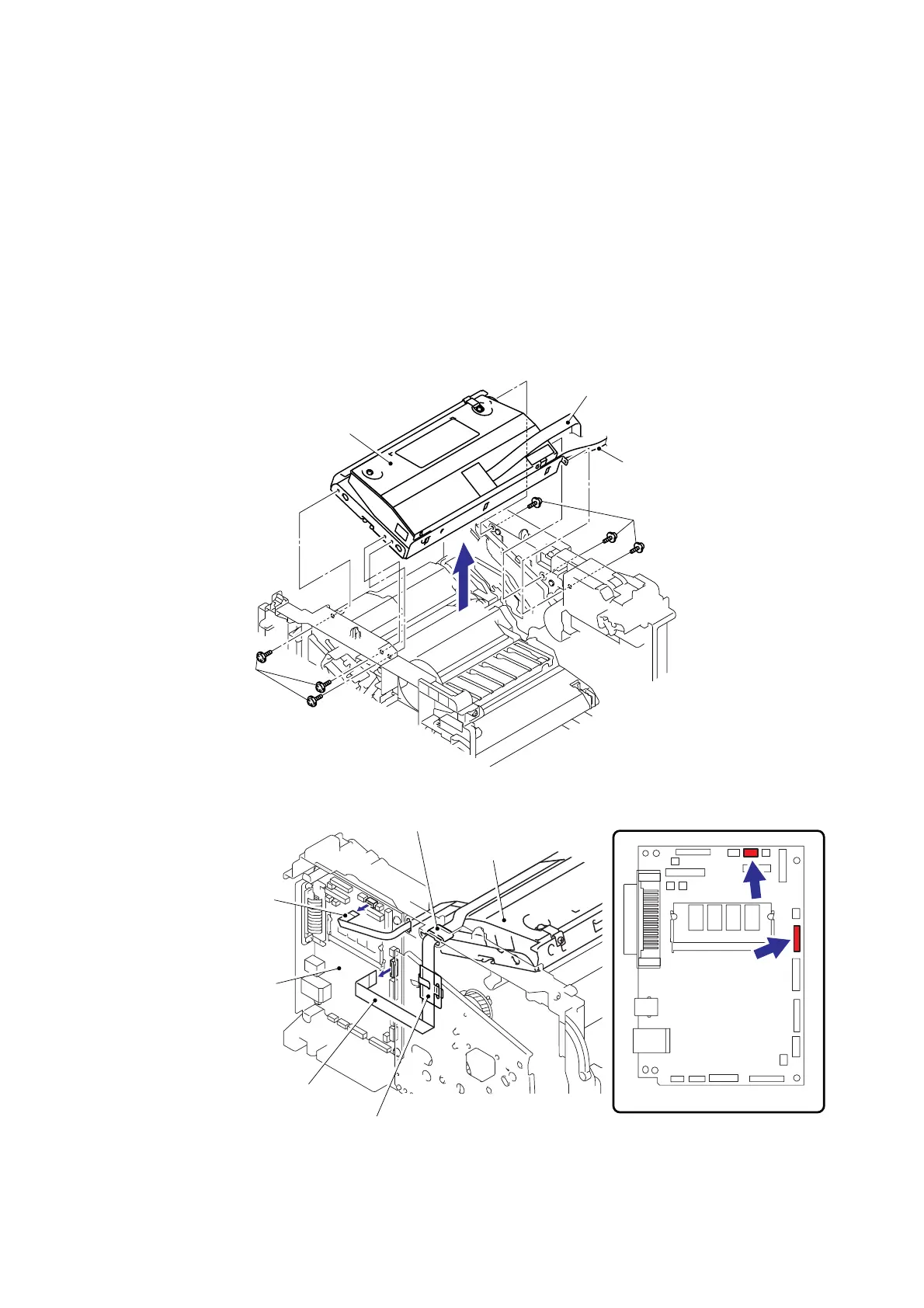

Fig. 6-28
Taptite, cup B M3x6
Taptite, cup B M3x6
Core
Protective film
Laser unit
Laser unit
Polygon motor
(Flat cable)
LD harness
(Flat cable)
Main PCB
Main PCB
Polygon motor (Flat cable)
LD harness (Flat cable)
