Brother DCP-8065DN

6-18 Confidential
<Installing Procedure>

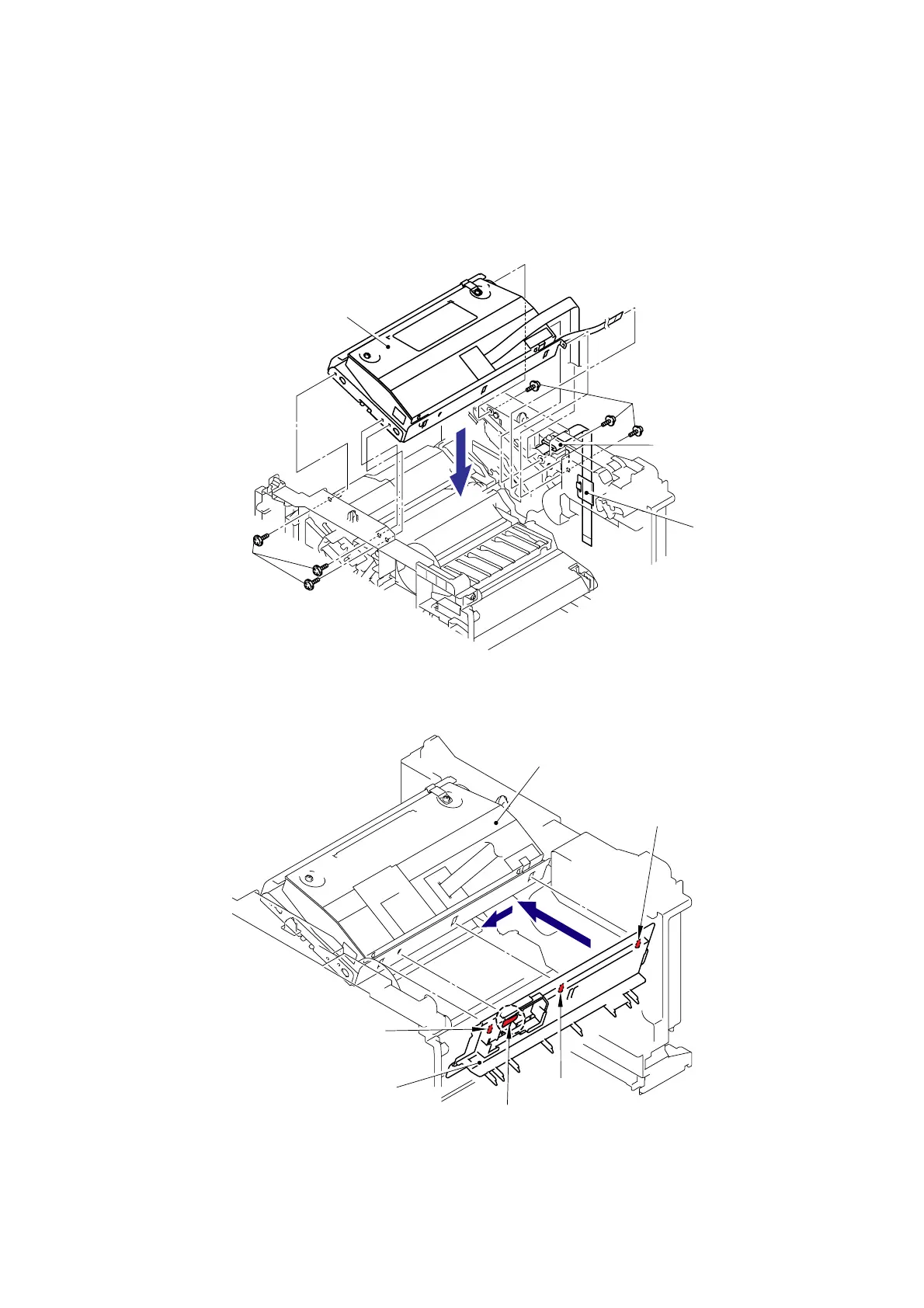

(1) Secure the Laser unit with the six cup S M3x6 Taptite screws.
(2) Put the flat cable through the Core and Protective film.
(3) Install the flat cable. (Refer to “HARNESS ROUTING” in Chapter 5.)
Fig. 6-29
(4) Install the Air duct into the Laser unit.
Fig. 6-30
Taptite, cup B M3x6
Taptite, cup B M3x6
Laser unit
Hook
Hook
Pin
Pin
Air duct
Laser unit
4a
Core
Protective film
4b
