Brother DCP-8065DN Service Manual

1-4 Confidential

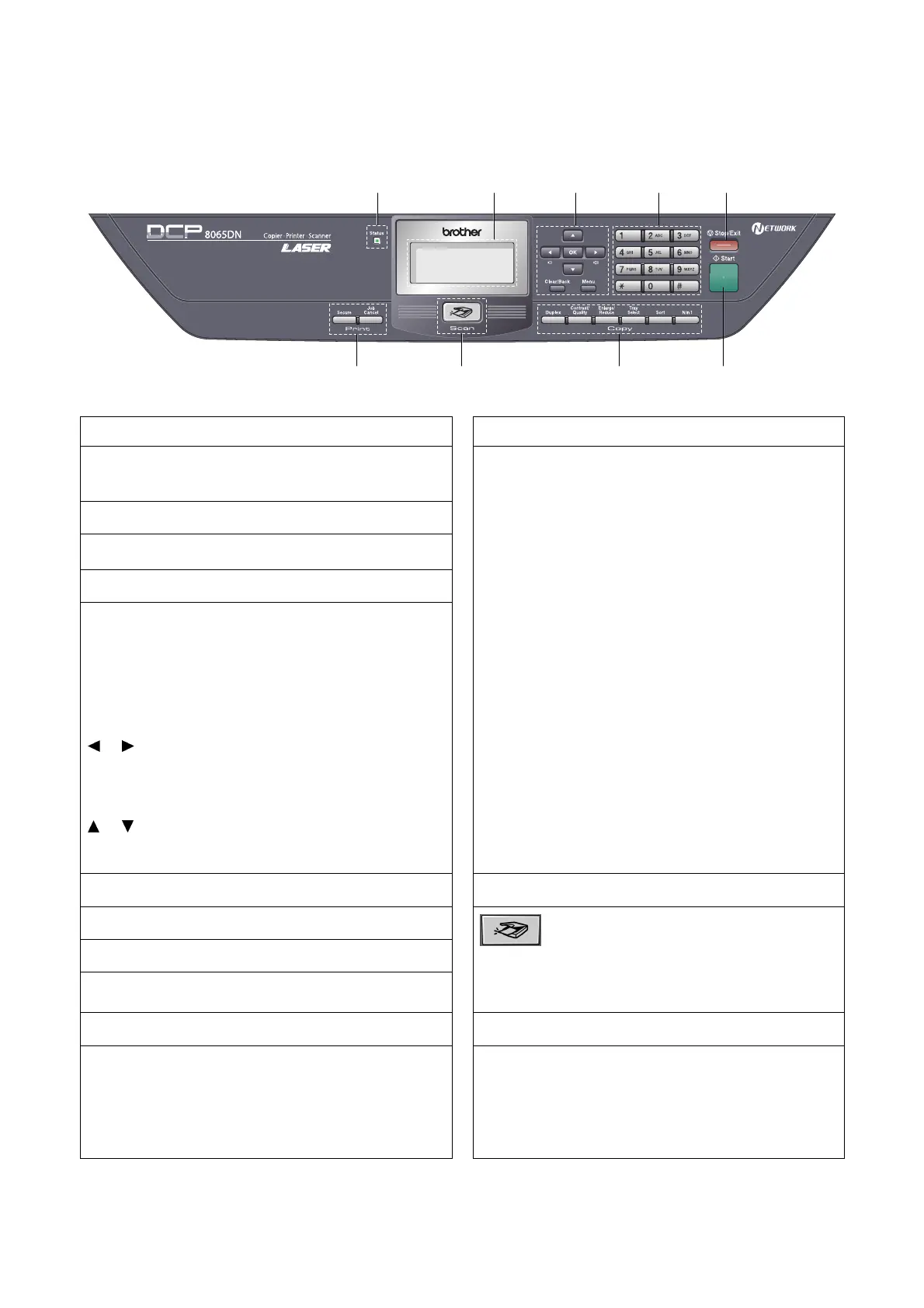

DCP-8060 and DCP-8065DN have similar control keys.
Fig. 1-4
1. Status LED 7. Copy Keys
The LED will flash and change color depending on
the machine status.
2. LCD
Displays messages to help you use your machine.
3. Menu Keys
Menu
Accesses the main menu.
Clear/Back
Deletes entered data or lets you exit the menu.
OK
Selects a setting.
or
Scrolls backwards or forwards through menu
selections.
Changes the volume when in standby mode.
or
Scrolls through the menus and options.
Duplex (For DCP-8065DN)
You can choose Duplex to copy on both sides of
the paper.
Contrast/Quality (For DCP-8065DN)
Lets you change the quality or contrast for the next
copy.
Contrast (For DCP-8060)
Lets you change the contrast for the next copy.
Quality (For DCP-8060)
Lets you change the quality for the next copy.
Enlarge/Reduce
Reduces or enlarges copies.
Tray Select
Lets you change which tray will be used for the
next copy.
Sort
Sorts multiple copies using the ADF.
N in 1
You can choose N in 1 to copy 2 or 4 pages onto
one page.
4. Dial pad 8. Scan Key
Used to enter text.
5. Stop/Exit Key
Stops an operation or exits from a menu.
Scan
Puts the machine in Scan mode.
(For details about scanning. See Software User’s
Guide on the CD-ROM.)
6. Start Key 9. Print Keys
Starts making a copy or scanning.
Secure
Prints data saved in memory when you enter your
four-digit password.
Job Cancel
Cancels a print job and clears the machine memory.
6
2 3 4 5 1
7 8
9

Brother DCP-8065DN Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	28 ppm
Scan to	e-mail, file, image, OCR
Input color depth	48 bit
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 600 DPI
Maximum number of copies	99 copies
Copy speed (black, normal quality, A4)	28 cpm
Total input capacity	250 sheets
Total output capacity	150 sheets
Auto document feeder (ADF) input capacity	50 sheets
Internal memory	32 MB
Maximum internal memory	544 MB
Sound power level (standby)	30 dB
Sound pressure level (printing)	55 dB
Display	LCD
Market positioning	Business
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Font styles	66 Scaleable fonts, Letter, Gothic 16.66, OCR-A, OCR-B, 11 Barcodes
Dimensions (WxDxH)	531 x 450 x 475 mm
Networking features	10/100 Base-TX
All-in-one functions	Copy, Scan
Color all-in-one functions	scan, n
Compatible operating systems	Mac OS X 10.2.4 or greater Windows XP
Standard interfaces	USB 2.0
Sustainability certificates	ENERGY STAR
Power consumption (standby)	85 W
Power consumption (PowerSave)	15 W
Power consumption (average operating)	660 W
