ELECTRICAL AND IGNITION
ELECTRIC STARTER SERVICING

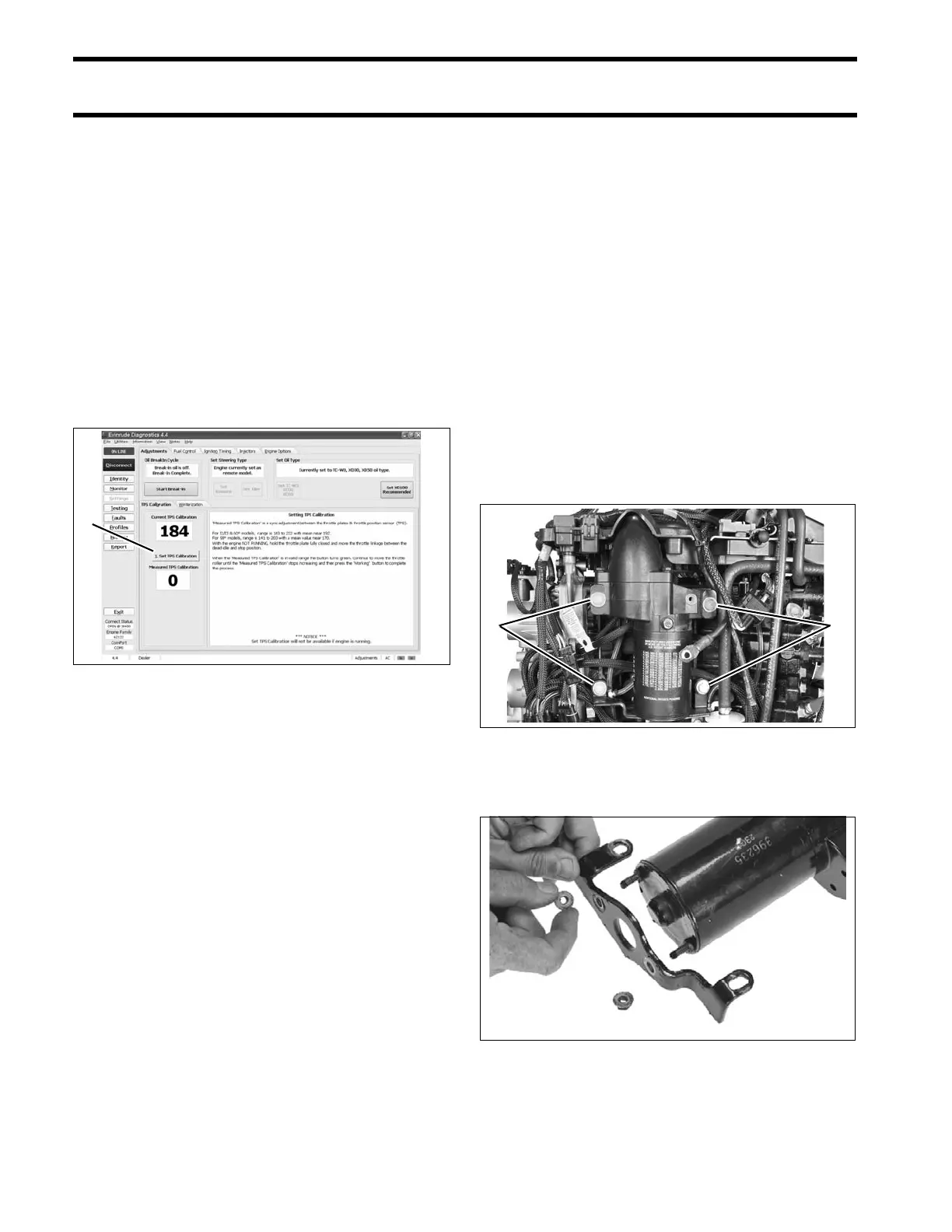

TPS Calibration
Use Evinrude Diagnostics software to tell the
EMM what throttle position sensor voltage is when
the throttle plates begin to open.
Set TPS Calibration after replacing or adjusting
any throttle body or throttle linkage parts.
Remove the air silencer.
Do NOT start the outboard.
On the Settings/Adjustments screen of the diag-
nostics software, click the “Set TPS Calibration”
button.
While holding the throttle plates closed, advance
the throttle linkage until it stops. The “Measured
TPS Calibration” field on the screen will increase.
Click the “Working” button in the software to cali-
brate the TPS.
Install the air silencer.
ELECTRIC STARTER
SERVICING
Starter Removal
IMPORTANT: Do not clean the starter drive
while the starter motor and drive are installed on
the powerhead. The cleaning agent could drain
into the starter motor, washing dirt from the drive
into the starter bearings and commutator.
Disconnect the battery cables at the battery.
Remove the starter positive (+) cable from post on
starter.
Remove the four frame and bracket mounting
screws. Remove the starter.
Loosen the two nuts used to fasten the starter
bracket. Remove the nuts and bracket.
1. TPS Calibration button 008108
005373
30374
