BRP EVINRUDE E-TEC 150 HP 2011 - Pinion Bearing Installation; Pinion Bearing Removal; Shifter, Bearing and Seal Service

285
GEARCASE – STANDARD ROTATION
SHIFTER, BEARING AND SEAL SERVICE
12
SHIFTER, BEARING AND
SEAL SERVICE

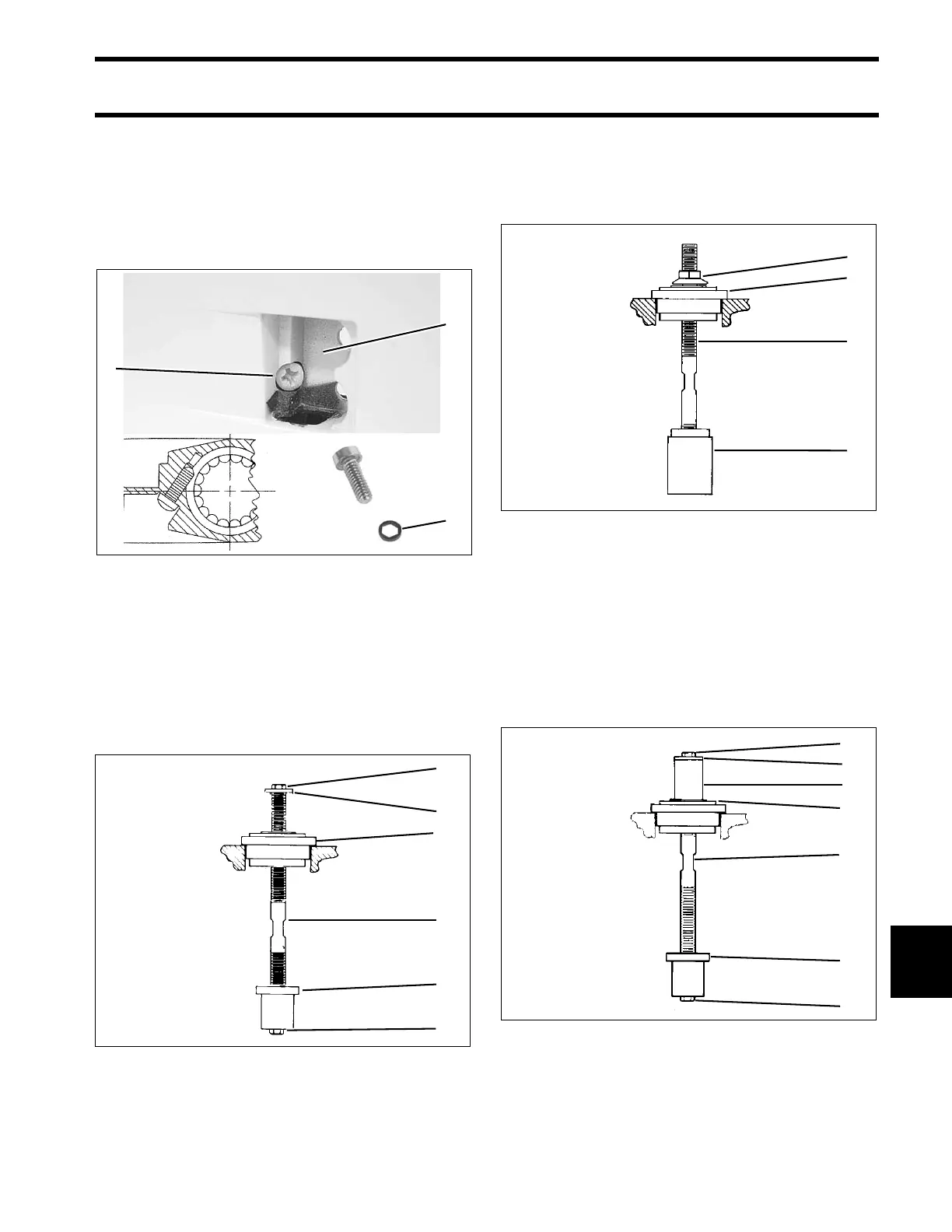

Pinion Bearing Removal
Remove pinion bearing retaining screw.
Assemble Pinion Bearing Remover and Installer,
P/N 5005927, in the gearcase as follows:
“S2” TYPE GEARCASE
Use a mallet to drive the bearing from the hous-
ing.
“O”, “L2”, AND “M2” TYPE GEARCASES
Use a 7/8 in. wrench to hold the remover in place.
Use a 3/4 in. wrench to turn flange nut clockwise.
Draw the bearing up from the housing.
Pinion Bearing Installation
Assemble the following components of Pinion
Bearing Remover and Installer, P/N 5005927, as
shown:
“S2” TYPE GEARCASE
1. Pinion bearing retaining screw
2. Water screen pocket
3. Seal
DSC02370
DRC7416
DSC02313
1. 1/4-20 x 1/2 in. Hex Head Screw
2. 1 in. O.D. Flat Washer
3. Plate, P/N 391260
4. Rod, P/N 326582
5. Installer/Remover, P/N 326574
6. 1/4-20 x 1 1/4 in. Hex Head Screw
824163
2
3
1
1
2
3
4
5
6
1. Flange nut, P/N 326586
2. Plate, P/N 391260
3. Rod, P/N 326582
4. Remover, P/N 326579
DR3419
1. 1/4-20 X 1/2 in. Hex head screw
2. 1 in. O.D. Flat washer
3. Spacer, P/N 341437
4. Plate, P/N 391260
5. Rod, P/N 326582
6. Installer/Remover, P/N 326574
7. 1/4-20 X 1 1/4 in. Hex head screw
824182
1
2
3
4
1
2
3
4
5
6
7
