153
FUEL SYSTEM
FUEL COMPONENT SERVICING
7
Tighten screws in stages, starting with the lower
screw.
• First torque is 5 ft. lbs. (7 N·m)
• Second torque is 10 ft. lbs. (14 N·m)
• Final torque is 24 to 26 ft. lbs. (33 to 35 N·m).
Reconnect fuel injector/coil electrical connectors.
Install fuel manifolds. Refer to Fuel Manifold Ser-
vice on p. 149.
Intake Manifold Service
Removal
Disconnect vapor separator vent hose, throttle
position sensor connector, and throttle link arm.
Use Ball Socket Remover Tool, P/N 342226, to
remove throttle link arm.
Remove crankshaft position sensor from reed
plate assembly.
Remove oil filter from retainer.
Remove oil pump bracket screws.
Remove throttle body screws and throttle body
assembly.
Remove gasket from throttle body.
Remove tie straps holding connectors to side of
reed plate assembly.
Remove two screws holding electrical harness
base to reed plate assembly.

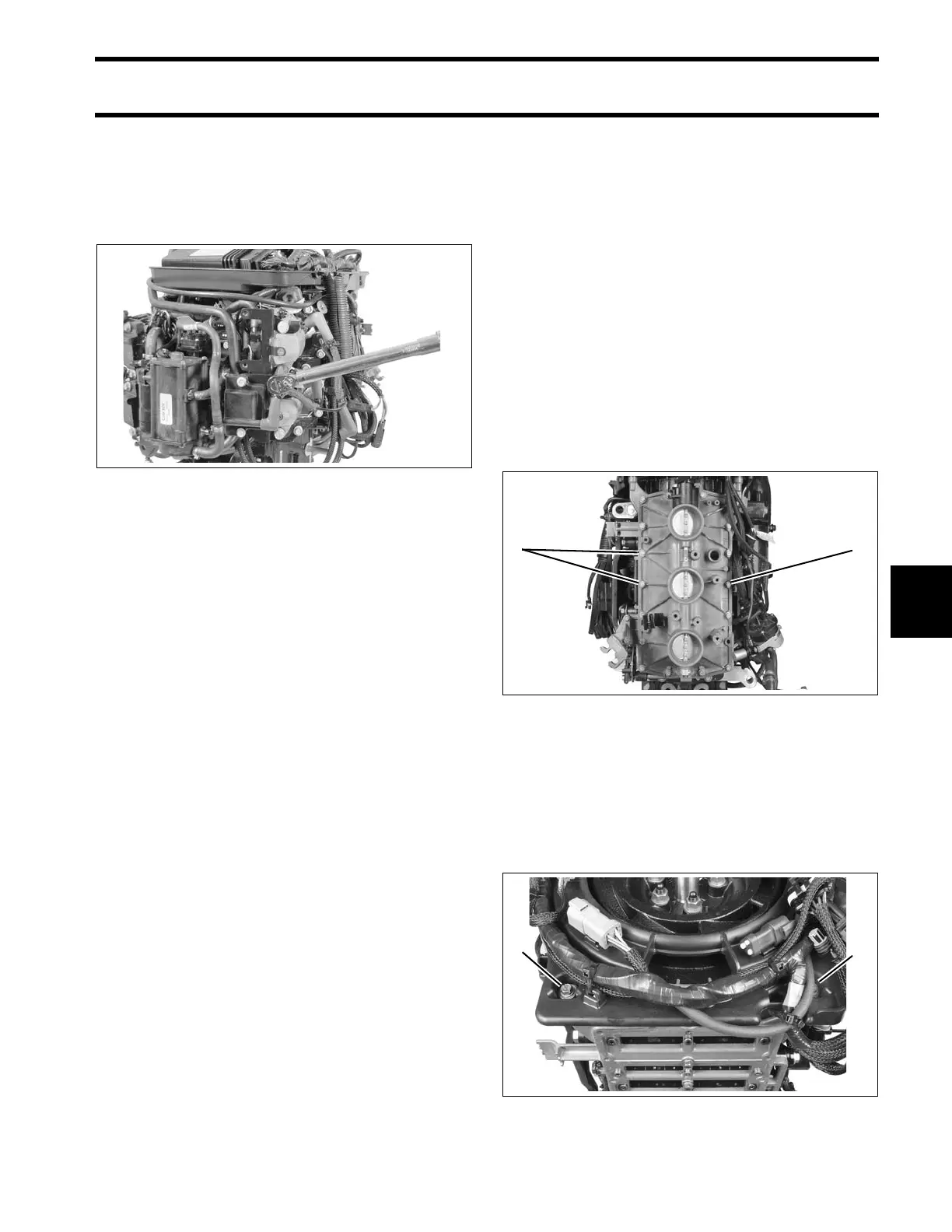

Tighten Screws in Stages 007195
1. Throttle body screws (14 on V4, 18 on V6) 005368
1. Harness base screws 005345
