138
FUEL SYSTEM
COMPONENTS
COMPONENTS
The fuel system includes the following compo-
nents:
• Fuel Lift Pump
• Fuel Filter
• Vapor Separator
• Fuel Circulation Pump
• Fuel Supply Manifolds
• Fuel Injectors
• Fuel Return Manifolds
Fuel Lift Pump
The fuel lift pump is a mechanical, pressure-pulse
pump. The diaphragm of the pump is driven by
two pulse hoses that connect to the cylin-
der/crankcase assembly.
Fuel lift pump pulse hose locations:
• V4 models: Cylinders 2 and 4
• 60° V6 models: Cylinders 4 and 6
Vacuum from the fuel lift pump pulls fuel from the
fuel tank. Once fuel reaches the pump, internal
pump pressure forces the fuel from the pump
through the fuel filter and into the vapor separator.
Fuel Filter
The fuel filter protects the vapor separator and the
high-pressure components of the fuel system from
contaminants. Refer to INSPECTION AND MAIN-
TENANCE SCHEDULE on p. 14 for service fre-
quency.
Vapor Separator
The vapor separator:
• Serves as a water-cooled fuel reservoir to accu-
mulate incoming fuel from the fuel lift pump and
from the fuel return manifold
• Contains a float controlling the venting of fuel
vapors
• Contains a fuel pressure regulator for the high
pressure fuel system.
The vapor separator is serviced as an assembly
and includes the fuel circulation pump.

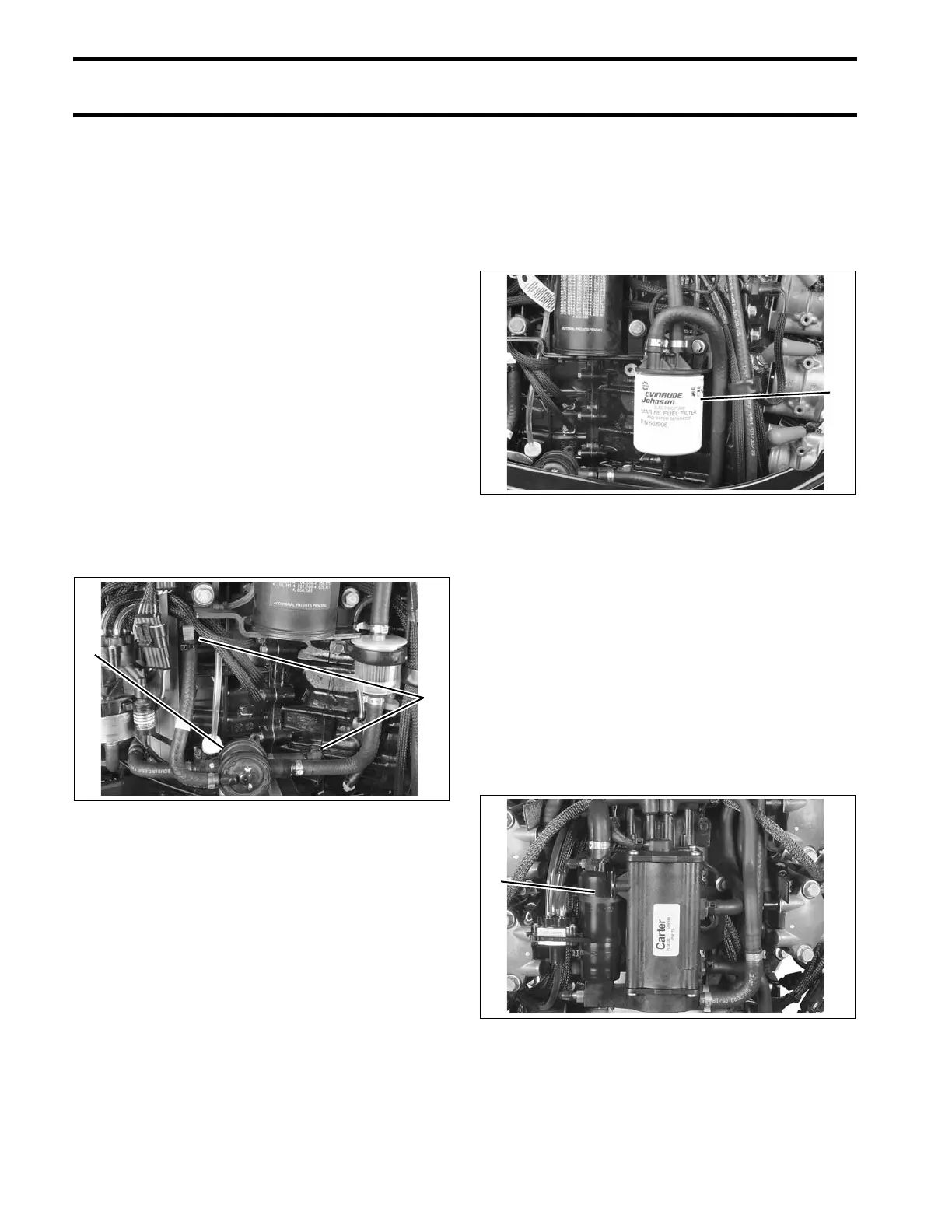

1. Fuel lift pump
2. Pulse hose fittings
005261
1. Water-separating fuel filter 005237
Vapor Separator Assembly
1. Circulation pump
005322
