BRP EVINRUDE E-TEC 150 HP 2011 - ELECTRICAL HARNESS CONNECTIONS

88
ELECTRICAL AND IGNITION

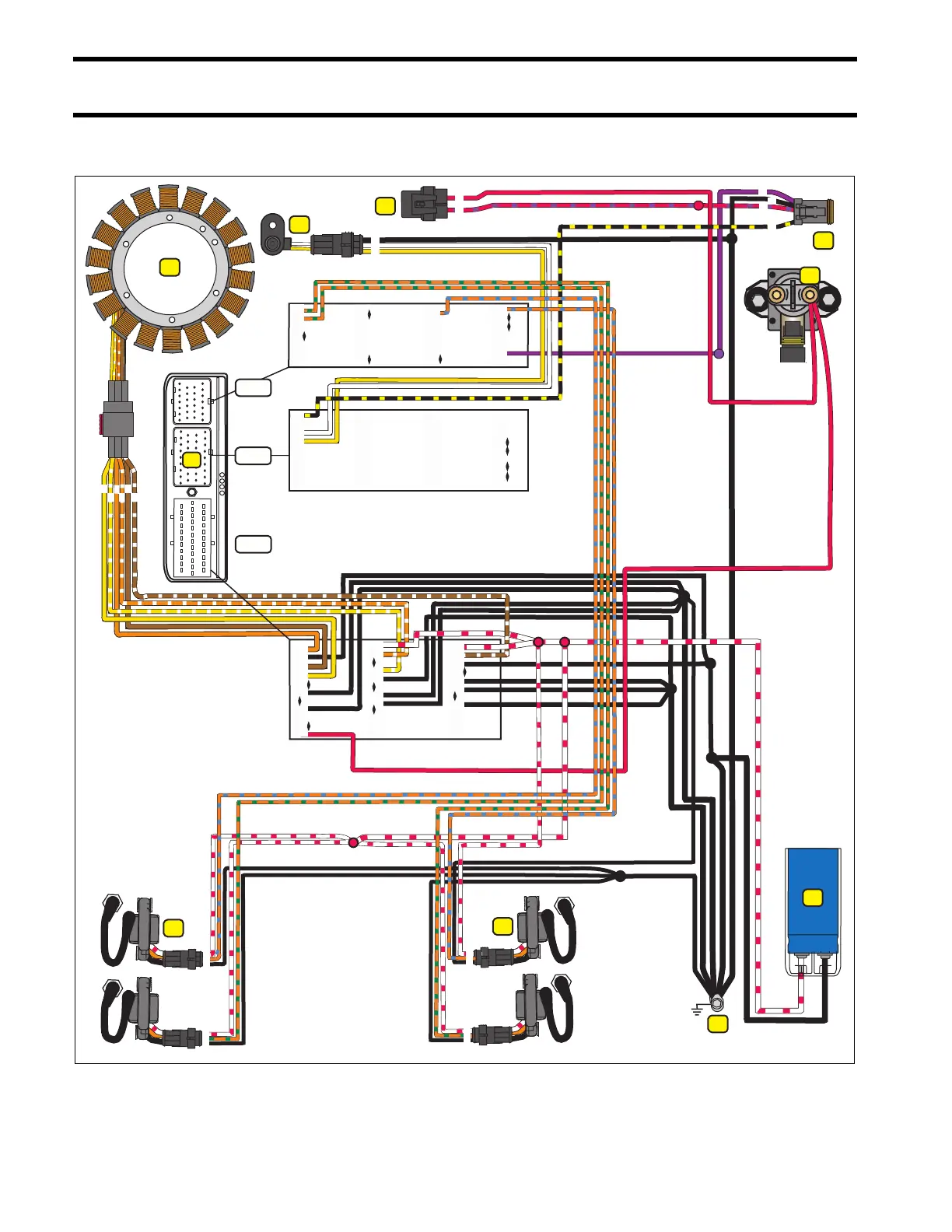

IGNITION SYSTEM CIRCUIT DIAGRAM – V4
IGNITION SYSTEM CIRCUIT DIAGRAM – V4
1.
2.
3.
Key switch (stop circuit)
Fuse
Stator
4.
5.
6.
EMM
Crankshaft position sensor
Capacitor
7.
8.
9.
Ignition coil
Main harness ground
+12 V from battery
007112
