ELECTRICAL AND IGNITION

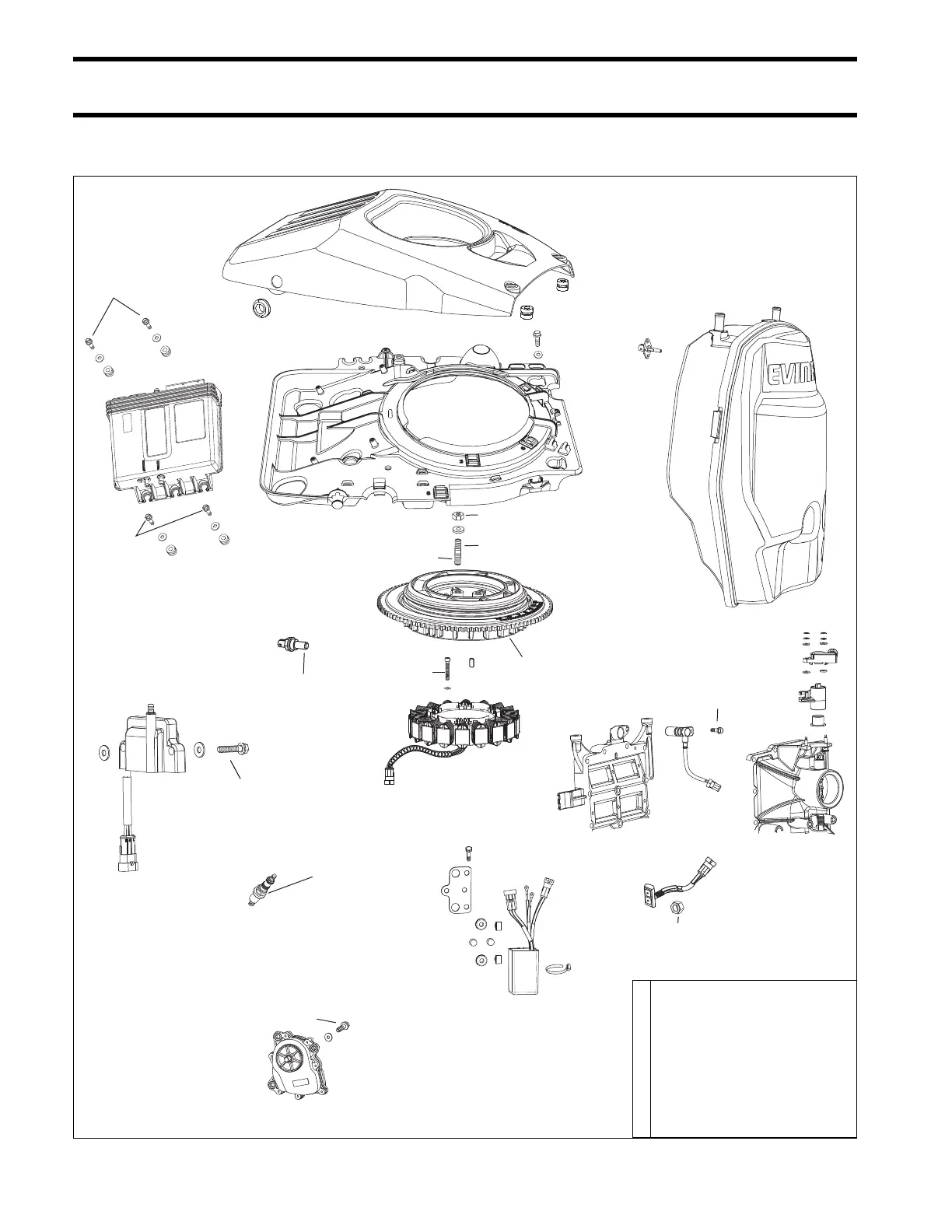

SERVICE CHART
SERVICE CHART
12-16 In. lbs.
(1.5-2 N·m)
24-36 In. lbs.
(2.7-4 N·m)
48 In. lbs.
(5.5 N·m)
F
60-84 In. lbs.
(7-9.5 N·m)
12-16 In. lbs.
(1.5-2 N·m)
J
15-30 Ft. lbs.
(20-41 N·m)
10-16 In. lbs.
(1-2 N·m)
60-84 In. lbs.
(7-9.5 N·m)
A
F, X
E
A, X
60-84 In. lbs.
(7-9.5 N·m)
X
60 to 84 in lbs.
(7 to 9.5 N · m)
50-70 In. lbs.
(5.6-8 N·m)
30-32 Ft. lbs.
(40.5-43 N·m)
A Triple-Guard Grease
B Gasket Sealing Compound
C Adhesive 847
D Moly Lube
E Red Ultra Lock
F Blue Nut Lock
T Liquid Neoprene
X See Service Manual Text
