322
GEARCASE – COUNTER ROTATION
GEARCASE ASSEMBLY
Shift Rod Cover
Refer to Shift Rod Housing Installation on
p. 296.
Pinion Gear and Driveshaft
Installation
Refer to Pinion Gear and Driveshaft Installation
– “O”, “L2”, and “M2” Type on p. 301.
Propeller Shaft Bearing
Housing and Gear Installation –
“O” Type

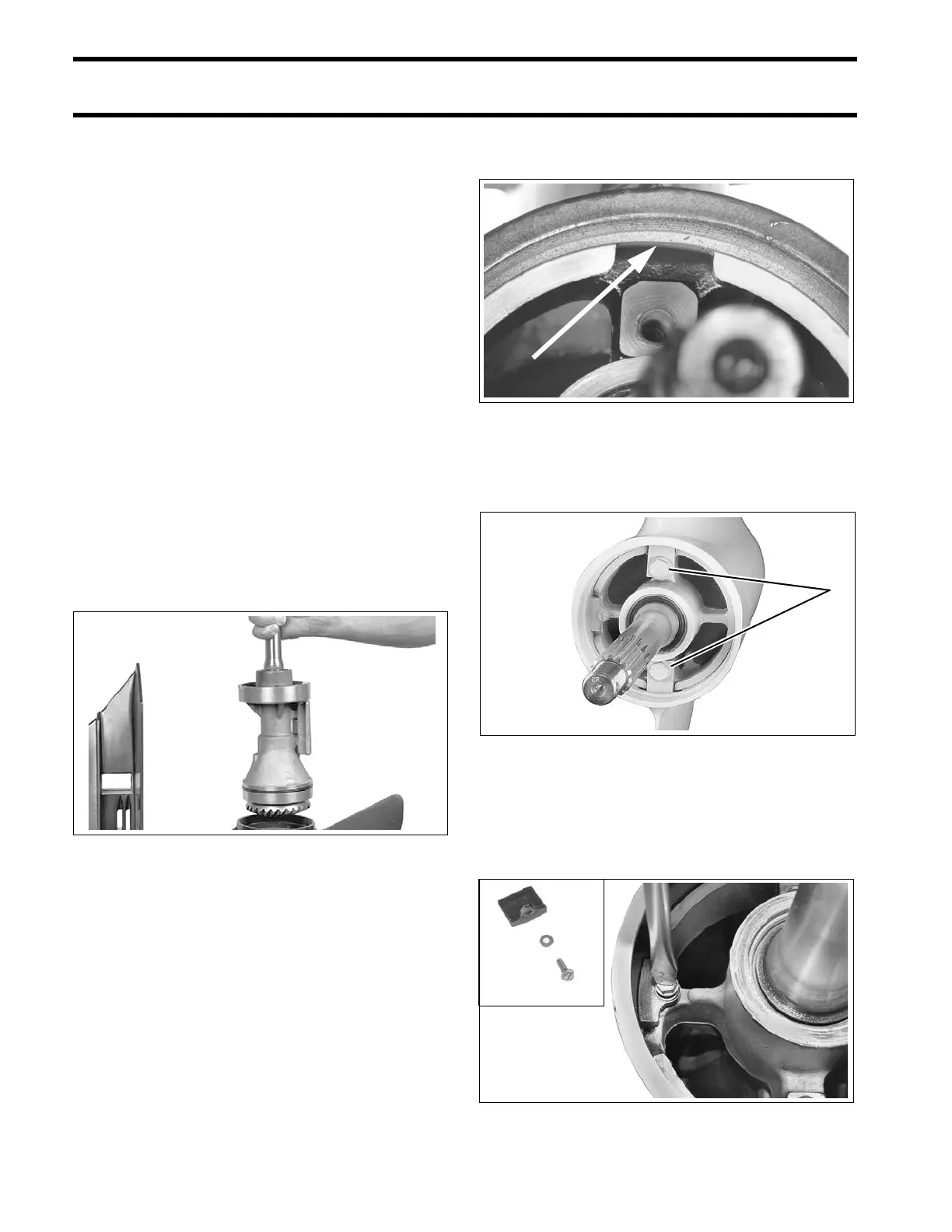

Lightly apply Gasket Sealing Compound to a new
bearing housing O-ring. Install O-ring in groove in
the housing.
Install housing into gearcase. Align screw holes
with retainer slots in gearcase.
IMPORTANT: The propeller shaft must engage
the clutch shaft and the forward gear must fully
engage the pinion gear.
Housing must be completely seated to install
retainer tabs.
Install two retainers, washers and screws. Apply
Ultra Lock to threads and tighten screws to a
torque of 18 to 20 ft. lbs. (24 to 27 N·m).
Loosen retainer screws 1/4 turn.
Install wedge, screw, and washer. Apply Ultra
Lock to threads and tighten screw to a torque of
15 to 20 in. lbs. (1.7 to 2.3 N·m).
13586
Retainer Tab Notch 50106a
1. Retainer tab screws 001989
DSM02291
DSC02361
