199

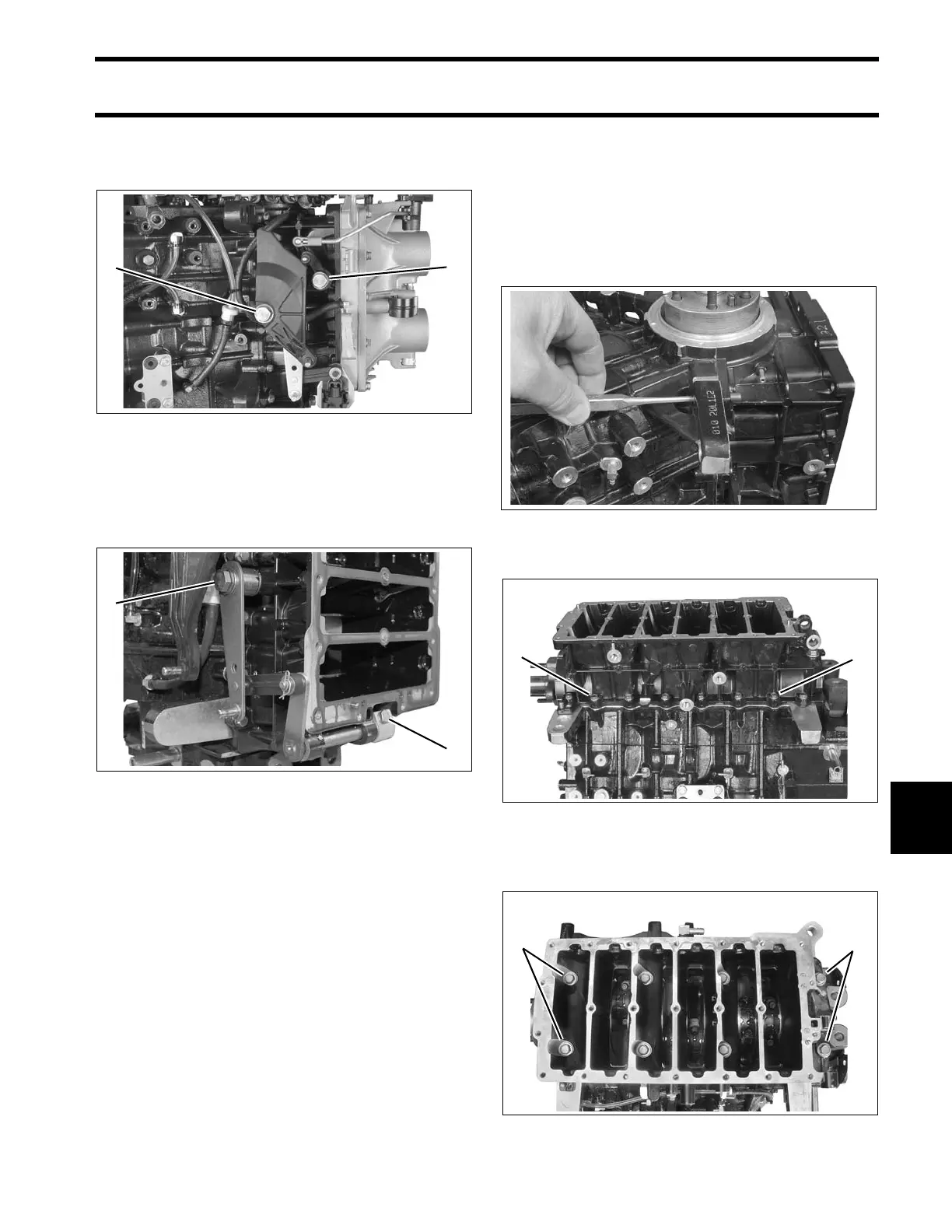

POWERHEAD
POWERHEAD DISASSEMBLY
10
Throttle Linkage Removal
Remove throttle cam and throttle lever.
Shift Linkage Removal
Remove shoulder screw from shift arm and retain-
ing screw from shift rod lever.
Slide entire shift linkage assembly from crank-
case.
Crankcase Disassembly
Use a 1/8 in. diameter pin punch to push crank-
case taper pin toward the front side of the engine.
IMPORTANT: Do not use a tapered punch or
any other tool that could jam in or damage the
taper bore when removing the pin.
Remove crankcase flange screws.
Loosen in stages and remove the main bearing
screws.
1. Throttle cam screw
2. Throttle lever screw
005293
1. Shift arm screw
2. Shift lever screw
008454
005305
1. Flange screws (12 on V4; 16 on V6) 005306
1. Main bearing screws (6 on V4; 8 on V6) 005313
