219
POWERHEAD

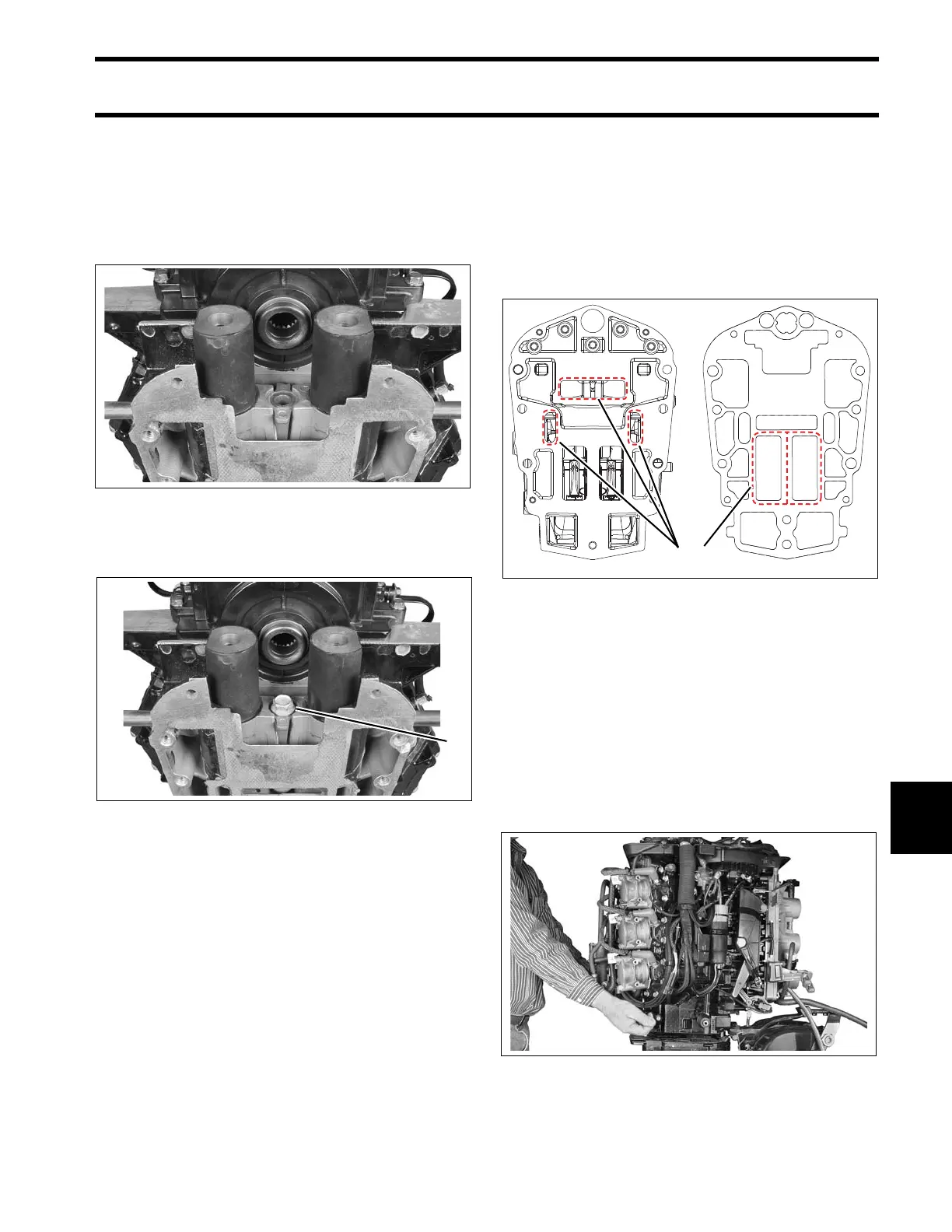

POWERHEAD INSTALLATION
10
Installation
Place mount assemblies in position, with flats fac-
ing away from each other.
Apply Moly Lube to all sides of retainer and install
between mounts.
Install the retainer screw and tighten to a torque of
15 to 20 ft. lbs. (20 to 27 N·m).
POWERHEAD
INSTALLATION
Apply Permatex No. 2 to both sides of a new base
gasket as shown. Install gasket on adapter. To
ensure proper sealing, mating surfaces must be
clean and dry.
IMPORTANT: V4 and V6 base gaskets are NOT
interchangeable. Be sure to use the correct part.
Coat the driveshaft splines with Moly Lube. Do not
apply lubricant to end of driveshaft.
Use Lifting Fixture, P/N 342672, and hoist to
slowly lower powerhead onto exhaust housing. If
necessary, rotate flywheel in a clockwise direction
to align crankshaft and driveshaft splines.
005310
1. Mount retainer screw 005309
1. Apply sealant to exhaust housing (V4)
2. Apply sealant to both sides of gasket
007155
005276
