246
MIDSECTION
EXHAUST HOUSING SERVICE

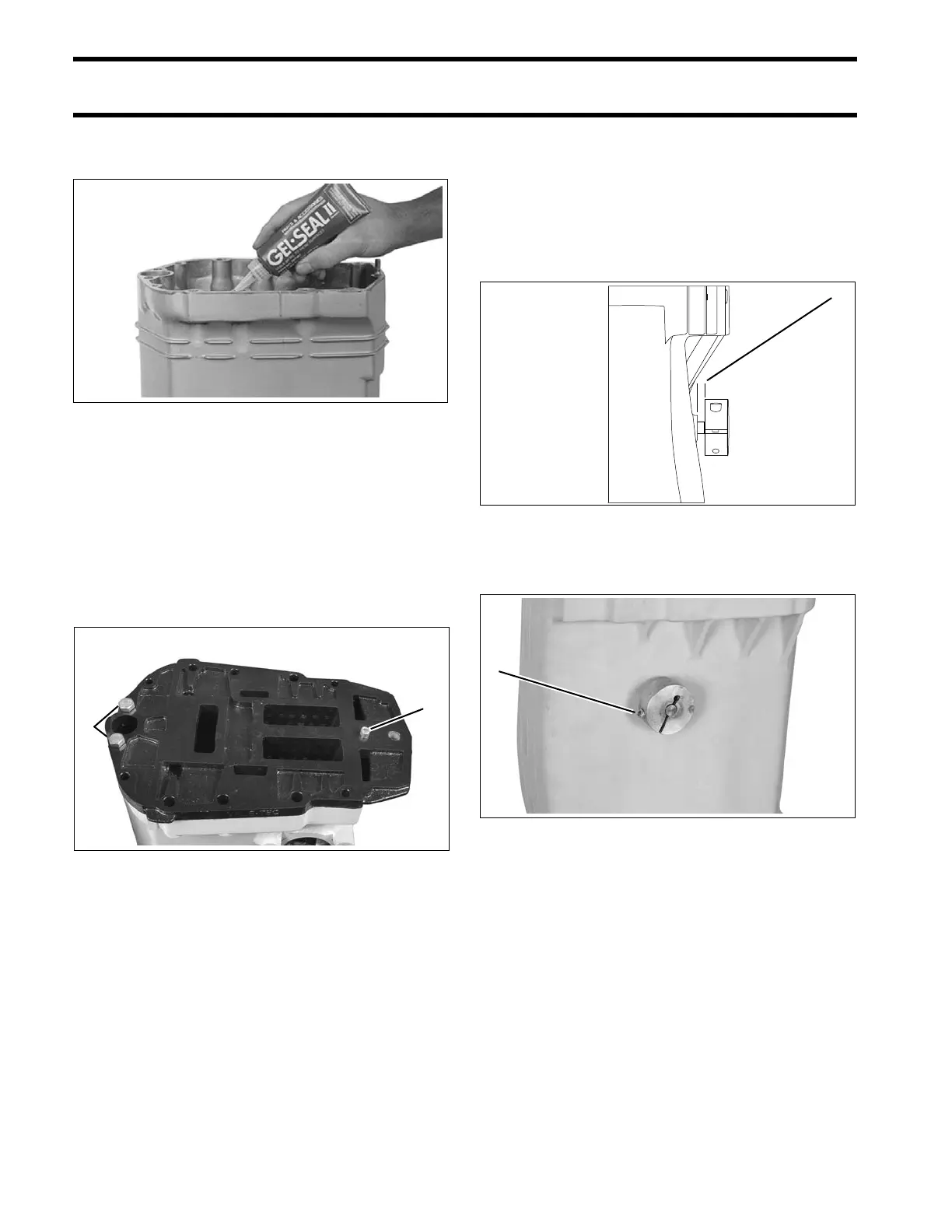

Cleaning Solvent. Apply Gel-Seal II sealant to the
adapter flange of the exhaust housing.
Place the adapter/inner exhaust housing into the
exhaust housing. Guide the water tube through
the hole in the outer housing.
Apply Triple-Guard grease to threads of adapter
retaining screws. Tighten two forward screws to a
torque of 216 to 240 in. lbs. (24.5 to 27 N·m) and
rear screw to a torque of 60 to 84 in. lbs. (7 to 9.5
N·m).
Exhaust Housing Assembly –
V4 Models
Install the collar on shaft.
Use a 0.030 in. (0.762 mm) feeler gauge to set the
gap between the collar and exhaust housing as
shown.
Tighten screw to a torque of 60 to 84 in. lb. (18 to
20 N·m).
13692
1. Adapter retaining screws 005205
1. Set gap to 0.030 in. (0.762 mm) 007192
1. Screw 007185
