MIDSECTION
EXHAUST HOUSING SERVICE
11

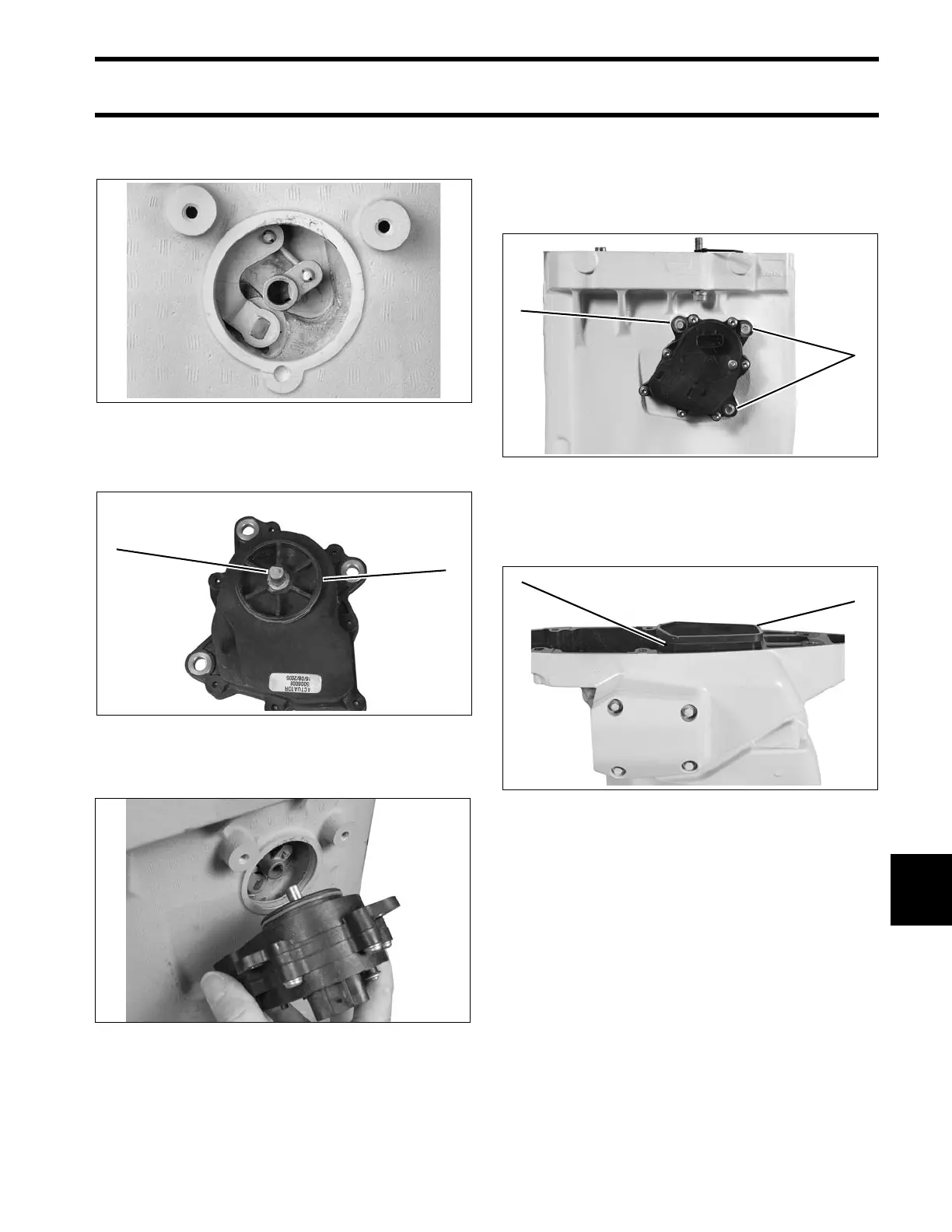

Check that exhaust valve linkage is oriented as
shown.
Apply a small amount of Triple-Guard grease to
the actuator shaft and o-ring.
Carefully engage actuator shaft in linkage lever.
Rotate and push actuator into position. Apply Tri-
ple-Guard grease to screw threads.
Install screws and washers. Tighten screws to 60
to 84 in. lbs. (7 to 9.5 N·m).
Apply Adhesive 847 to the bottom flange of the
exhaust housing. Install a new seal. Apply Triple-
Guard grease to outer seal surface.
007184
1. Shaft
2. O-ring
005209
007183
1. Actuator screws 007182
1. Adhesive 847
2. Triple-Guard grease
007181
