OILING SYSTEM
OIL CONTROL SETTINGS
OIL CONTROL SETTINGS
Oil Injection Rate
The Engine Management Module (EMM) controls
the oil injection rate based on engine RPM. This
rate can be adjusted for the type of oil being used,
and also for powerhead break-in. Use Evinrude
Diagnostics software to access these features.
The Set Oil Type option controls the injection rate
for the oil being used and typical operating condi-
tions.
The TC-W3 oil type setting is the standard setting
for all outboards. Set TC-W3 for:
• Operation with all TC-W3 outboard oils includ-
ing XD30, XD50, or XD100.
• Applications requiring maximum lubrication.
• Extreme applications (commercial or harsh con-
ditions, racing or other high performance opera-
tion).
• Use this setting with XD100 outboard oil in
extreme applications
The XD100 setting provides an option to run the
outboard at a reduced oil injection rate. This set-
ting REQUIRES the use of Evinrude XD100 out-
board lubricant and is not recommended for all
applications.
IMPORTANT: The XD100 setting is not avail-
able on all models.
Use the XD100 setting for:
• Conventional use (runabouts, cruisers)
• Moderate applications
Powerhead oil programming labels are provided
to identify EMM oil programming. Install the cor-
rect label to alert user to specific oil requirements.
An XD100 Outboard Oil Decal, P/N 352369, is
available to label boats equipped with outboards
that have been programmed for the reduced oil
injection ratio.

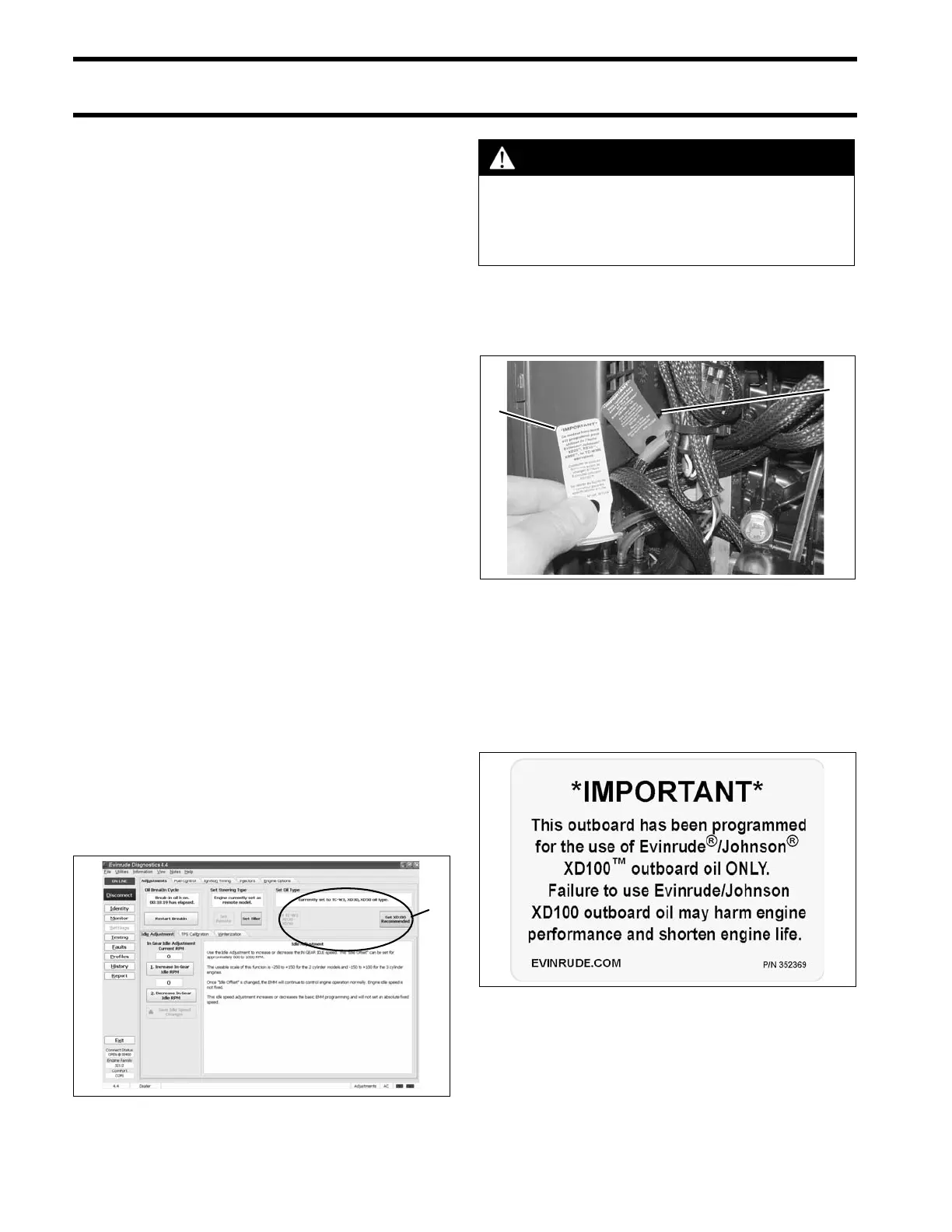

1. Oil control setting 008084
CAUTION
Running an Evinrude E-TEC outboard on
other grades of oil while set to the XD100
oil ratio will result in increased engine
wear and shortened outboard life.
1. Evinrude/Johnson XD30 outboard lubricant (TC-W3)
YELLOW label
2. Evinrude/Johnson XD100 outboard lubricant (Premium)
BLUE label (Installed)
004964
XD100 Outboard Oil Decal 004522
