296
GEARCASE – STANDARD ROTATION
GEARCASE ASSEMBLY

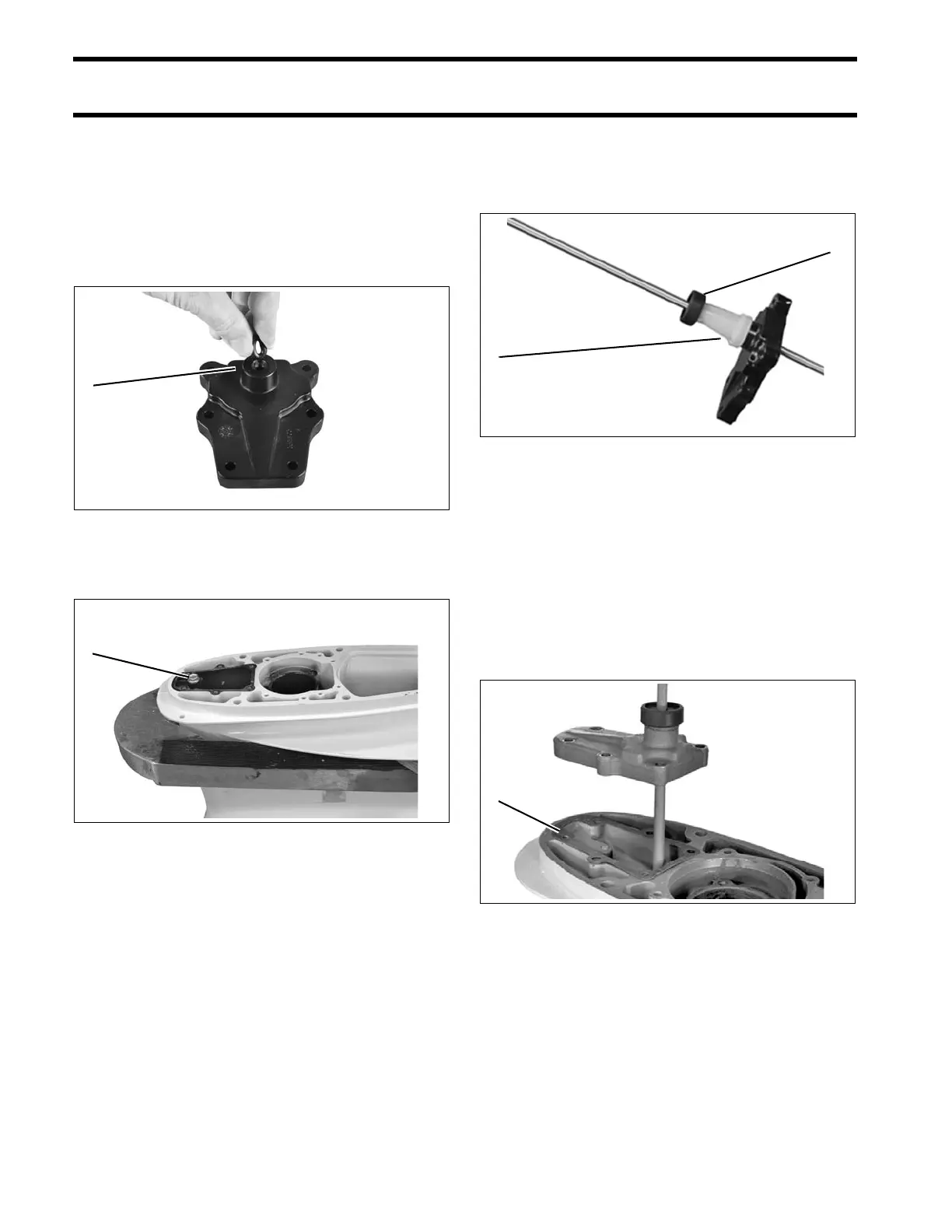

Shift Rod Housing Installation
Lubricate a new shift rod cover O-ring with Triple-
Guard grease. Install the O-ring into the shift rod
cover.
IMPORTANT: Make sure O-ring is fully seated
in groove.
Install pitot tube screw and seal in housing. (“S2”
and “O”)
Install the shift rod spacer on the shift rod (25 in.
models).
Place the shift rod grommet on the shift rod.
Apply Triple-Guard grease to the threaded end of
the shift rod and insert it through the cover. Turn
the shift rod while pushing it through the cover to
avoid damaging the O-ring.
“S2”, “O”, AND “L2” TYPE GEARCASES
Apply Gasket Sealing Compound to both sides of
a new shift rod cover gasket. Place the gasket on
the gearcase.
1. O-ring 006916
1. Screw and seal 006841
1. Grommet
2. Shift rod spacer
006917
1. Cover gasket COA3141
