23
ROUTINE SERVICE
OUTBOARD RIGGING CONNECTIONS
2
Water Pressure Gauge
To display engine water pressure, install a water
pressure hose fitting in the cylinder block as
shown.
Use Pipe Sealant with Teflon on the threads of the
hose fitting. Refer to installation instructions sup-
plied with gauge.
Route the water pressure hose around the star-
board side of the powerhead along the same path
as the battery cables.
For an I-Command water pressure display, sev-
eral water pressure sensor kits are available.
Refer to the Evinrude/Johnson Genuine Parts
and Accessories catalog.
To send water pressure data to the EMM, along
with an I-Command display, install Water Pressure
Transducer Kit, P/N 5008300.
Connect the transducer lead to the engine wiring
harness connector.

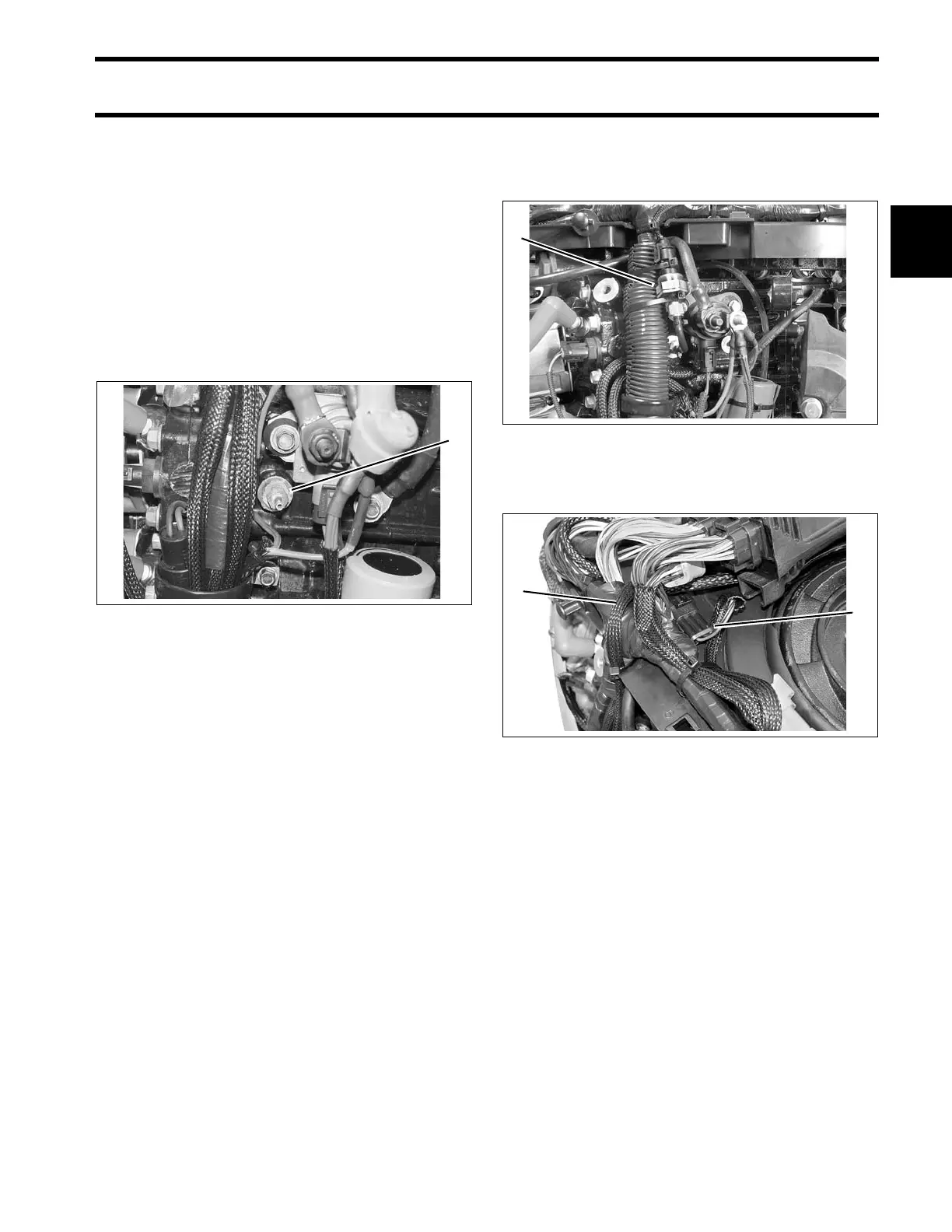

1. Water pressure hose fitting 004959
1. Water pressure transducer 008129
1. Water pressure transducer lead
2. Engine harness connector
004962
