197
POWERHEAD

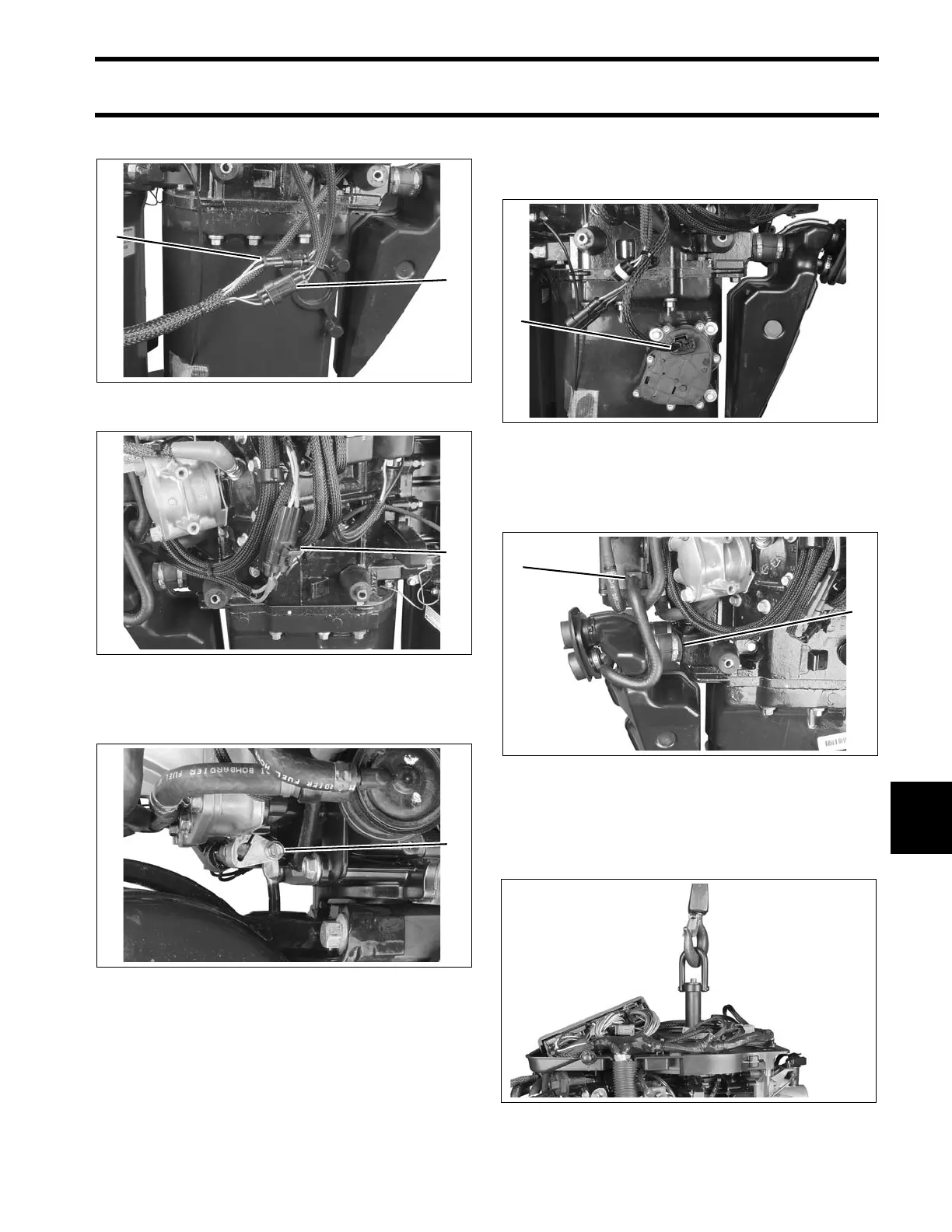

POWERHEAD REMOVAL
10
Disconnect power trim connectors.
Remove pin and washer from shift rod lever to
release the lower shift rod.
Disconnect electrical harness from exhaust valve
actuator (V4 models). It is not necessary to
remove actuator from exhaust housing.
Disconnect water overflow hose from vapor sepa-
rator. Remove clamps and muffler assembly from
rear of powerhead.
Install Lifting Fixture, P/N 342672, on crankshaft.
Tighten mounting screw securely using an Allen
1/4 in. hexagonal wrench.
1. Tilt limit switch connector
2. Sending unit connector
005254
1. Tilt relay connector 005255
1. Shift rod pin 005253
1. Actuator connector 005247
1. Overflow indicator hose
2. Muffler clamps
005243
005260
