213
POWERHEAD
POWERHEAD ASSEMBLY
10

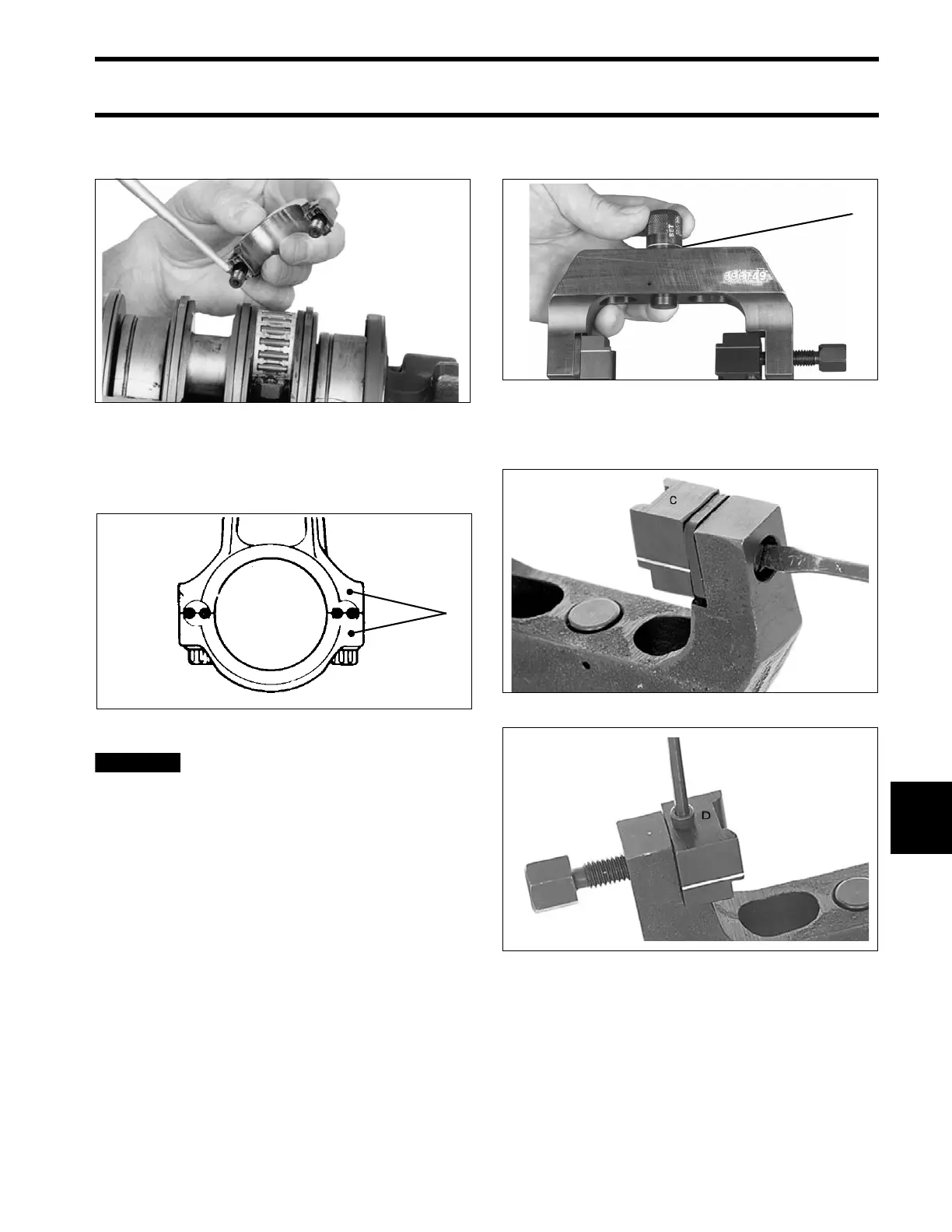

Install rod cap screws finger tight (NO MORE than
6 in. lbs. (1 N·m) maximum).
IMPORTANT: Be sure alignment dot on rod cap
matches dot on rod and that both dots face fly-
wheel.
Tightening rod cap screws without
Alignment Fixture, P/N 396749, or using an
incorrect procedure could cause permanent
damage to the connecting rod and crankshaft.
To maintain accurate torque values, keep
torque wrench extension length to a minimum.
Install Rod Cap Alignment Fixture, P/N 396749,
before tightening rod cap screws. Align the flat
marked “SET” on the rod adjustment stop with the
arrow on the frame. Position stop at the center
setting (one line showing). Rotate adjustment
knob 180° to lock in position.
Secure restraining jaw “C” and forcing jaw “D” to
frame.
49080
1. Alignment dots 53628
1. Center position, one line showing 002484
Restraining Jaw “C” 21591c
Forcing Jaw “D” 21594c
