249
MIDSECTION
STERN BRACKET
11

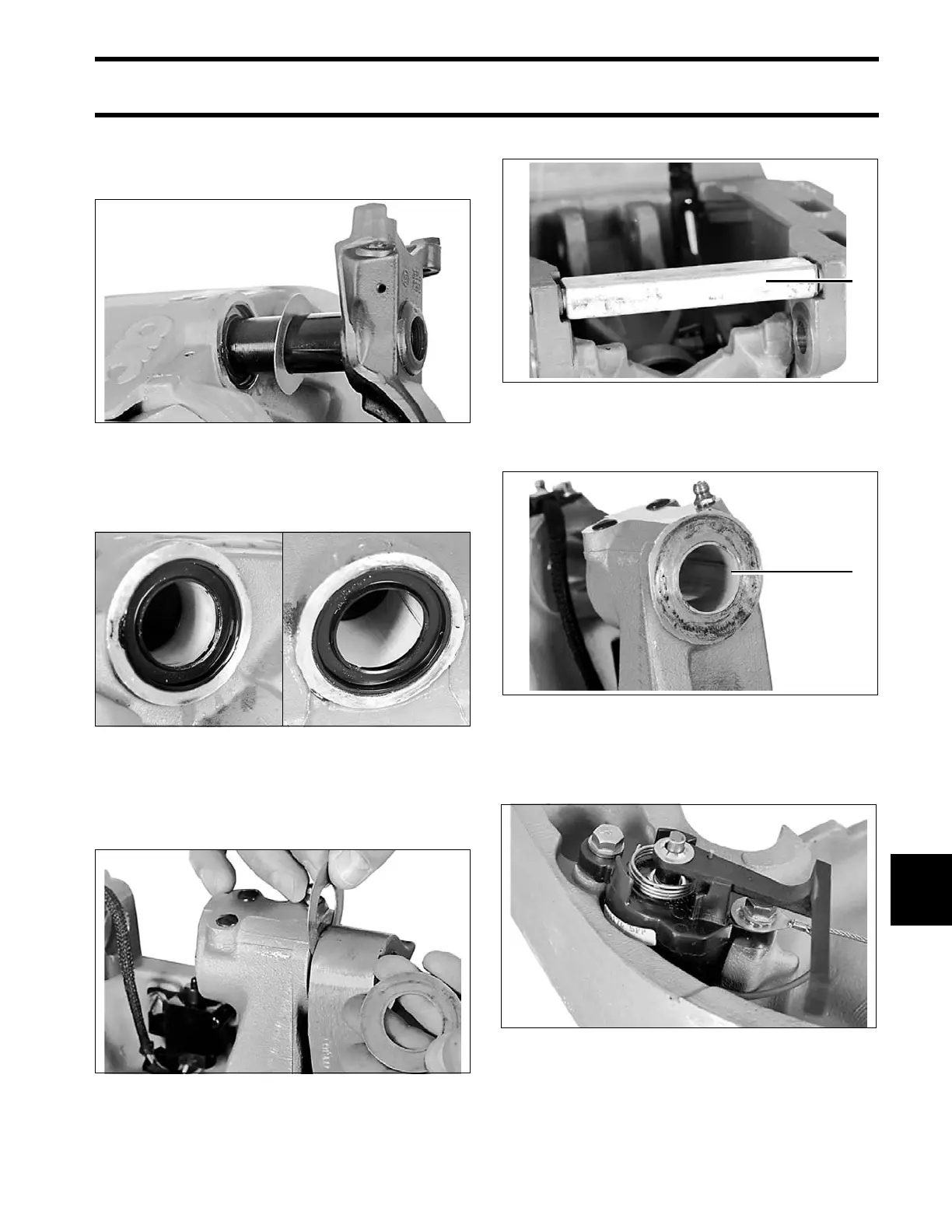

Remove the steering shaft and thrust washer. It
may be necessary to tap the steering shaft out
using a wood dowel and mallet.
Pry out upper and lower steering shaft seals and
discard. Remove the upper and lower steering
shaft bushings.
Remove the tilt tube. Refer to TILT TUBE on
p. 240.
Remove the two tilt tube washers.
Remove the anode.
Remove the swivel bracket. Inspect and, if neces-
sary, replace the tilt tube bushings.
Remove the trim sender unit from the port stern
bracket and pull its wires through the braided
tube.
30735
30765 / 30764
30763
1. Anode 30762
1. Tilt tube bushing 30761
30760
1
1
