BRP EVINRUDE E-TEC 150 HP 2011 - Page 264

262
GEARCASE
SERVICE CHARTS

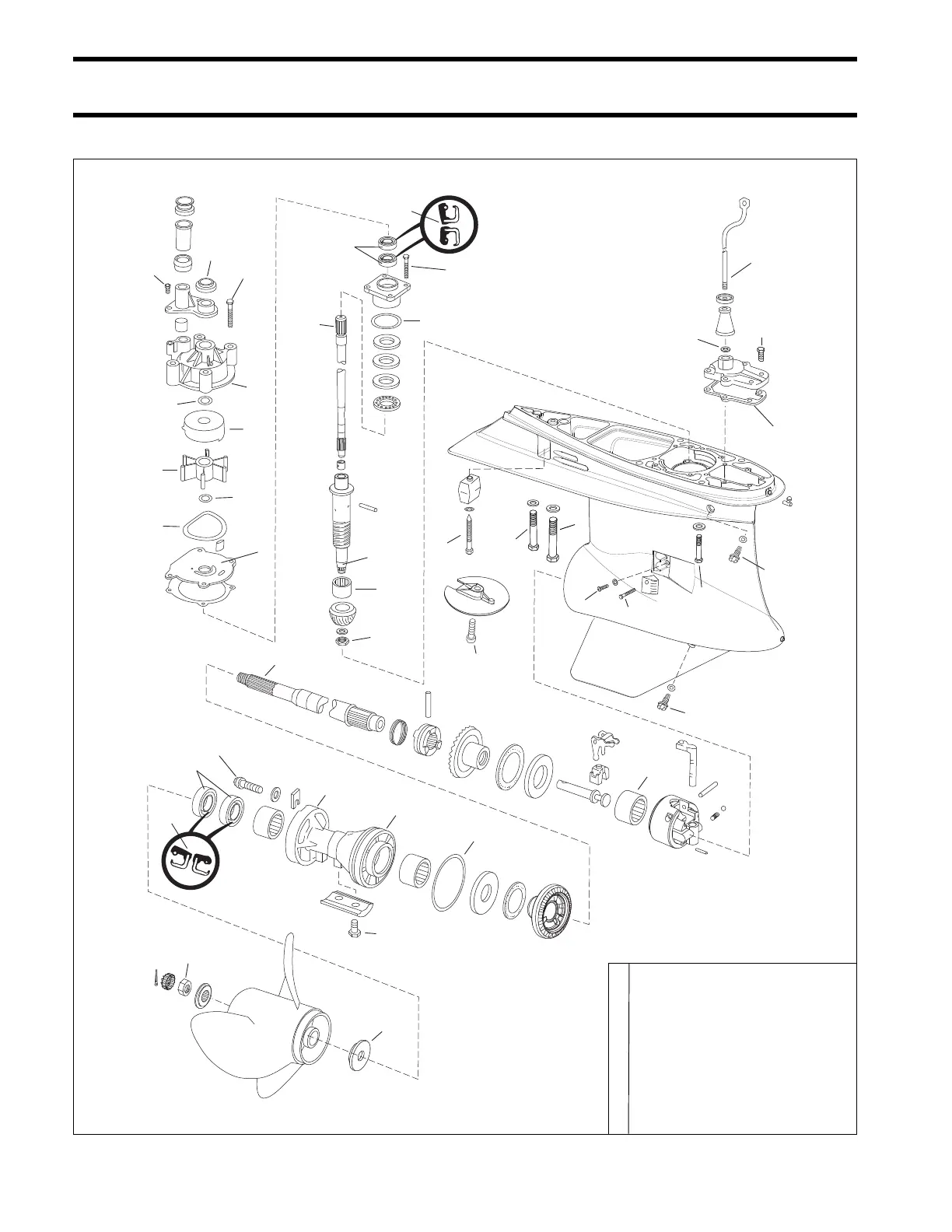

V6 PERFORMANCE MODELS “L2”–TYPE GEARCASE
24-36 In. lbs.
(3-4 N·m)
C
B
60-84 In. lbs.
(7-9.5 N·m)
A
A
B
A
A
G
J
100-110 Ft. lbs.
(136-149 N·m)
B
A
B
120-144 In. lbs.
(13.5-16.5 N·m)
B
D
X
A
B
B
60-84 In. lbs.
(7-9.5 N·m)
A
14-18 In. lbs.
(1.5-2 N·m)
60-84 in. lbs.
(6.8-9.5 N·m)
B
A
26-28 Ft. lbs.
(35-38 N·m)
45-50 Ft. lbs.
(61-68 N·m)
A
A
35-40 Ft. lbs.
(47-54 N·m)
60-84 In. lbs.
(7-9.5 N·m)
A
26-28 Ft. lbs.
(35-38 N·m)
60-84 In. lbs.
(7-9.5 N·m)
18-20 Ft. lbs.
(24-27 N·m)
A
G
A
B
B
108-132 In. lbs.
(12-15 N·m)
B
B
E
18-20 Ft. lbs.
(24-27 N·m)
A
C
A
70-80 Ft. lbs.
(95-109 N·m)
A
006829
A Triple-Guard Grease
B Gasket Sealing Compound
C Adhesive 847
D Moly Lube
E Red Ultra Lock
F Blue Nut Lock
G Needle Bearing Grease
J Gearcase Lubricant
X See Service Manual Text
