GEARCASE
WATER PUMP SERVICE
On V6 models, install the water tube grommet with
the inside taper facing up.
On V6 models, apply Triple-Guard grease to
screw threads and install the impeller housing
cover. Tighten screws to a torque of 24 to 36 in.
lbs. (3 to 4 N·m).
On all models, apply Adhesive 847 to flat side of
the impeller housing grommet. Install the grom-
met, flat side down. Apply Triple-Guard grease to
the outer surface of the water tube grommet on V4
models.
Lightly coat the inside of the liner with Triple-
Guard grease. With a counterclockwise rotation,
install the impeller into the liner with the slot for the
impeller key facing out.
Apply a thin bead of Adhesive 847 in the seal
groove, and install the special shaped O-ring seal.
Apply Gasket Sealing Compound to both sides of
a new impeller plate gasket. Install the gasket and
impeller plate.

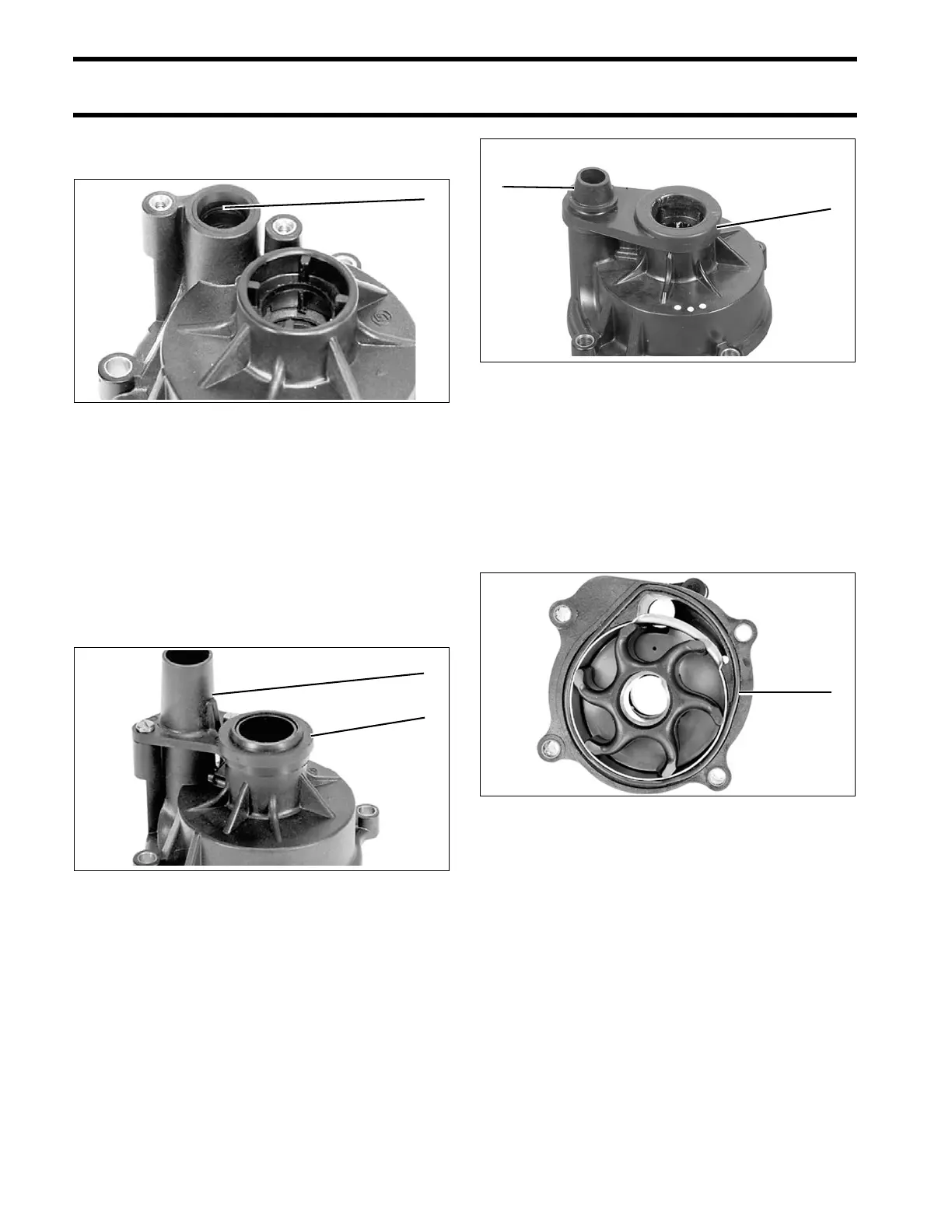

1. Water tube grommet 32000
V6 models
1. Impeller housing cover
2. Impeller housing grommet
32001
V4models
1. Impeller housing grommet
2. Triple-Guard grease
32001
1. O-ring 34815
