304
GEARCASE – STANDARD ROTATION
GEARCASE ASSEMBLY

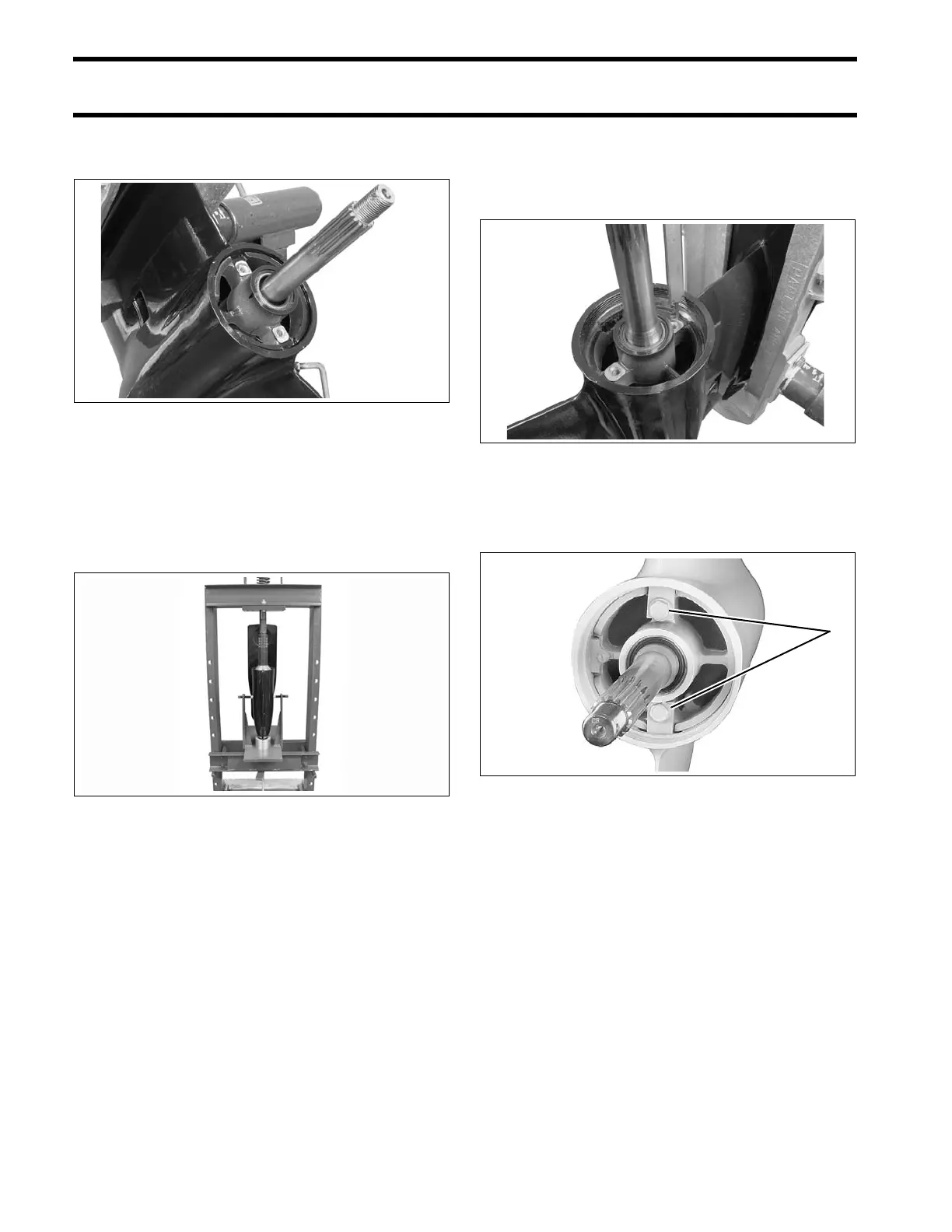

Install housing into gearcase. Align screw holes
with retainer slots in gearcase.
Use Installer Handle, P/N 345822, Propeller Shaft
Bearing Housing Installer, P/N 354058, Gearcase
Fixture, P/N 354059 and an appropriate floor
press (10 ton or greater) to install housing into
gearcase. Align and level gearcase assembly in
fixture as shown. Secure fixture to floor press.
Housing must be completely seated in gearcase
to install retainer tabs. Depth to retainer tab sur-
face on bearing housing is approximately
1 in. (25.4 mm).
Install two retainers, washers and screws. Apply
Ultra Lock to threads and tighten screws to a
torque of 18 to 20 ft. lbs. (24 to 27 N·m).
006836
006844
006845
1. Retainer tab screws 001989
