TRIM AND TILT
TRIM AND TILT REPLACEMENT
13

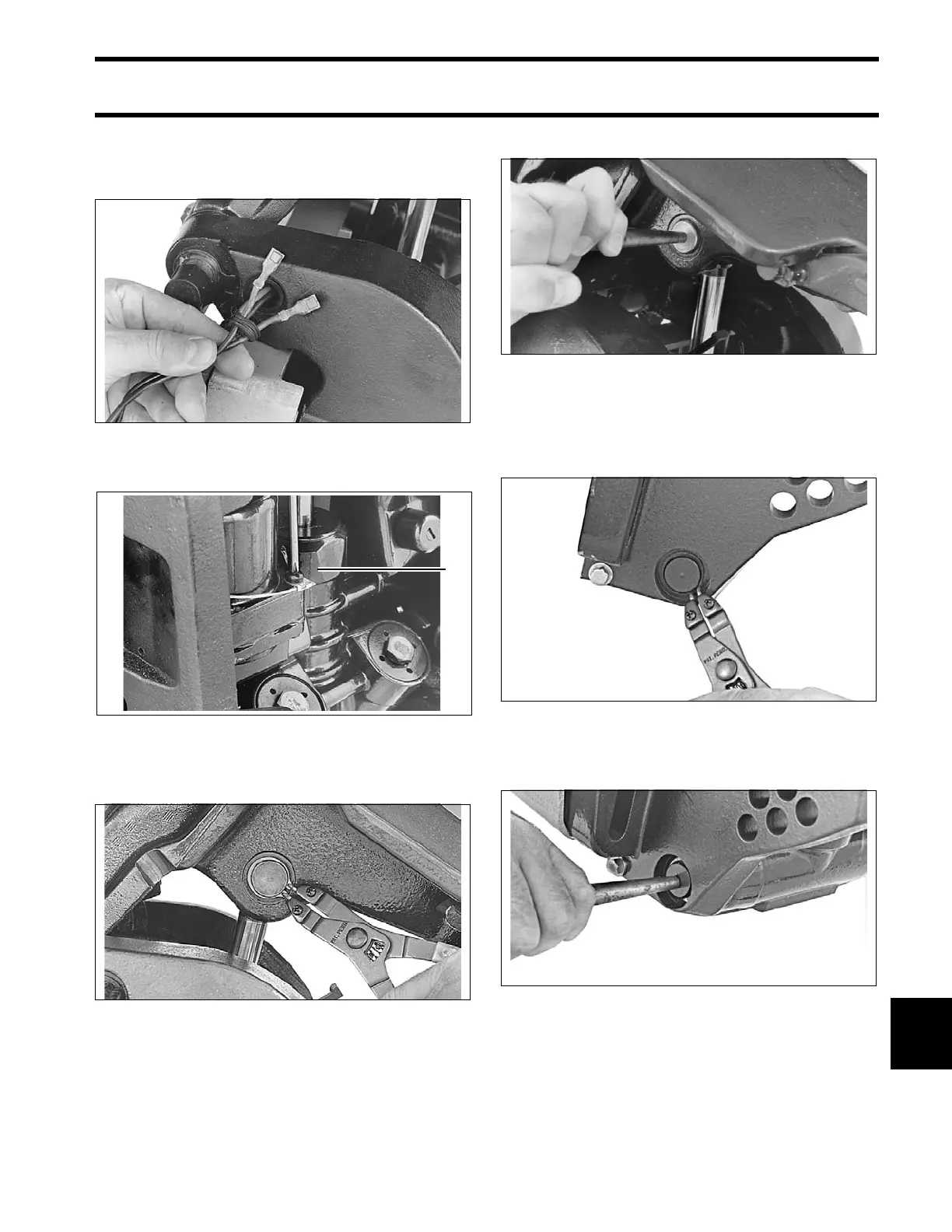

Separate the trim/tilt unit wires in the braided tube
to permit removal through the hole in the stern
bracket.
Remove the ground wire from the trim/tilt unit.
Remove the external snap rings from the upper
pin.
Use a punch to remove the upper pin.
Retract the tilt cylinder rod.
Remove the external snap rings from the lower
pin.
Use a punch to remove the lower pin and remove
the trim/tilt unit from the stern brackets.
25078
1. Ground wire 25057
25064
25065
25077
25076
