349
TRIM AND TILT
SERVICING – THREE PISTON SYSTEM
13

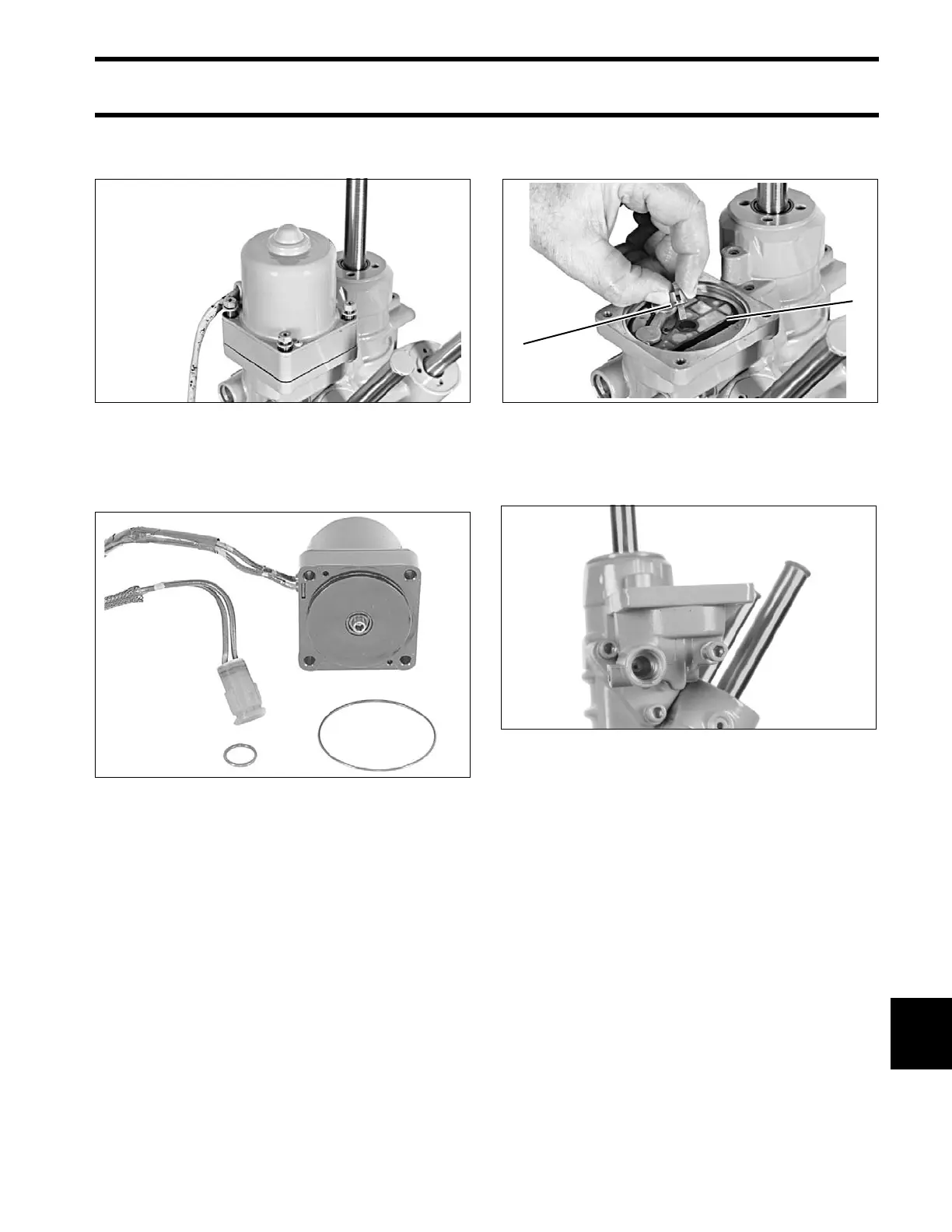

Remove the four screws securing motor to pump
manifold assembly.
Remove the wire shield from the pump manifold.
Remove the motor and inspect the motor O-ring
and the O-ring on the cable connector.
Remove and inspect the coupler. Remove the fil-
ter screen from the pump manifold. Check the
machined surfaces on the manifold for nicks and
scratches. The pump manifold is not serviceable.
Do not remove the pump or any control valves
from the manifold. Clean the screen with a mild
solvent and inspect it for tears, clogging, or other
damage.
Remove the three Allen head screws securing the
pump manifold assembly to cylinder body.
IMPORTANT: Individual parts in the pump mani-
fold assembly are not available separately. Do not
remove pump or any control valves from the body.
41760
22878
1. Coupler
2. Filter screen
41763
41798
