ENGINE MANAGEMENT MODULE (EMM)
EMM SERVICING
4

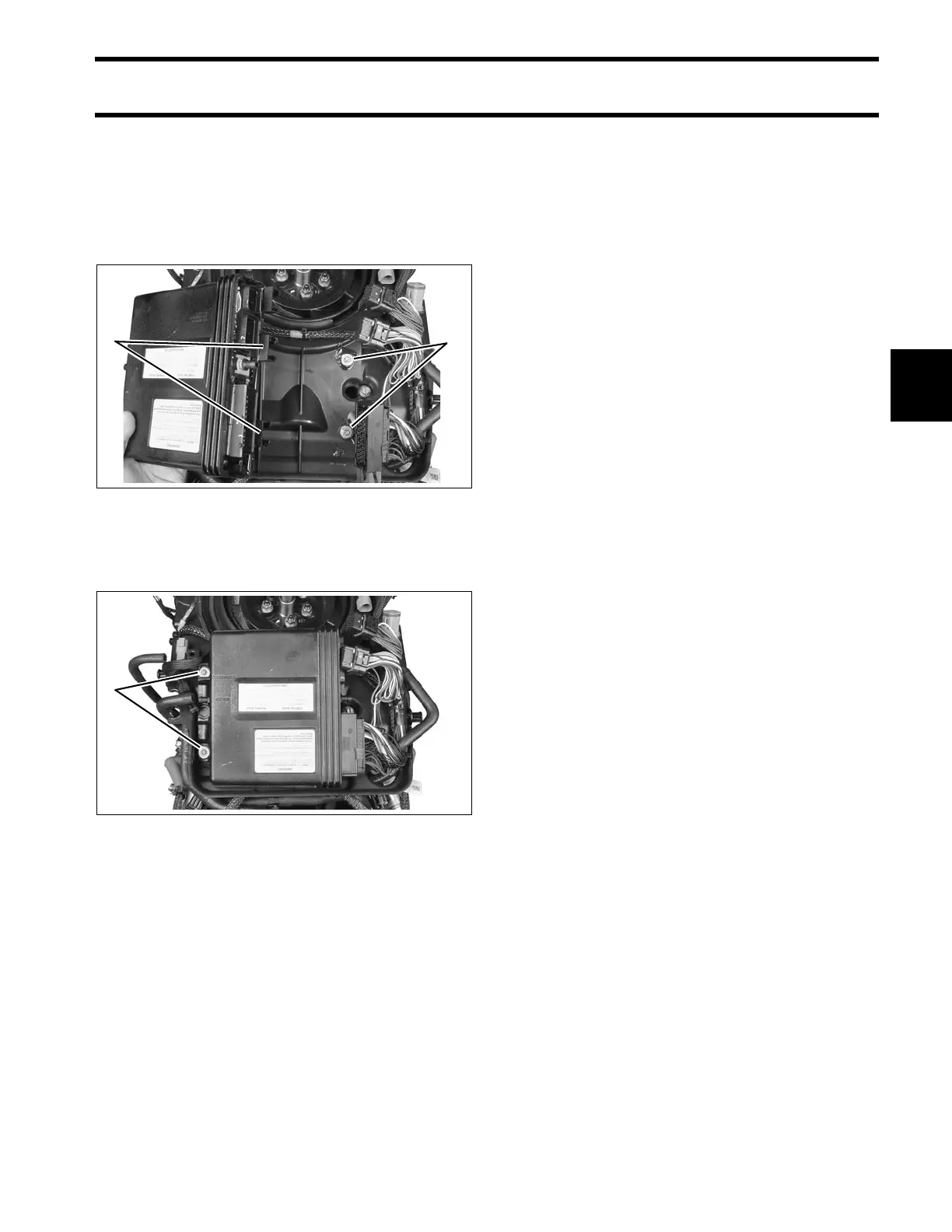

Installation
Install J2 connector
Align slots in starboard side of EMM case with iso-
lator mounts on electrical harness base. Slide
EMM into position.
Install two EMM retaining screws. Tighten screws
12 to 16 in. lbs. (1.5 to 2 N·m).
Install J1-A and J1-B connectors.
Install exhaust pressure hose and cooling hoses.
Secure with tie straps.
1. EMM mounting slots
2. Isolator mounts
005377
1. EMM mounting screws 005375
