Connecting
CryoProbe Installation BRUKER 47 (93)
j.4 Mount the Vacuum Adapter to the CryoProbe bottom such that it
points to the front. Connect the vacuum tube.
j.5 Push in the actuator screw of the Vacuum Adapter (black handle) in as
far as it will go (Figure 3.15.
).
j.6 Turn the actuator screw clockwise. Its thread must grip into the thread
of the CryoProbe’s vacuum plug. Continue gently until the stop is
reached but do not force it into the stop.

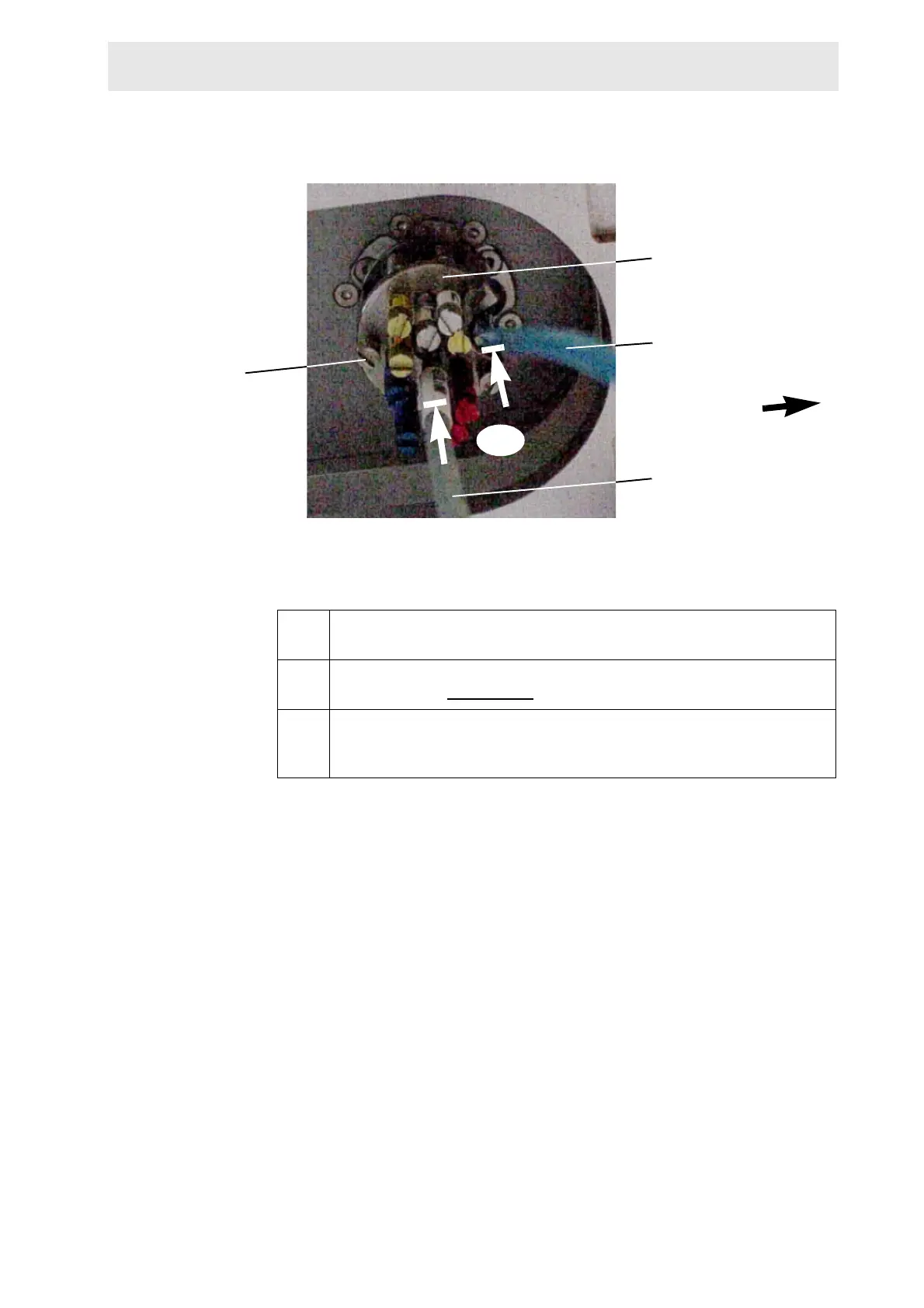

Figure 3.14. Connecting VT sensor cable and VT hose (bottom view)
VT hose
VT sensor cable
CryoProbe
front
Tuning Adapter
one of three
fixing screws
j.3
